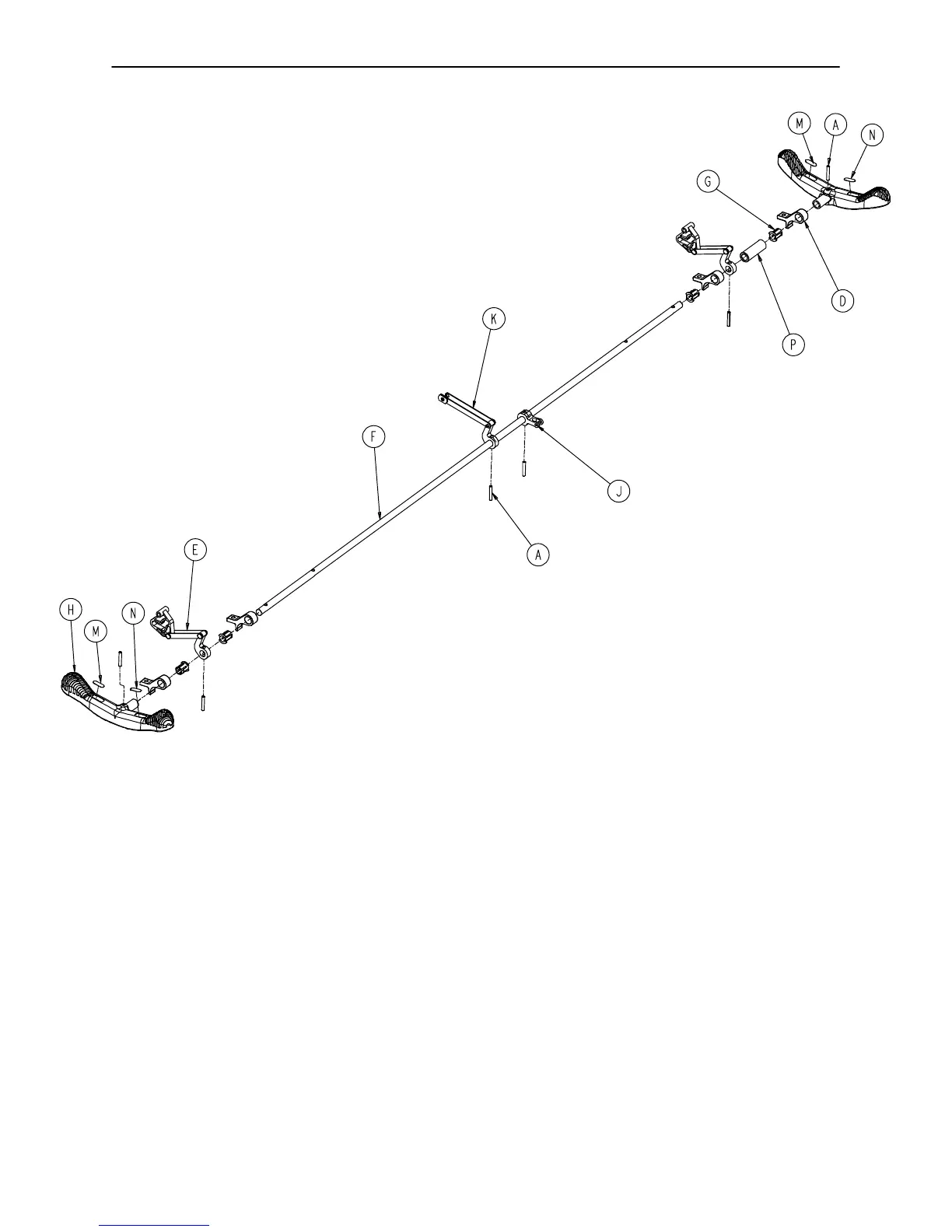

Brake Rod Assembly
31
Assembly part number 0753−003−125 (reference only)
Item Part No. Part Name Qty.
A 0026−067−000 Slotted Spring Pin 6
D 0753−003−004 Brake Rod Support 4
E(page 25) Drive Link Assembly 2
F 0753−003−014 Brake Rod 1
G 0753−003−015 Brake Rod Nyliner 4
H 0753−003−099 Butterfly “V” Pedal 2
J 0753−003−112 Side Control Link 1
K(page 26) Drive Link Assembly 1
M 1210−201−335 Red Brake Label 2
N 1210−201−336 Green Steer Label 2
P 0753−003−133 Retainment Spacer 1
