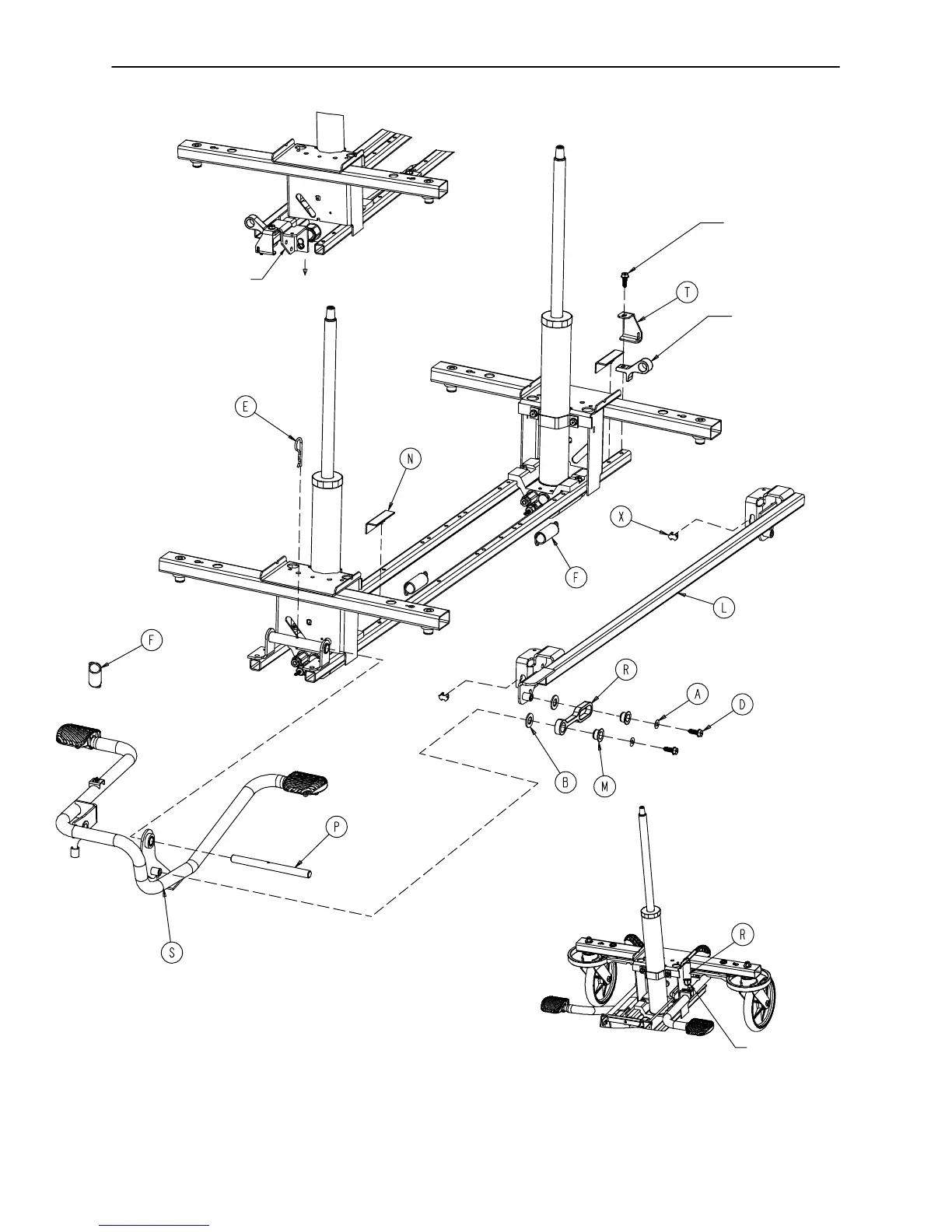

Base with Dual Side Hydraulics (Fifth Wheel Base)
32
Insert pump ram into keyhole
slot on both ends. Lower pump
connecting rod weldment onto
Assembly part number 0753−005−100 (reference only)
0023−288−000
0753−003−004
pump ram as shown
Insert spring hook thru
slots in pump pedal
Attach other end onto
jack tower as shown
HEAD END
