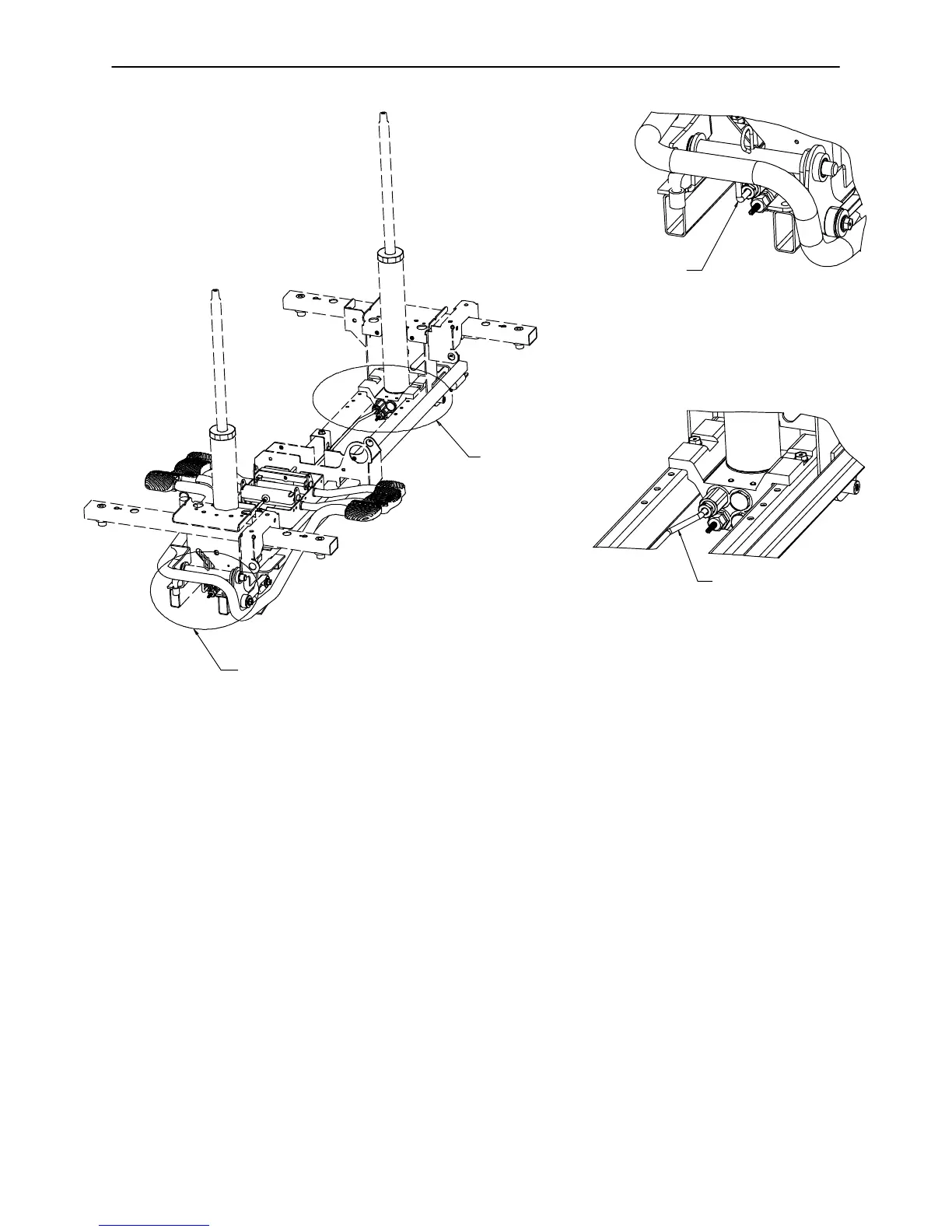

Stryker 1020 - Release Pedal Assembly

Base with Dual Side Hydraulics (Big Wheel Base)
54
SEE DETAIL B
SEE DETAIL C
DETAIL B
DETAIL C
Insert head end release
rod into release valve
assembly as shown
Insert foot end release
rod into release valve
assembly as shown
Item Part No. Part Name Qty.
A 0011−023−000 Washer 2
B 0014−071−000 Washer 2
D 0023−288−000 Hex Washer Hd. Screw 7
E 0027−031−000 Hair Pin Cotter 1
F 0038−497−000 Extension Spring 2
G(page 55) Release Pedal Assembly 1
H 0753−004−014 Head End Release Rod 1
J 0753−004−032 Release Pedal Swivel 2
K 0753−005−037 Pump Connecting Rod 1
L 0753−005−044 Pump Pedal Bushing 2
M 0753−005−088 Wear Strip 3
N 0753−005−074 Pivot Pin 1
P 0753−005−075 Pump Pedal Link 1
R(page 36) Head End Pump Pedal Ass’y1
S 0753−010−015 Release Rod Guide 1
T 1040−004−015 Foot End Release Rod 1
V 1040−010−115 Release Rod Bracket 1
W 0753−005−089 Pump Ram Plug 2
