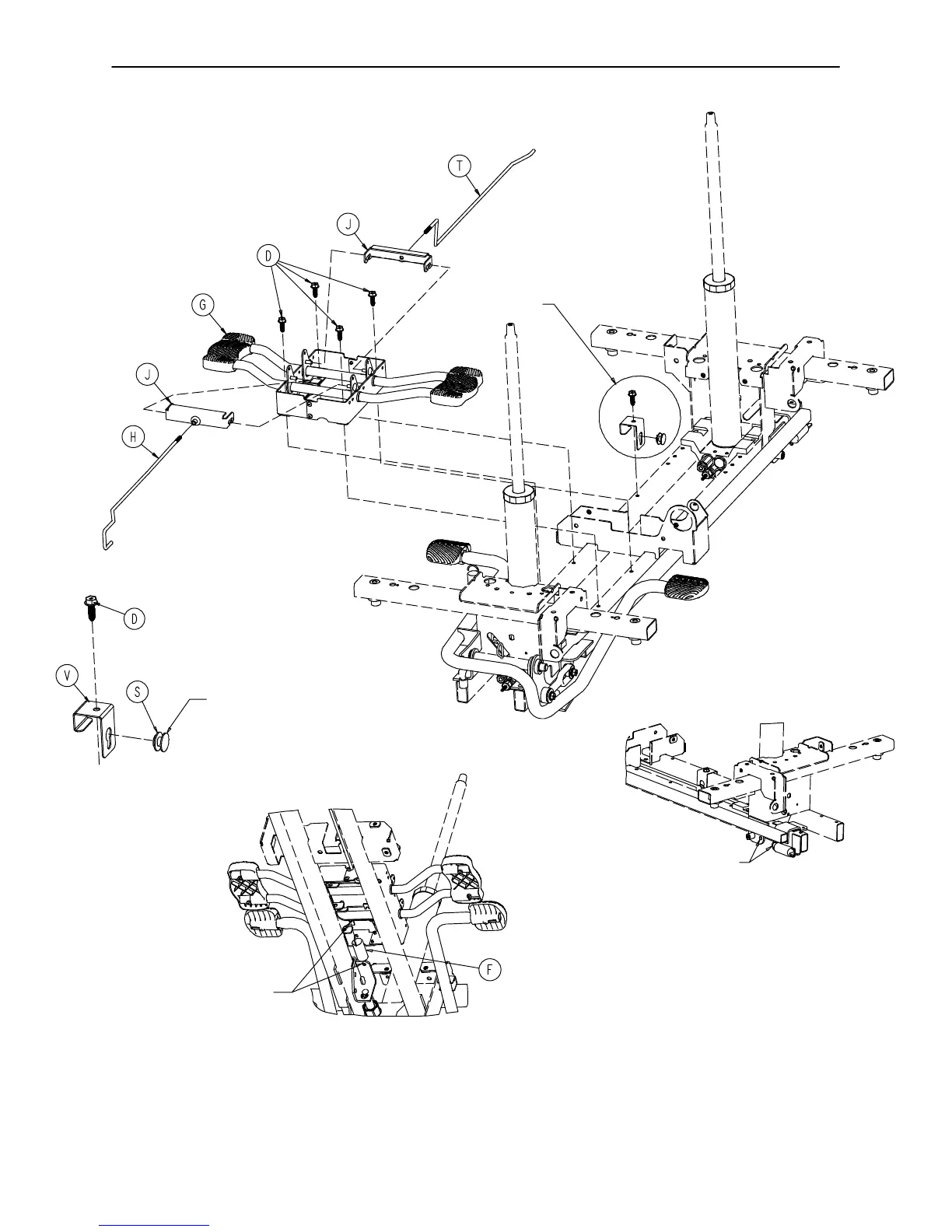

Base with Dual Side Hydraulics (Big Wheel Base)
53
See Detail A
DETAIL A
Insert item ”S” into
keyhole in item ”V”
and push down
Insert spring hook into hook on
release pedal assembly. Insert
other hook into pump connecting
rod weldment as shown.
Insert spring hook thru hole in
pump connecting rod weldment
Attach other hook to return
spring hook as shown.
