Stryker 1020 - Manual Fowler Assembly

78

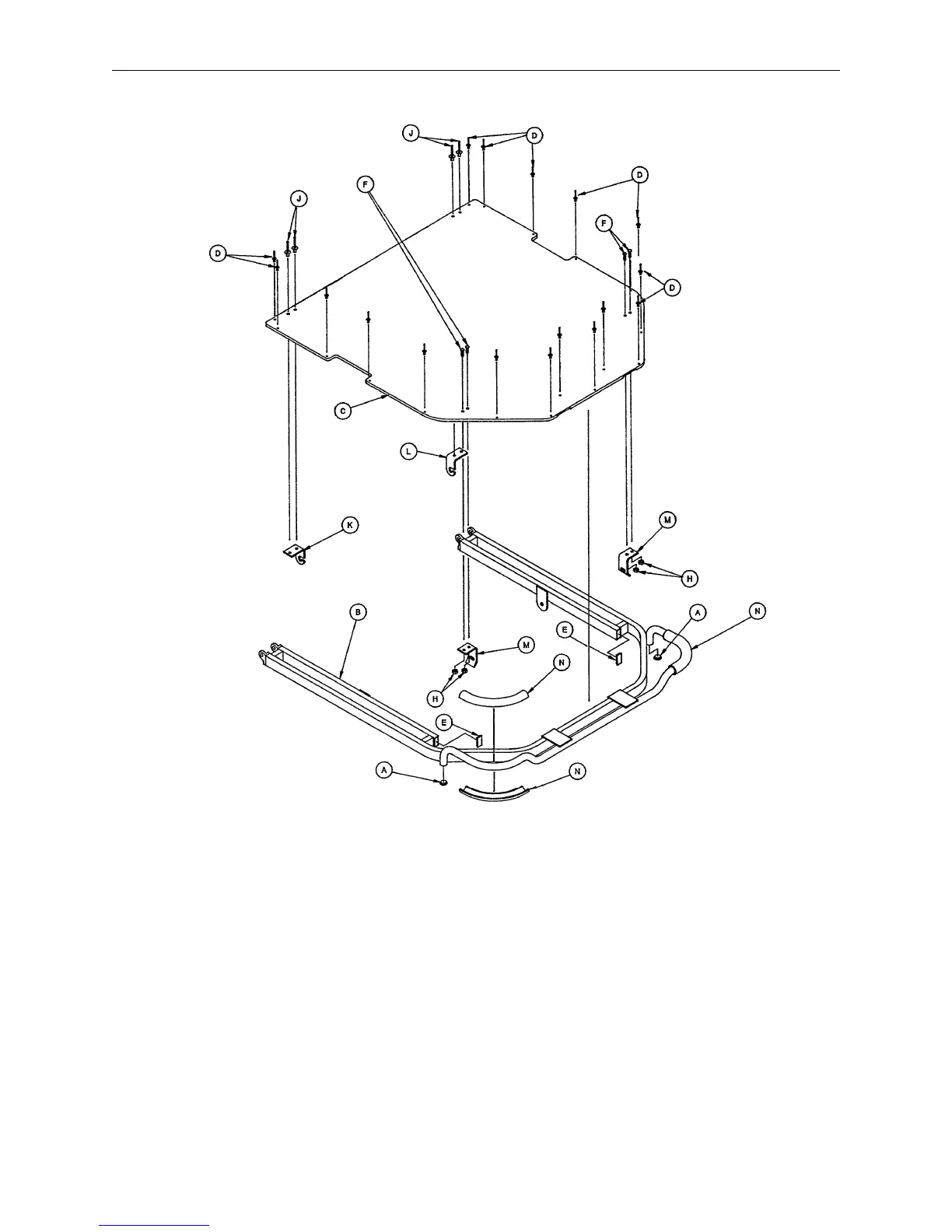

Manual Fowler Assembly
Assembly part number
1020−032−058
(reference only)
Item Part No. Part Name Qty.
A 0037−065−000 Hole Plug 2
B 1020−032−057 Fowler Weldment 1
C 1020−031−039 Fowler Skin 1
D 0025−099−000 Pop Rivet 17
E 1010−032−066 Hole Plug 2
F 0004−149−000 But. Hd. Cap Screw 4
H 0016−003−000 Self−Locking Nut 4
J 0025−069−000 Pop Rivet 4
K 1020−023−012 Tray Hinge, Left 1
L 1020−023−013 Tray Hinge, Right 1
M 1020−023−014 Tray Hinge 2
N 1020−001−065 Fowler Handle Cover 4
