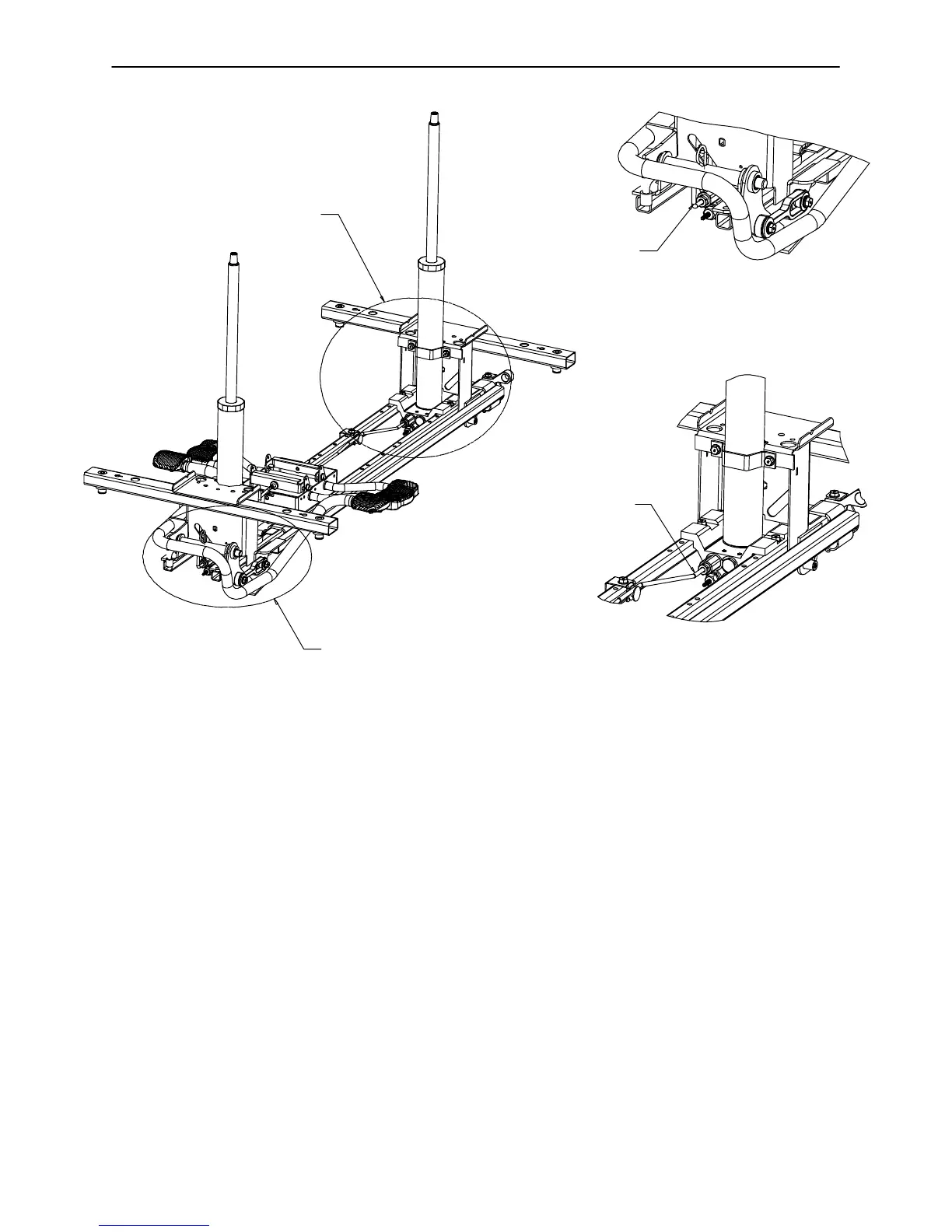

Stryker 1020 - Release Pedal Assembly

Base with Dual Side Hydraulics (Fifth Wheel Base)
34
See Detail C
See Detail B
DETAIL B
DETAIL C
Insert head end release
rod into release valve
assembly as shown
Insert foot end release
rod into release valve
assembly as shown
Item Part No. Part Name Qty.
A 0011−023−000 Washer 2
B 0014−071−000 Washer 2
D 0023−288−000 Hex Washer Hd. Screw 7
E 0027−031−000 Hair Pin Cotter 1
F 0038−497−000 Extension Spring 3
G(page 35) Release Pedal Assembly 1
H 0753−004−014 Head End Release Rod 1
J 0753−004−015 Foot End Release Rod 1
K 0753−004−032 Release Pedal Swivel 2
L 0753−005−037 Pump Connecting Rod 1
M 0753−005−044 Pump Pedal Bushing 2
N 0753−005−088 Wear Strip 2
P 0753−005−074 Pivot Pin 1
R 0753−005−075 Pump Pedal Link 1
S(page 36) Head End Pump Pedal Ass’y1
T 0753−005−087 Return Spring Hook 1
V 0753−010−015 Release Rod Guide 1
W 0753−010−115 Release Rod Bracket 1
X 0753−005−089 Pump Ram Plug 2
