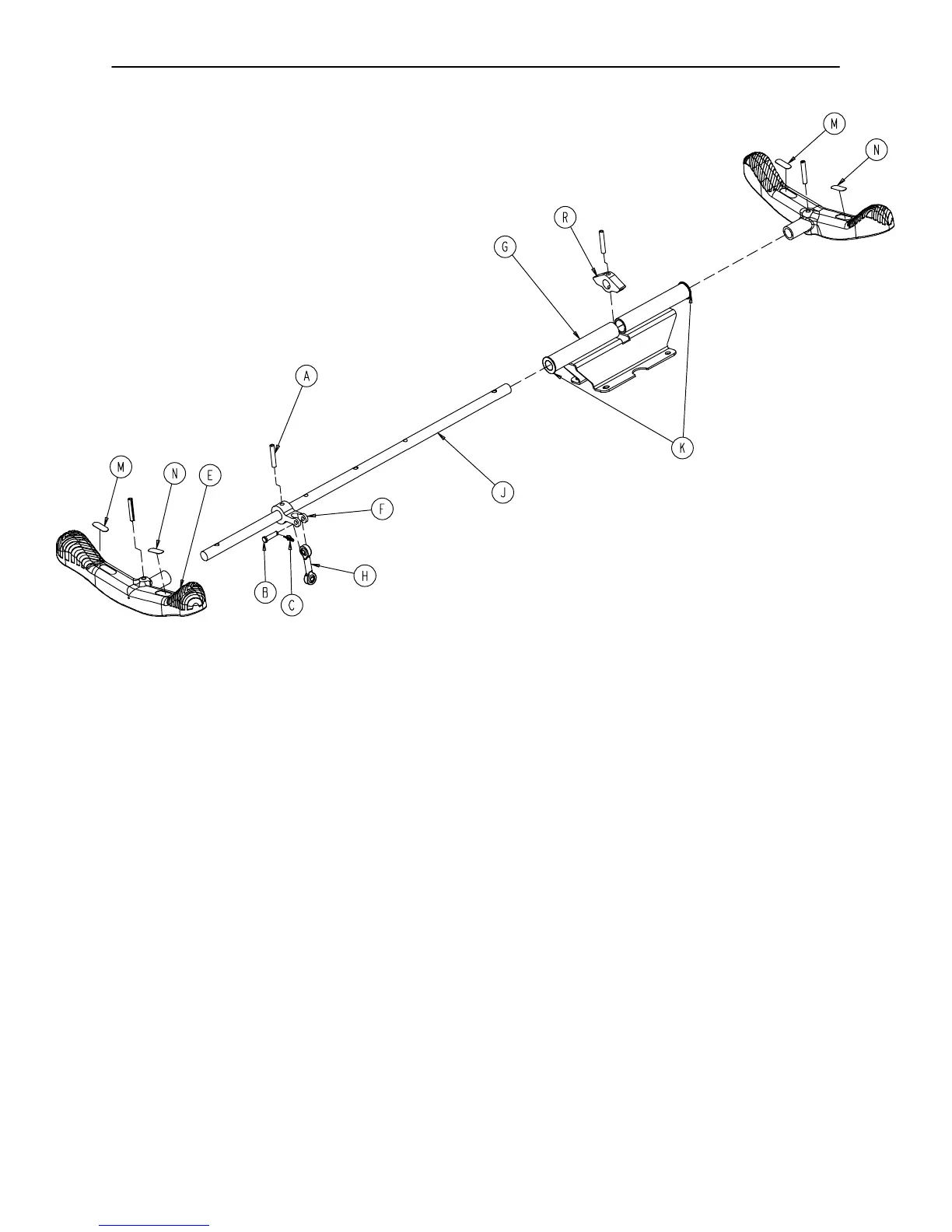

0753−003−110 Side Control Brake Rod Assembly
30
Item Part No. Part Name Qty.
A 0026−067−000 Slotted Spring Pin 4
B 0026−340−000 Clevis Pin 1
C 0027−020−000 Rue Ring Cotter 1
E 0753−003−099 Butterfly “V” Pedal 2
F 0753−003−112 Side Control Link 1
G 0753−003−114 Support Weldment 1
H 0753−003−117 Rod End Link 1
J 0753−003−119 Side Control Brake Rod 1
K 0753−005−044 Pedal Bushing 2
M 1210−201−335 Red Brake Label 2
N 1210−201−336 Green Steer Label 2
R 0753−003−132 Hard Stop 1
