112

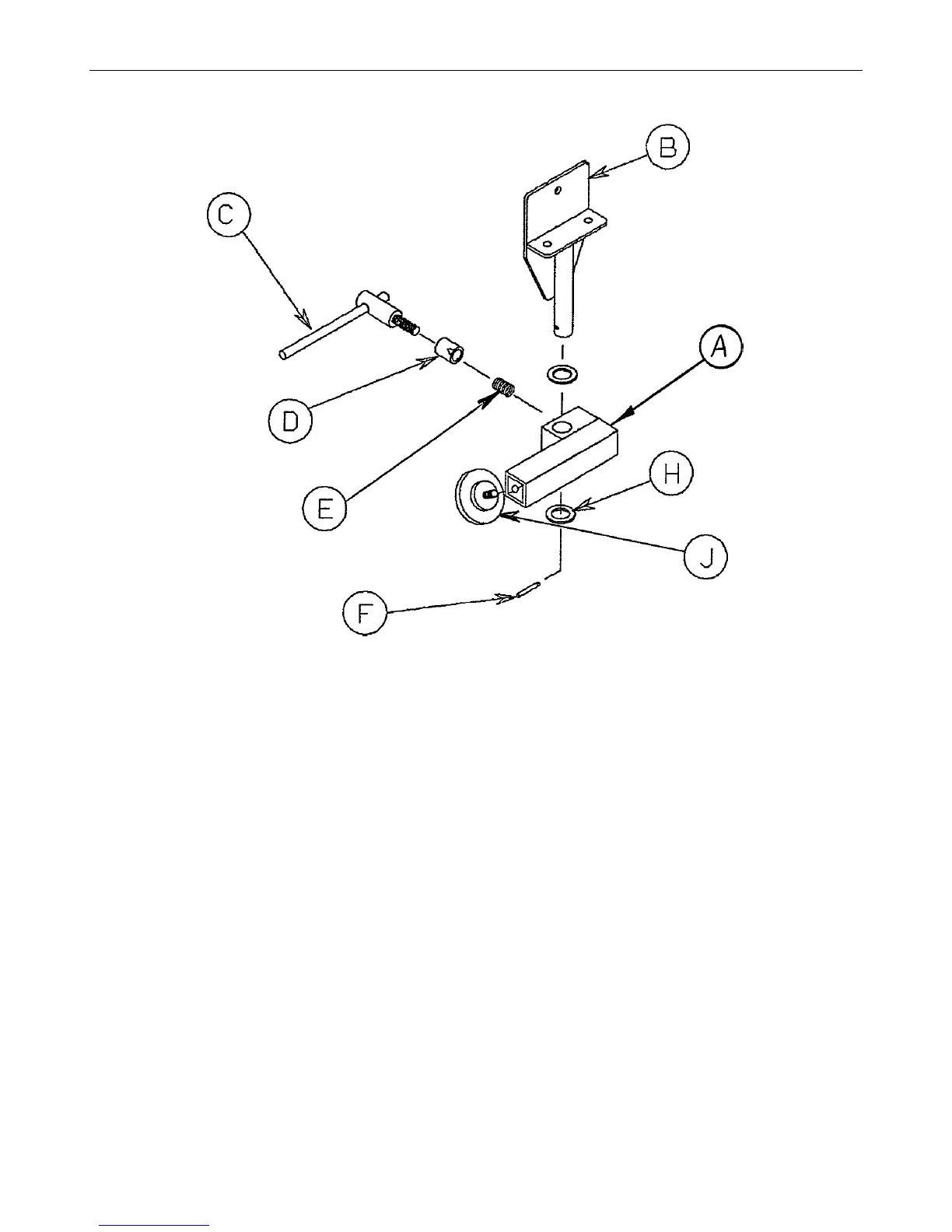

1010−055−015 (Rt.) & 1010−055−025 (Lt.) Stirrup Support
(Right shown)
Item Part No. Part Name Qty.
A 1010−055−016 Right Support Tube Ass’y1
1010−055−026 Left Support Tube Ass’y1
B 1010−055−020 Mounting Bracket 1
C 0650−002−032 Lock Screw Assembly 1
D 0966−051−019 Wedge Lock, Modified 1
E 0038−171−000 Compression Spring 1
F 0026−007−000 Roll Pin 1
H 0014−040−000 Nylon Flat Washer 2
J 0024−011−000 Knob 1
