Base with 3−Side Hydraulics (Fifth Wheel Base)
38

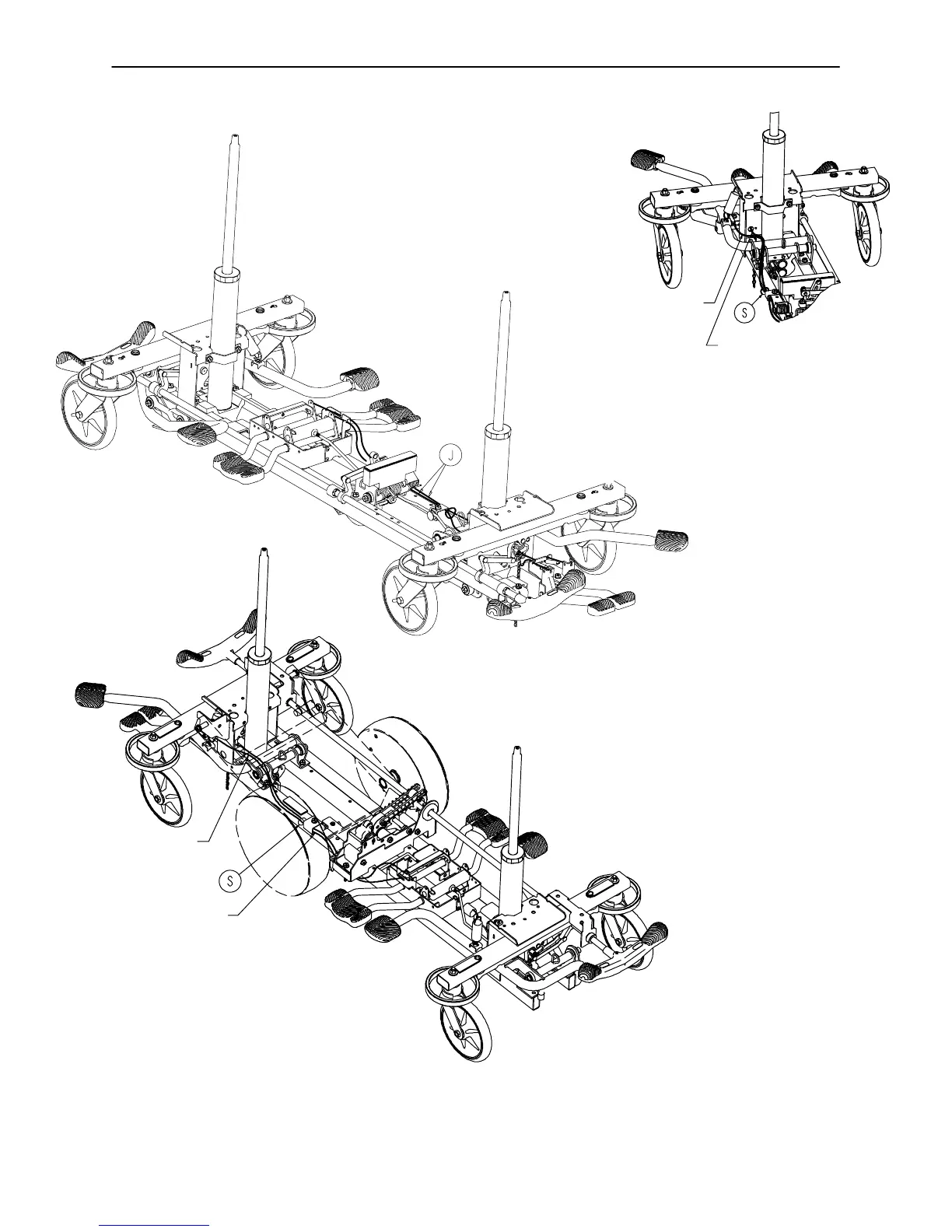

Run cable from right pedal
on the outside of the jack
mounting plate.
Run cable from left pedal
through the hole in the jack
mounting plate.
Pull cables toward
the foot end of the
base to remove slack.
Run the cables through
the release rod bracket.
FIFTH WHEEL BASES
BIG WHEEL BASES
