Stryker 1020 - Page 41

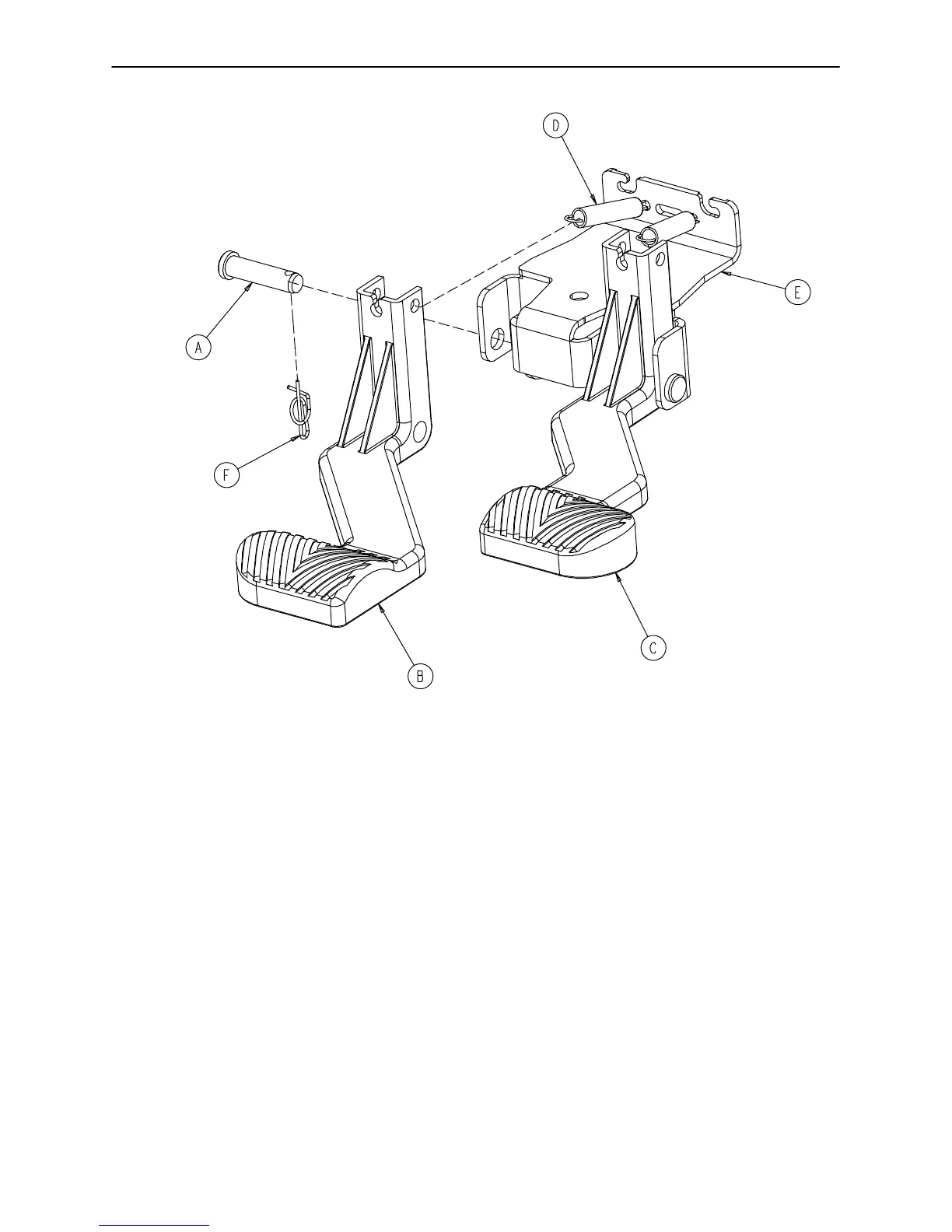

Foot End Release Pedal Assembly
40
Assembly part number 0753−004−123 (reference only)
Item Part No. Part Name Qty.
A 0026−132−000 Clevis Pin 2
B 0753−004−024 Release Pedal, Foot End, Left 1
C 0753−004−025 Release Pedal, Foot End, Right 1
D 0753−004−028 Release Pedal Return Spring 2
E 0753−004−322 Release Pedal Mtg. Plate 1
F 0027−022−000 Rue Ring Cotter 2
