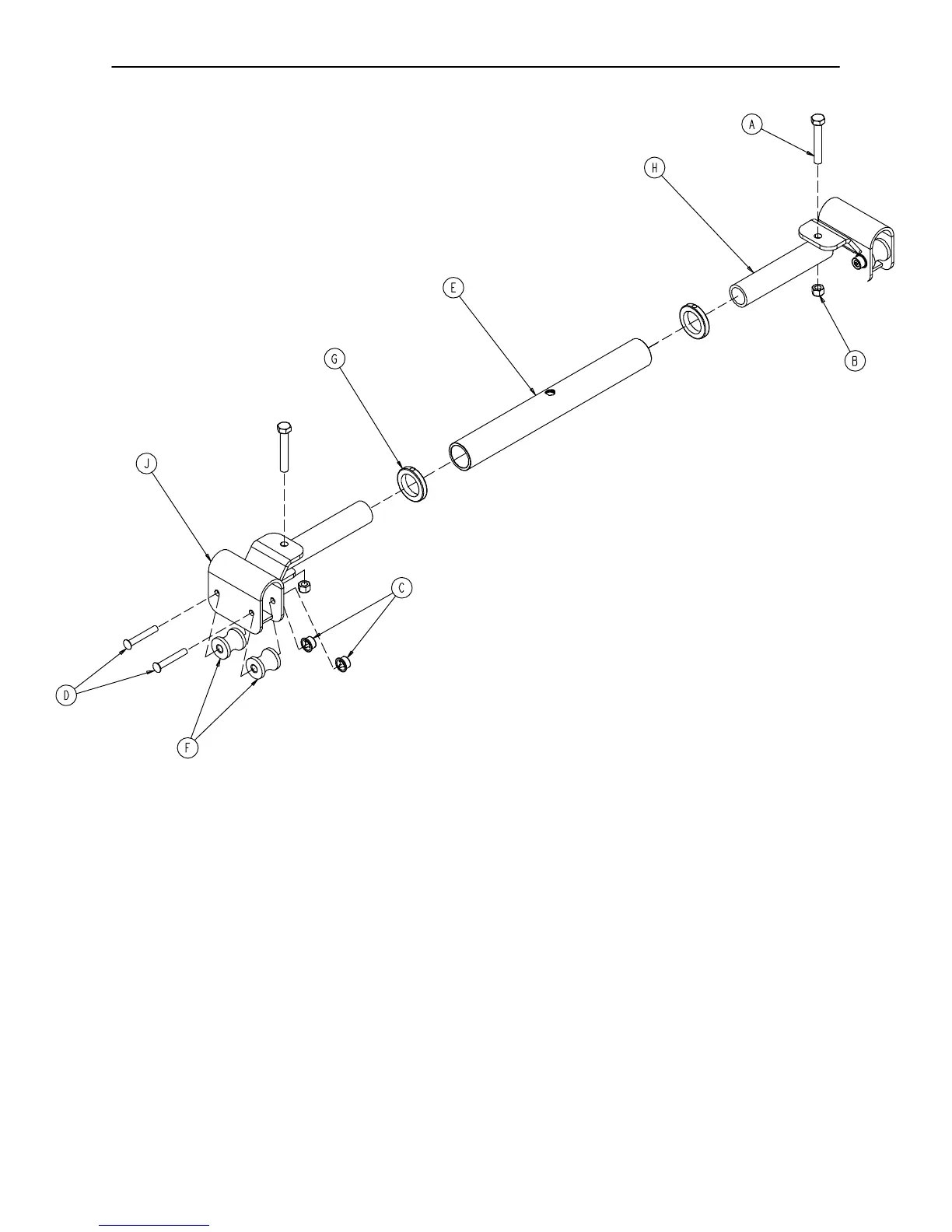

1020−024−002 Foot End Litter Support Assembly
75
Item Part No. Part Name Qty.
A 0003−040−000 Hex Hd. Cap Screw 2
B 0016−028−000 Hex Nut 2
C 0017−003−000 Cap Nut 4
D 0025−053−000 Semi−Tubular Rivet 4
E 0753−010−029 Support Tube 1
F 0938−001−292 Support Tube Roller 4
G 0938−001−401 Collar 2
H 1010−032−064 Carrier Tube 2
J 1020−001−048 Foot End Support Tube 2
