87

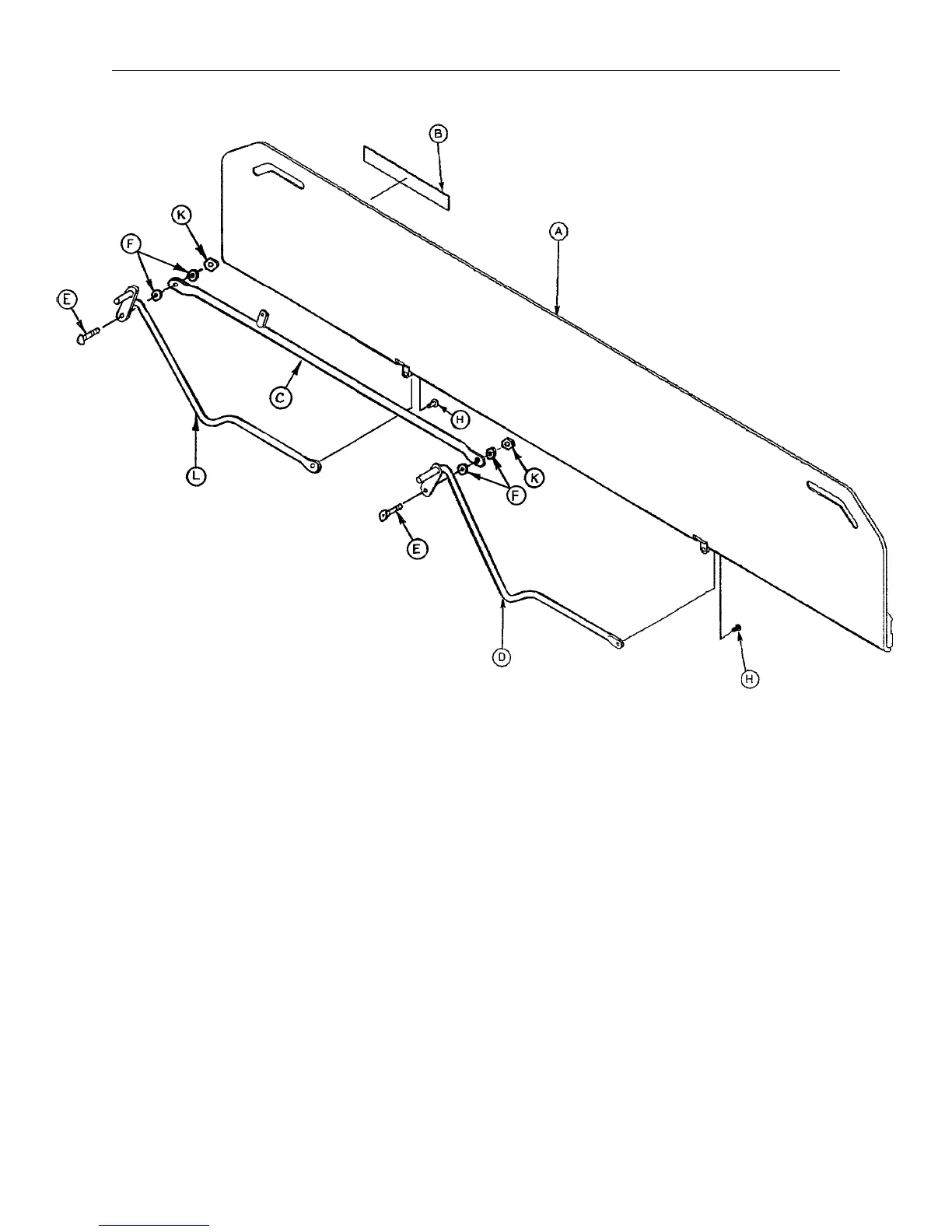

1020−024−011 Transfer System Assembly, Right
HEAD END
Item Part No. Part Name Qty.
A 1020−032−100 Transfer Board Assembly 1
B 0721−024−046 Label 1
C 1020−024−037 Connecting Link Assembly 1
D 1020−024−013 Pivot Arm Ass’y Head, Rt. 1
E 0001−025−000 Flat Hd. Machine Screw 2
F 0011−224−000 Nylon Flat Washer 4
H 0004−156−000 Button Hd. Cap Screw 2
K 0016−028−000 Nylock Hex Nut 2
L 1020−024−033 Pivot Arm Ass’y, Right 1
To Next Page
