93

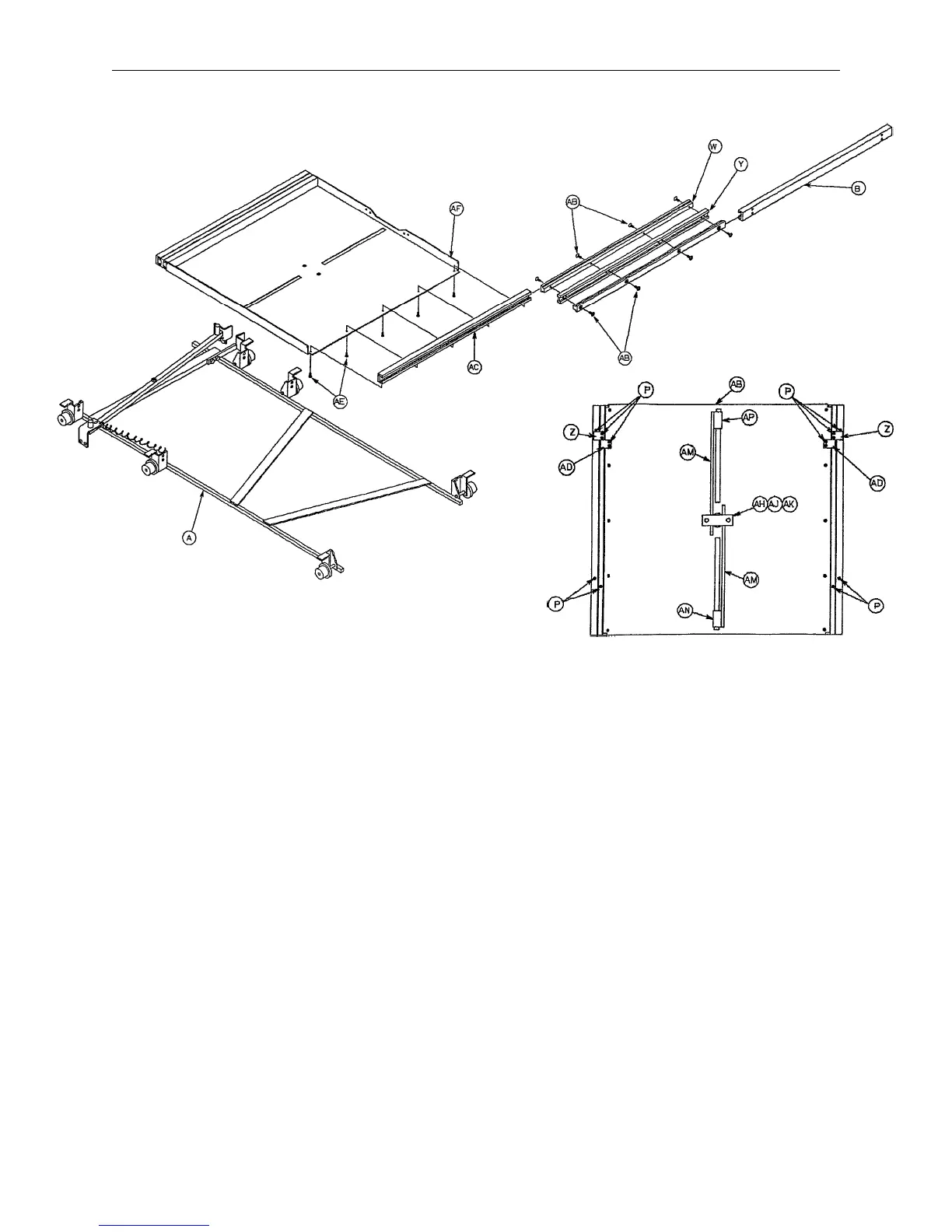

1020−022−010 X−Ray Tray Assembly, Right Side Load
BOTTOM
VIEW
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 1020−022−044 Tray Frame Ass’y 1 AJ 1020−022−041 Spur Gear 1
B 1020−022−011 Outer Slide, Mach’d 2 AK 0052−250−000 Spacer 2
C 1020−022−015 Pivot Tube Ass’y 1 AL 1010−032−066 Hole Plug 2
D 1020−022−007 Brake Handle 1 AM 1020−022−043 Rack, Modified 2
E 1020−022−036 Brake Adj. Bracket 1 AN 1020−022−058 Rack Connector Ass’y1
F 0038−253−000 Extension Spring 1 AP 1020−022−057 Left Rack Connector 1
H 1020−022−059 Tray Wheel 6 AR 0004−127−000 Soc. Hd. Cap Screw 4
J 1020−022−025 Wheel Axle 6 AS 0001−026−000 Flat Hd. Mach. Screw 2
K 0028−098−000 Retaining Ring 6 AT 1020−022−056 Centering Plate 2
L 0011−146−000 Nylon Washer 1 AW 0004−169−000 But. Hd. Cap Screw 1
M 0037−064−000 Rubber Bumper 12 AY 0004−170−000 But. Hd. Cap Screw 1
N 0004−136−000 Soc. Hd. Cap Screw 8 BB 1020−022−021 Slide Block 4
P 0004−101−000 Soc. Hd. Cap Screw 18 BC 0001−085−000 Flat Hd. Screw 4
R 0011−011−000 Fiber Washer 2 BD 1020−022−055 Slide Pad 2
S 0004−026−000 Soc. Hd. Cap Screw 3 BE 0024−051−000 Three−Arm Knob 1
T 0016−003−000 Nylock Hex Nut 5 BF 0011−132−000 Nylon Washer 1
W 1020−022−013 Inner Slide, Mach’d 4 BH 1020−022−029 Handle 1
Y 1020−022−012 Support, Mach’d 2 BJ 1010−022−035 Retention Spacer, Rt. 1
Z 1020−022−045 Stop, First Stage 2 BK 0016−023−000 Nylock Hex Nut 4
AB 0001−087−000 Flat Hd. Screw 16 BL 1020−022−060 Label 1
AC 1020−022−047 Tray Slide, Mach’d 2 BM 0004−171−000 But. Hd. Cap Screw 3
AD 1020−022−046 Stop−2nd Stage 2 BN 0045−952−000 O−Ring 12
AE 0004−167−000 But. Hd. Cap Screw 14 BP 0014−004−000 Nylon Flat Washer 6
AF 1020−022−014 Tray Pan 1 BR 1010−022−036 Retention Spacer, Lt. 1
AH 1020−022−052 Guide Plate Ass’y1
