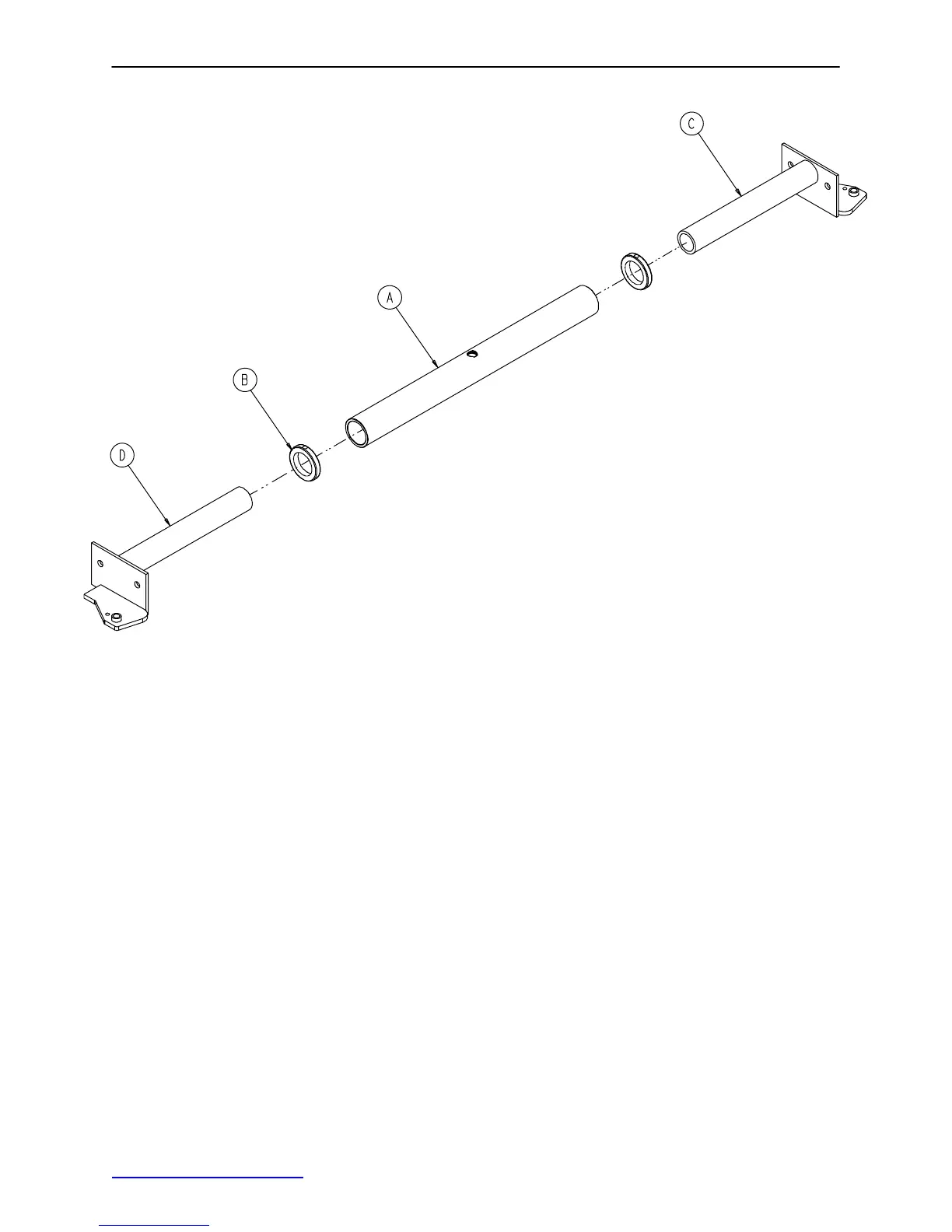

1020−024−003 Head End Litter Support
Assembly
75
Item
Part No.
Part
Name
Qty
.
A
0753−010−030
Support T
ube
1
B
0938−001−401
Collar
2
C
1020−024−004
Jack Support, Left
1
D
1020−024−005
Jack Support, Right
1
Return to Table of Contents
75
77
