Stryker 1089 - Page 36

36 1089-009-002 REV B www.stryker.com

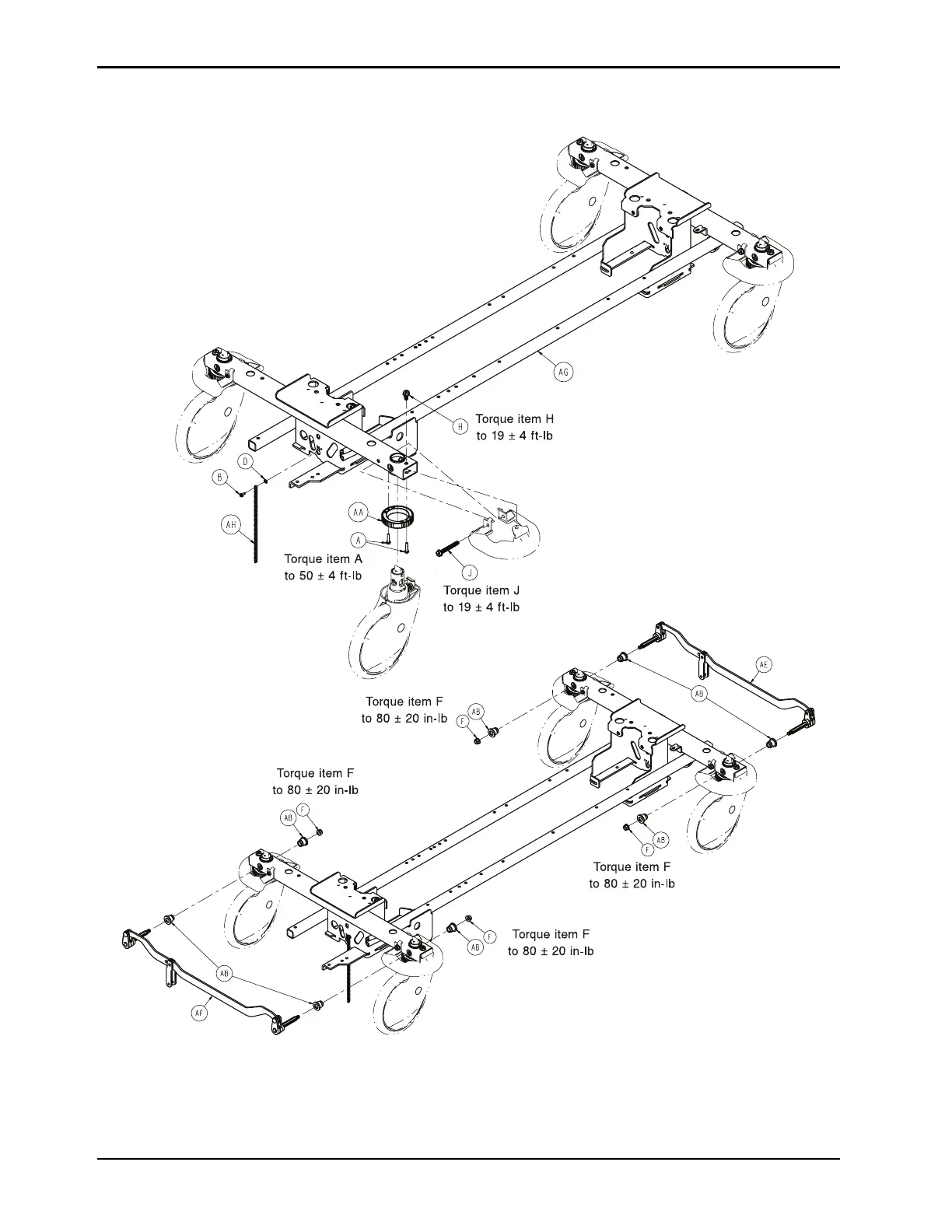

Standard brake assembly
1105–003–134 Rev A (Reference Only)
Torque item H
to 19 ± 4 ft-lb
Torque item J
to 19 ± 4 ft-lb
Torque item A
to 50 ± 4 ft-lb
Torque item F
to 80 ± 20 in-lb
Torque item F
to 80 ± 20 in-lb
Torque item F
to 80 ± 20 in-lb
Torque item F
to 80 ± 20 in-lb
