54 1089-009-002 REV B www.stryker.com

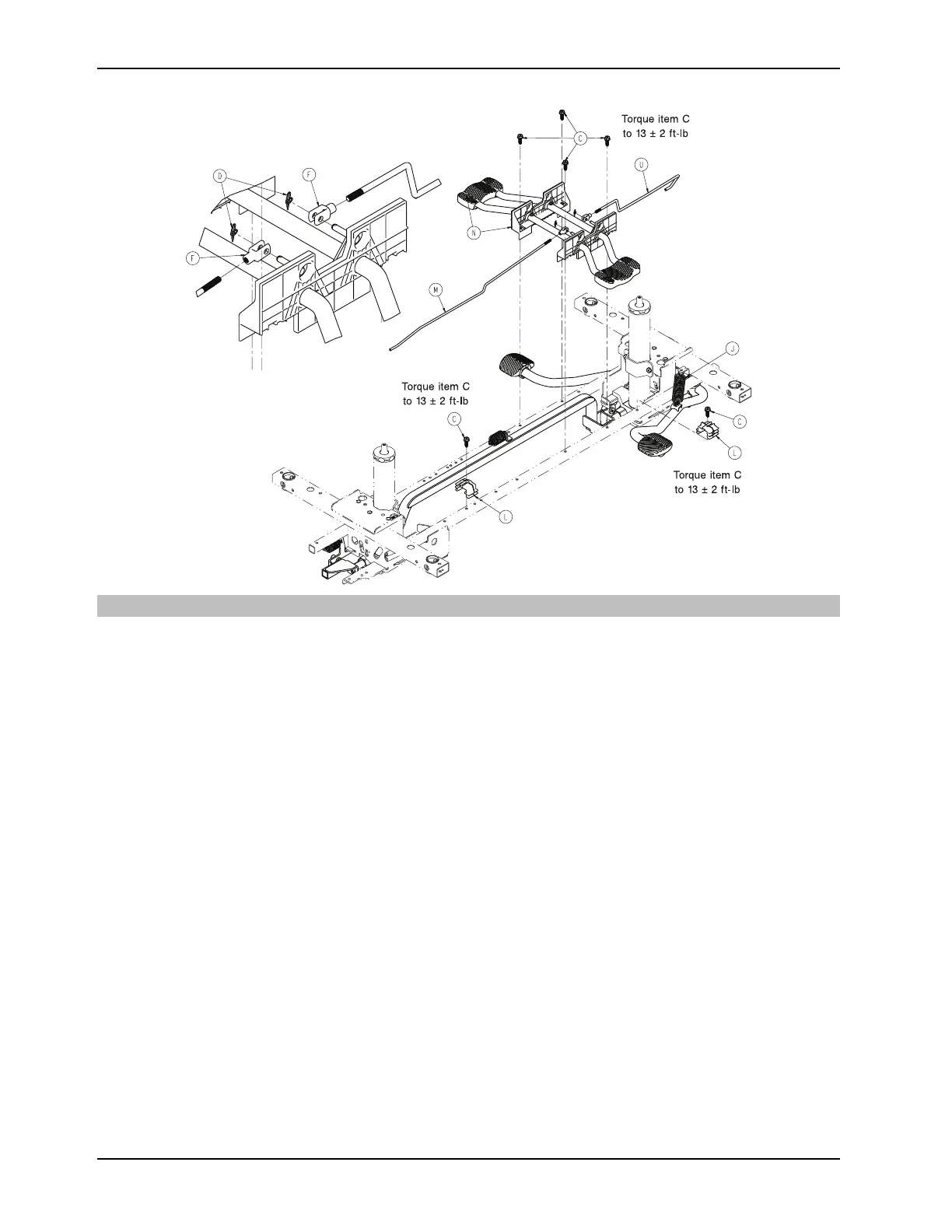

Dual-sided hydraulics assembly
Torque item C
to 13 ± 2 ft-lb
Torque item C
to 13 ± 2 ft-lb
Torque item C
to 13 ± 2 ft-lb
Item Part No. Part Name
Qty
A 0011–023–000 Washer 2
B 0014–071–000 Washer 2
C
0023–288–000
Hex Washer Head Screw
8
D 0027–020–000
Rue Ring Cotter
2
E 0027–031–000
Hair Pin Cotter
1
F 0052–909–000
Clevis Joint
2
G
0753–005–044 Pump Pedal Bushing 2
H 0753–005–089 Pump Ram Plug 2
J 0853–005–009
Return Spring
3
K 0853–005–074 Pivot Pin
1
L 0853–010–215 Release Rod Bracket 2
M 1105–004–015 Release Rod, Foot End
1
N 1105–004–201 Lowering Pedal Assembly (Lowering
pedal assembly - 1105–004–201 on
page 55
1
P 1105–005–035
Pump Connecting Tube Weldment
1
R 1105–005–075 Pump Pedal Link 1
T 1105–005–285 Pump Pedal Assembly, Head End
(Pump pedal assembly, head end –
1105–005–285 on page 56
1
U 0853–204–014 Release Rod, Head End
1
