Stryker FL17E - Siderail Function Guide

Operations Manual
14
2.6 SIDERAIL FUNCTION GUIDE
OUTER CONTROL PANEL
Right siderail Left siderail
A: Push to raise Fowler C: Push to raise bed E: Push to raise Knee Gatch
B: Push to lower Fowler D: Push to lower bed F: Push to lower Kne Gatch
INNER CONTROL PANEL
Right Siderail Left Siderail
A: Push to raise Fowler C: Push to raise Knee Gatch
B: Push to lower Fowler D: Push to lower Knee Gatch
E: Push for nurse assistance (optional Nurse Call function, see section 2.14, page 18)
B D F
A
C E E C
A
F D B

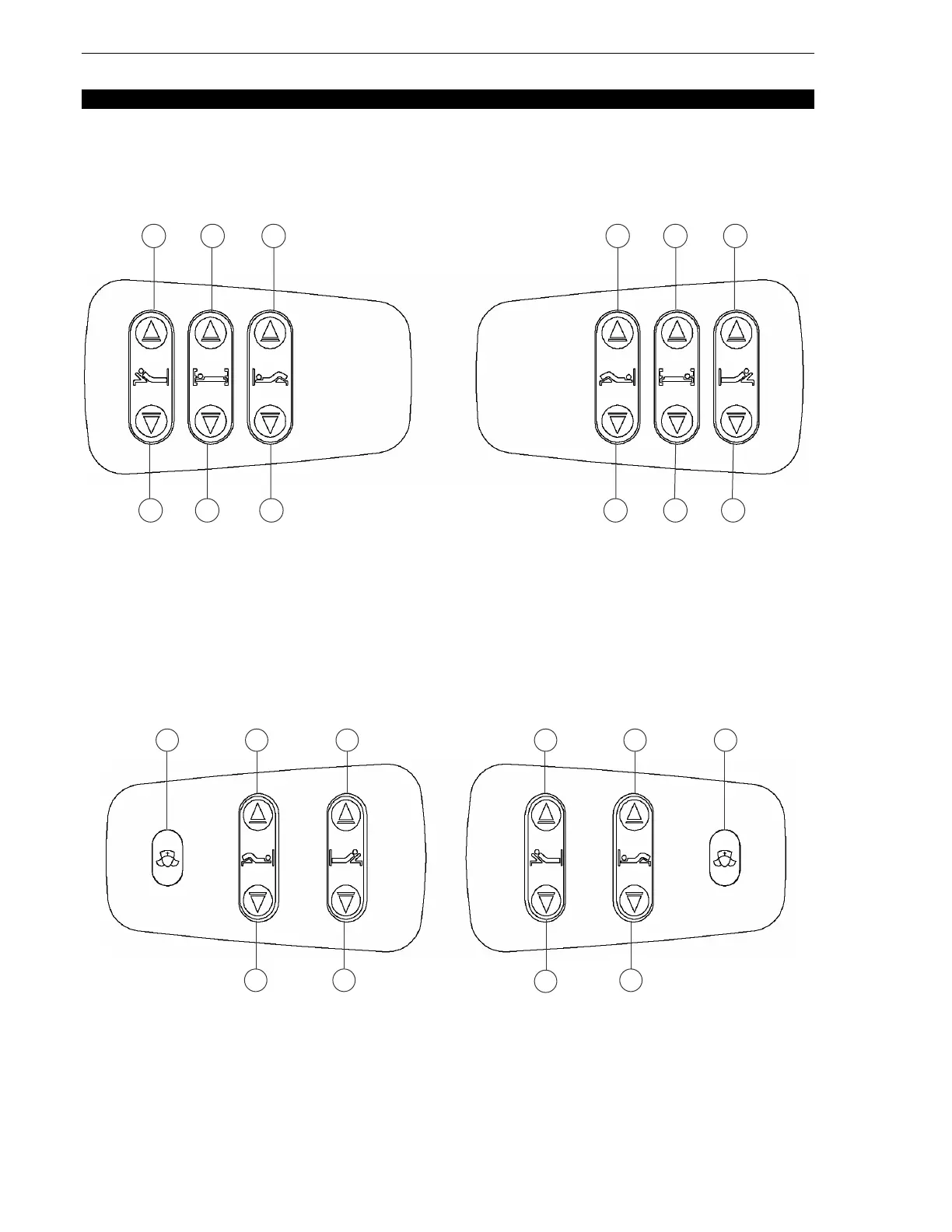

Figure 2.14A
E C
A
A
C
D B
B
D
E
Figure 2.14B
