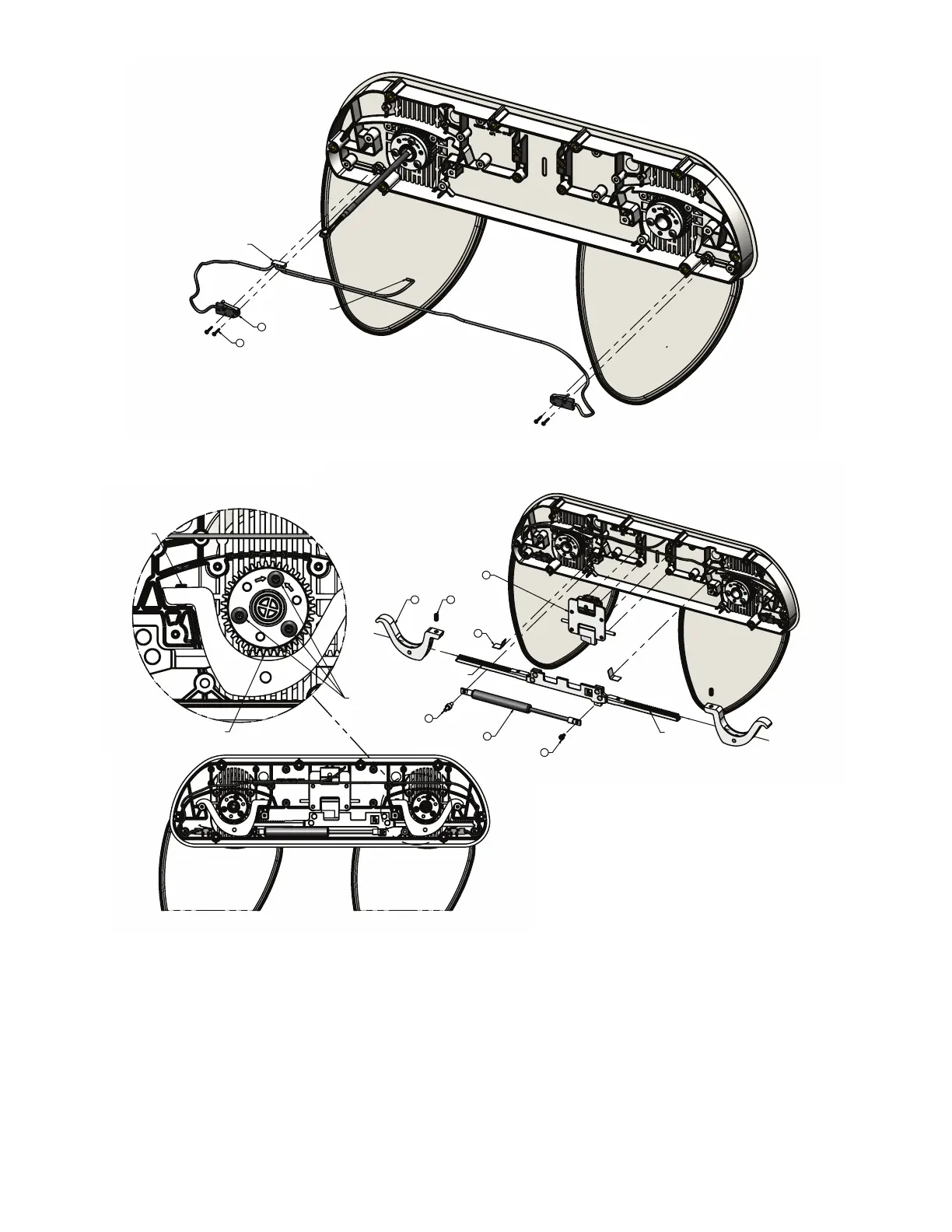

CONNECT RAIL POSITION HARNESS TO CORRESPONDING
SWITCHES, ORIENT AND INSTALL AS SHOWN.
CONNECT TO 6-PIN
HEADER ON PCBA
CONNECT LOCK HARNESS
CONNECTOR DURING LATCH
ASSEMBLY INSTALLATION.
40
2X
24
4X
APPLY NS-18191-G
GREASE TO LENGTH
OF RACK
APPLY NS-18191-G
GREASE TO LENGTH
OF RACK
7
19
2X
28
2X
17
16
29
18
2X
DETAIL B
TIGHTEN RACK MESH SET SCREW TO ENSURE GEAR
MESH IS TIGHT. FUNCTIONALLY CYCLE TEST TO ENSURE
CORRECT SETTING FOR GRAVITY FALL AND "HITCH"
ADJUST BOTH LEVER SET SCREWS AT THE SAME TIME.
AFTER MESH IS TIGHT, TORQUE ALL GEAR
SCREWS TO 45IN/LB (TWICE AROUND)
RACK MESH
ADJUSTING
SET SCREW
