Fig. 17a
Fig. 16a
Diameter
The diameter of the selected nail
should be at least 2.0mm smaller than
that of the last reamer used.

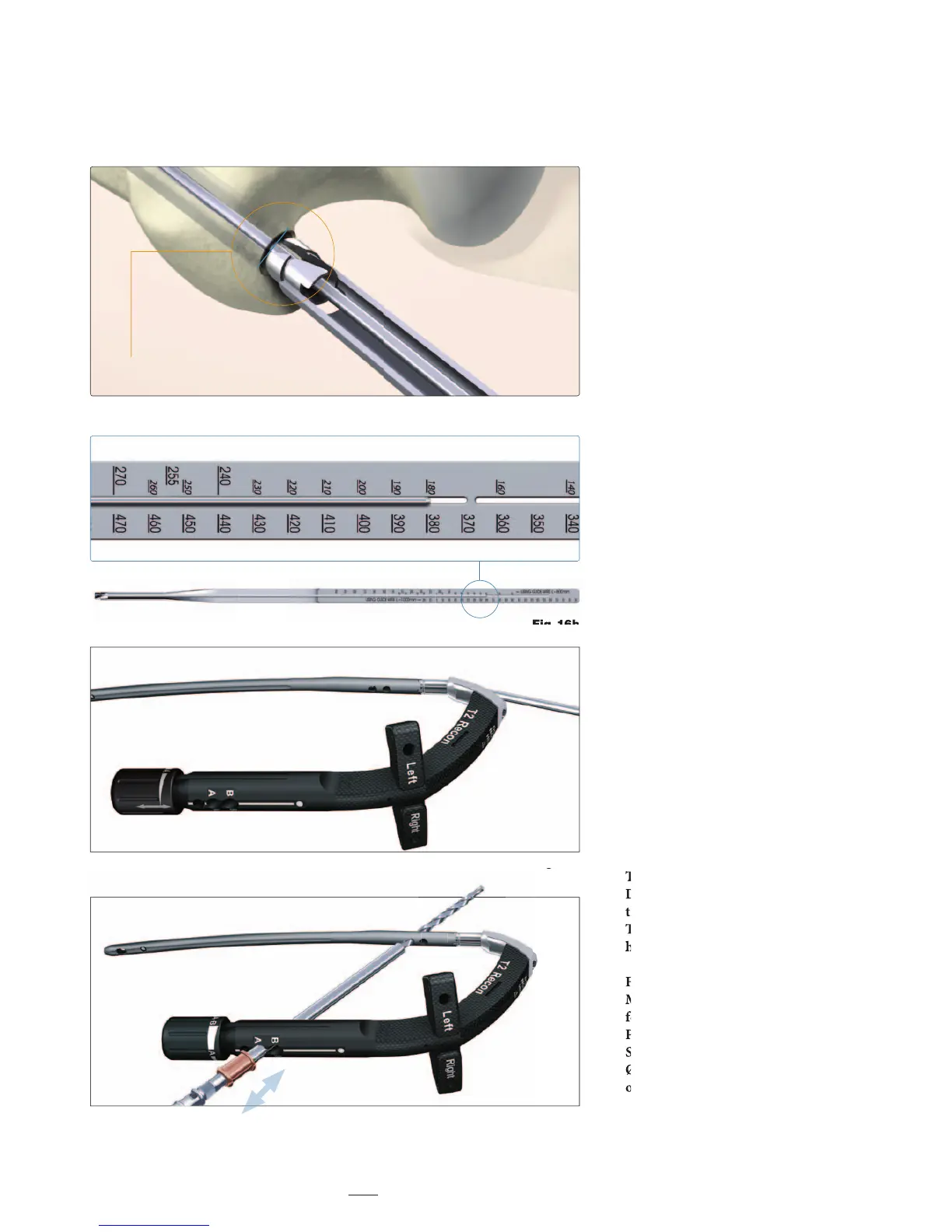

Length
Nail length may be determined by
measuring the remaining length of the
Guide Wire. The Guide Wire Ruler
may be used by placing it on the Guide
Wire and reading the correct nail
length at the end of the Guide Wire on
the Guide Wire Ruler (Fig. 16a, b).
Upon completion of reaming, the
appropriate size nail is ready for
insertion. A unique design feature
of the T2 Recon Nail is that the
Ø3 × 1000mm Ball Tip Guide Wire
does not need to be exchanged.
The selected nail is assembled onto the
Targeting Arm with the Nail Holding
Screw (Fig. 17a). Be sure to securely
tighten the Nail Holding Screw with
the Screwdriver Shaft, Ball Tip and
T-Handle so that it does not loosen
during nail insertion.
Caution:
Prior to the nail insertion,
check the correct assembly
by passing the Stepdrill for
LagScrewthroughtheRecon
Tissue Protection Sleeve and
DrillSleeve,Recon(placedin
the corresponding hole of the
Targeting Arm) and through the
holes of the nail (Fig. 17b).
For the Antegrade Femoral
Mode, use the targeting hole
for Antegrade with the Tissue
ProtectionSleeveandDrill
Sleeve assembly to pass the
Ø4.2×340mmDrillthroughthe
oblique hole of the nail.
Operative Technique
Nail Selection
Fig. 17b
Fig. 17a
Tissue Protection Sleeve and
DrillSleeve,Recon(placedin
the corresponding hole of the
Targeting Arm) and through the
holes of the nail (Fig. 17b).
For the Antegrade Femoral
Mode, use the targeting hole
for Antegrade with the Tissue
ProtectionSleeveandDrill
Sleeve assembly to pass the
Ø4.2×340mmDrillthroughthe
oblique hole of the nail.
Fig. 16b
Fig. 16b
End of Guide Wire Ruler
is measurement reference
16
