Stryker T2 User Manual

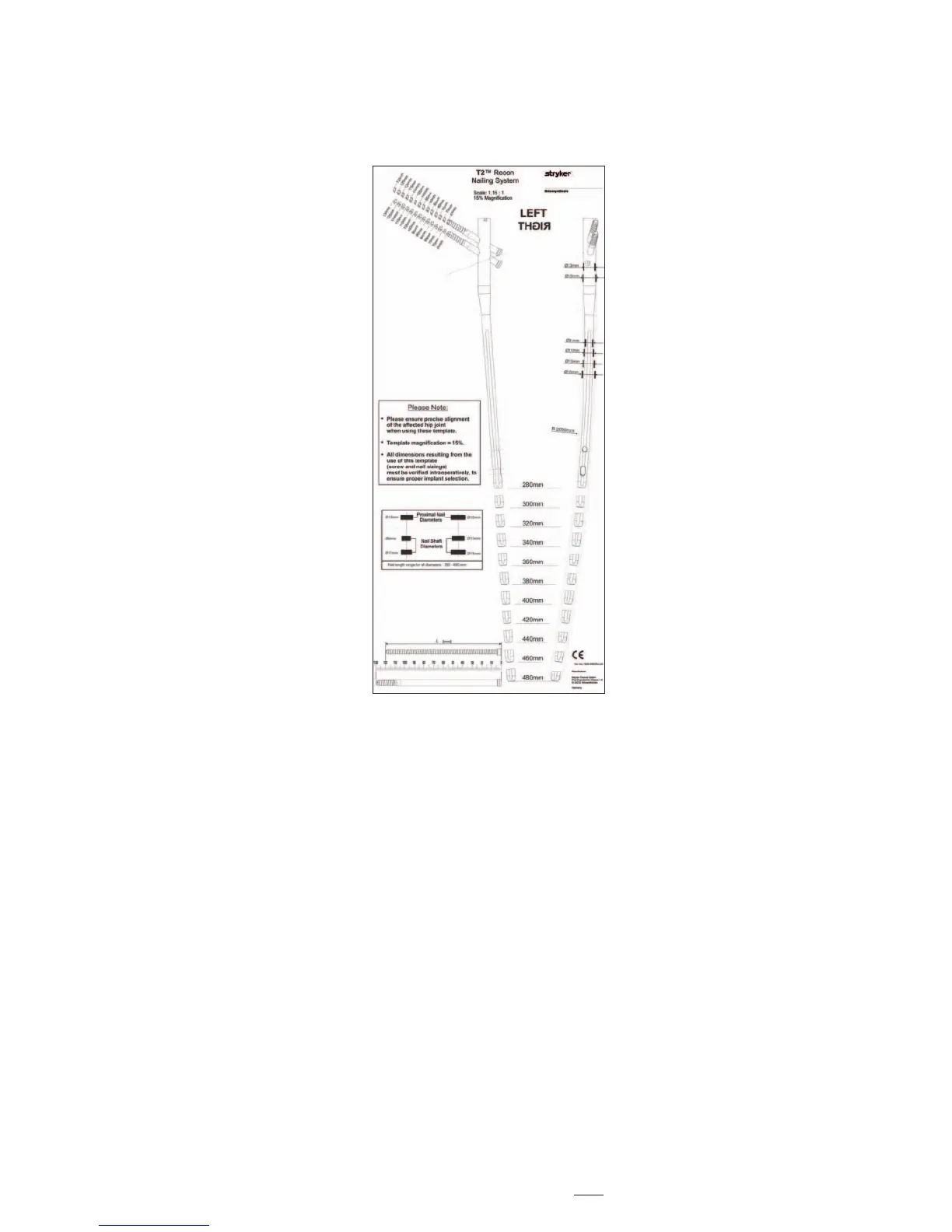

An X-Ray Recon Template (1806-3080)
is available for pre-operative planning.
Thorough evaluation of pre-operative
radiographs of the affected extremity
is critical. Careful radiographic
examination of the trochanteric
region and neck regions can reduce
the potential of intra-operative
complications.
Note:
TheX-RayReconTemplate
features a scale of 1.15:1 which
is adapted to conventional
analoguousX-Rays.Fordigital
X-Rays,attentionhastobe
paid that the magnification is
corresponding with the template.
According to the fracture type either
Recon or Antegrade Femoral Mode
can be chosen.
Evaluation of the femoral neck
angle on the pre-operative X-Rays is
mandatory as the T2 Recon Nail has a
fixed 125° neck angle for the two Lag
Screws. Proper placement of both Lag
Screws in the femoral head is essential.
If possible, X-Rays of the contralateral
side should be used to determine the
normal neck angle and length of the
femur.
The proper nail length should extend
from the tip of the greater trochanter
to the epiphyseal scar.
Note:
Check with your local
representative regarding
availability of nail sizes.
Pre-Operative Planning
9
