Device Features
Front panel

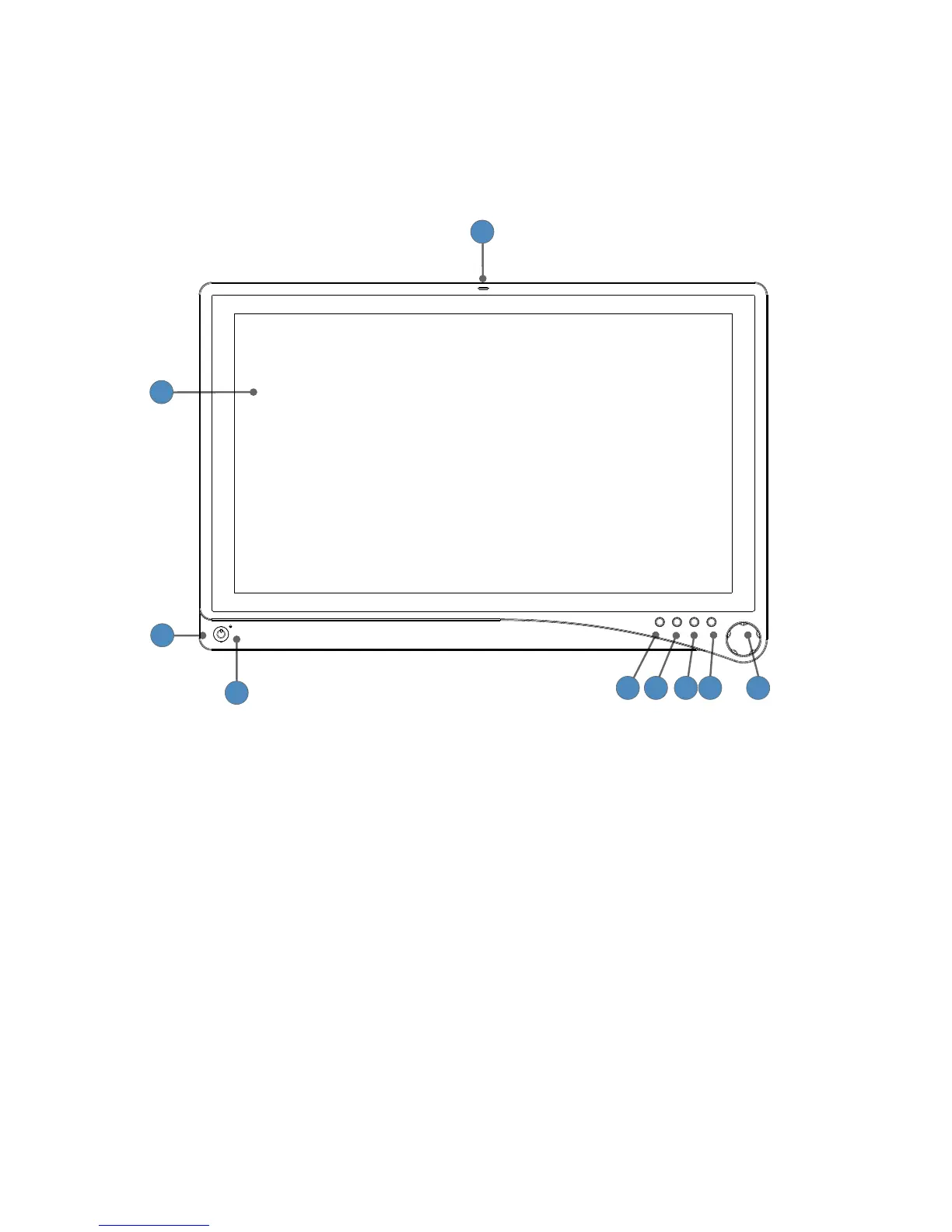

Operate the display using the rotary control located on the front panel. A list of the display
controls and their functions is provided below.
2
3
4
5 8
7
6 9
1
1. Auxilliary device status
indicator
LED shines red to indicate an active connection to a
connected device.
2. Display Screen Shows video image.
3. Power switch (soft) Powers the display ON and OFF.
4. Power LED Indicates current status. Shines green if the display is
powered on or is in screen saver mode; blinks red if the
display is in sleep mode; blinks amber if over or under
voltage.
5. PIP Accesses the Picture in Picture adjustment menu.
6. Bright Accesses the Brightness adjustment menu
7. Specialty Accesses the Specialty adjustment menu
8. Input Accesses the Input selection menu
9. Rotary control Accesses the on-screen display and navigates through
its functions.
