20

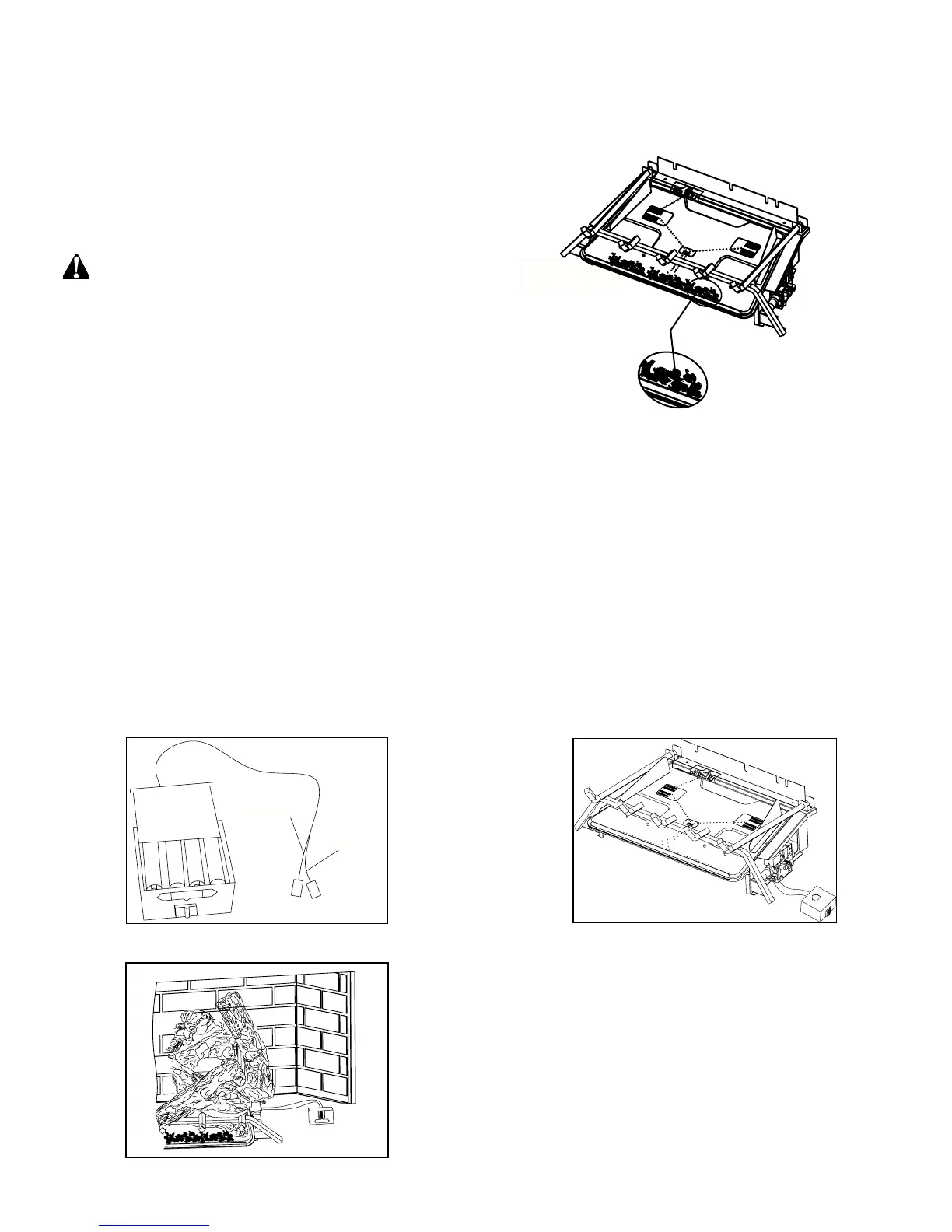

INSTALLING REMOTE RECEIVER
The remote receiver operates on four 1.5V AA-size batteries (included). Use ALKALINE
batteries for longer battery life and maximum microprocessor performance.
IMPORTANT: New or fully charged batteries are essential for proper operation of the
remote receiver as the solenoid power consumption is higher than standard remote control
systems.
1. Remove battery cover along the direction shown on the battery box, and install four
1.5V AA-size batteries into the box. (See Fig. 20)
2. Rotate the log set, according with the color red wire to red, black on black, one-to
one connected to receiver and AF-1110 valve. (See Fig. 21)
3. With receiver wired to the valve, place receiver to the side of the log set. (See Fig. 22)
Fig. 20 Fig. 21
Black Wire
Red Wire
PLACING EMBER MATERIAL
Seperate the ember material into small light
pieces smaller than the size of a dime. Place
the pieces around the small round gas ports
starting in the front of the burner and working
your way towards the back of the burner. Do not
place ember material on the slotted
burner ports or the carry over ports leading to
the left and right rear burner slots,
WARNING:
• Use only ember material provided with log set.
• Do not add additional ember material
• Place ember material on front burner port
only Do NOT PLACE EMBER MATERIAL ON
SLOTTED MIDDLE OR BACK BURNERS.
Fig. 22
Fig. 19 - Placing Ember Material
Ember Material
