Style selections SSEB18RT - Inspecting Burners; Pilot Flame Pattern; Burner Flame Pattern; Burner Primary Air Holes

28
INSPECTING BURNERS
Check pilot ame pattern and burner ame patterns often.

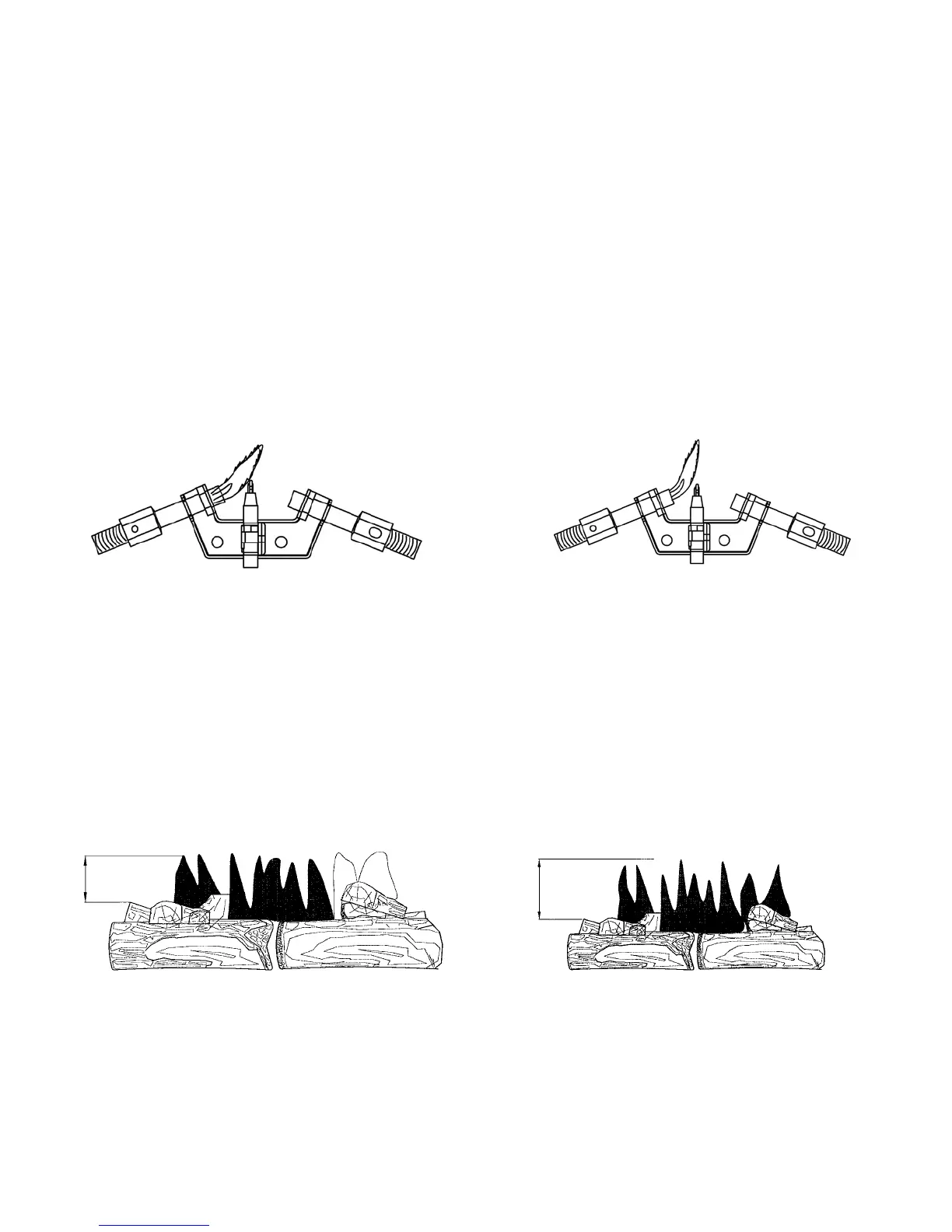

PILOT FLAME PATTERN
1. Turn control knob to pilot position.
2. Inspect pilot ame and refer to Fig. 33 and 34.
• Fig. 33 shows a correct pilot ame pattern.
• Fig. 34 shows an incorrect pilot ame pattern. The incorrect pilot ame is not touching the
thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the
heater will shut down.
• If the pilot ame is incorrect, as shown in Fig. 33, turn heater off (see “To Turn Off Gas to
Appliance, " page 24). See Troubleshooting, page 31 - 33.
Fig. 35 - Correct Pilot Flame Pattern with
Control Knob Set to High Flame (5)
Fig. 36 - Incorrect Pilot Flame Pattern with
Control Knob Set to High Flame (5)
BURNER FLAME PATTERN
Fig. 35 shows a correct burner ame pattern. Fig. 36 shows an incorrect burner ame pattern.
• If burner ame is incorrect, as shown in Fig. 36, turn heater off (see “To Turn Off Gas to
Appliance”, page 24).
• see Troubleshooting, pages 31 through 33.
BURNER PRIMARY AIR HOLES
Air is drawn into the burner through the holes in the tting at the entrance to the burner.
These holes may become blocked with dust or lint. Periodically inspect these holes for
any blockage and clean as necessary. Blocked air holes will create soot.
Fig. 33 - Correct Pilot Flame Pattern
Fig. 34 - Incorrect Pilot Flame Pattern
More than 8 in. above top of logs
Approx. 3-6 in. above top of logs
