Sub-Zero 632-2 User Manual

7-26
Component Access / Removal
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
#3758407 - Revision B - August, 2006
Drain Trough Enclosure (601F-2)
The drain trough enclosure is secured to the back wall
of the compartment with screws and plastic supports,
just below the freezer glass shelf.
NOTE: It is not
necessary to remove the freezer glass
shelf, icemaker or compartment thermistor in order to
remove the drain trough enclosure.
To remove drain trough enclosure (See Figure 7-59):
1. Extract screws at top corners of enclosure.
2. Extract screws along bottom of enclosure.
3. Lean enclosure forward, disconnect thermistor, ice-
maker and icemaker switch electrical leads, then
pull enclosure out.
Freezer Compartment Thermistor (601F-2)
The freezer compartment thermistor is attached to the
bottom center of the drain trough enclosure, just above
the top center freezer basket slide. The thermistor wire
leads attach to the wire harness behind the drain trough
enclosure.
To remove the compartment thermistor, the drain trough
enclosure must be disconnected from the back wall
first, then (See Figure 7-60):
1. Disconnect thermistor from wire harness.
NOTE: On newer models the thermistor is hard-
wired to the control board, so it will be necessary to
cut the thermistor wires to remove it.
2. Extract thermistor mounting screw.
Icemaker Fill Tube Heater (601F-2)
The icemaker fill tube and fill tube heater are located at
top right of icemaker, just below freezer glass shelf and
above the drain trough enclosure. The icemaker fill
tube heater plugs into the wire harness behind the drain
trough enclosure.
To remove the fill tube heater, the drain trough enclo-
sure must be disconnected from the back wall first, then
(See Figure 7-61):
1. Disconnect fill tube heater from wire harness.
2. Slide fill tube heater off of fill tube.

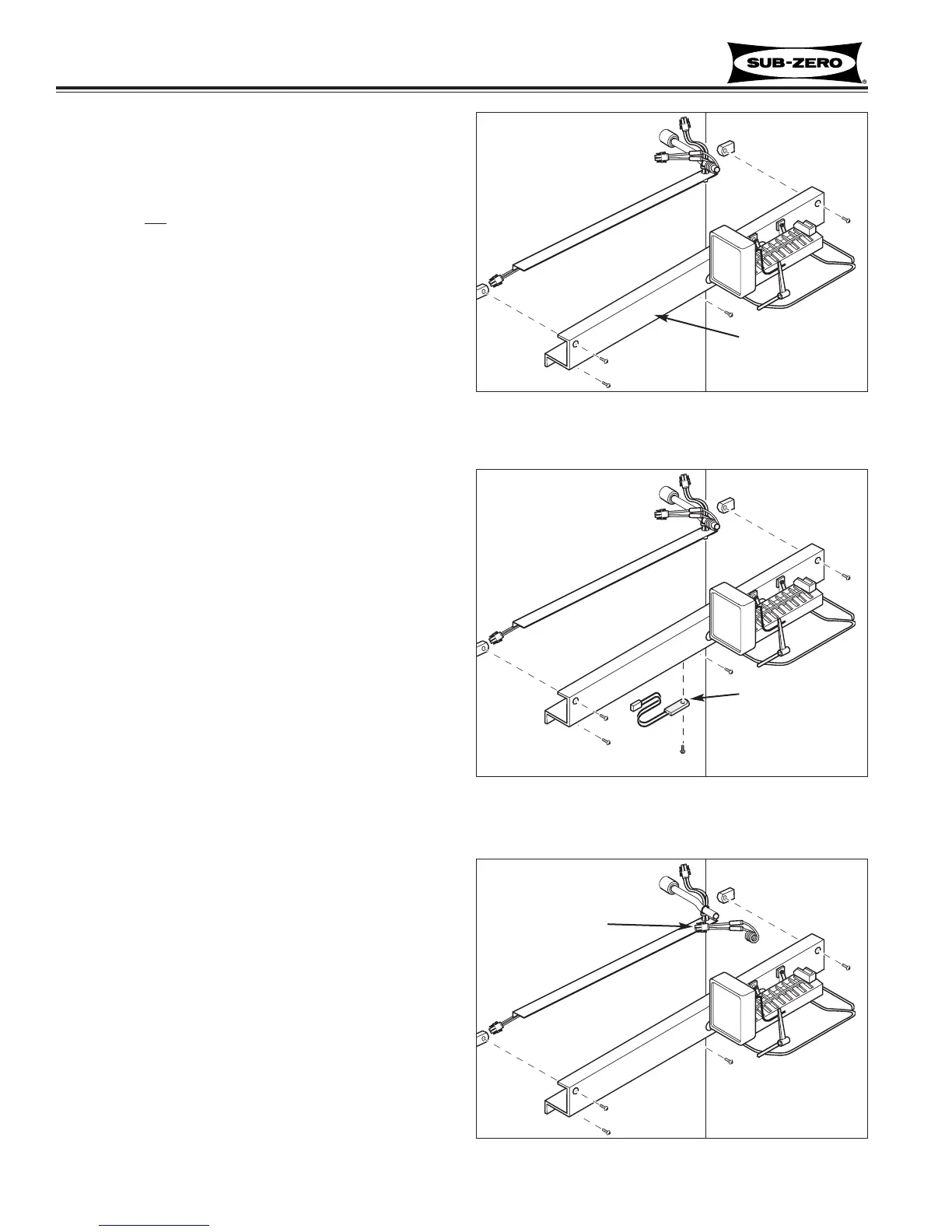

Figure 7-59. Drain Trough Enclosure
Figure 7-61. Fill Tube Hearer
Figure 7-60. Compartment Thermistor
Drain Trough
Enclosure
Fill Tube Heater
Compartment
Thermistor
