Plumbing Requirements. F
or all built-in models
with an automatic ice maker, the water supply line should
be located within the shaded area shown in the illustra-
tion. The water supply line should be connected to the
house supply with an easily accessible shut-off valve
between the supply and the unit. Do not use self-piercing
valves. A saddle valve kit (4200880) is available from your
Sub-Zero dealer. The water line must not interfere with
installation of the anti-tip brackets.
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 30 psi
(2.1 bar) to 100 psi (6.9 bar) supplied to the unit at all
times.
Plumbing Requirements
Water Supply Line 6.35 mm OD copper line
Water Pressure 2.1–6.9 bar
Excess Water Line for Connection 914 mm
13 m
m
457 mm
152
m
m
SHUT-OFF
VALVE
W
ATER LINE
457 mm
W
152
mm
76 mm
F
RONT VIEW
T
OP VIEW

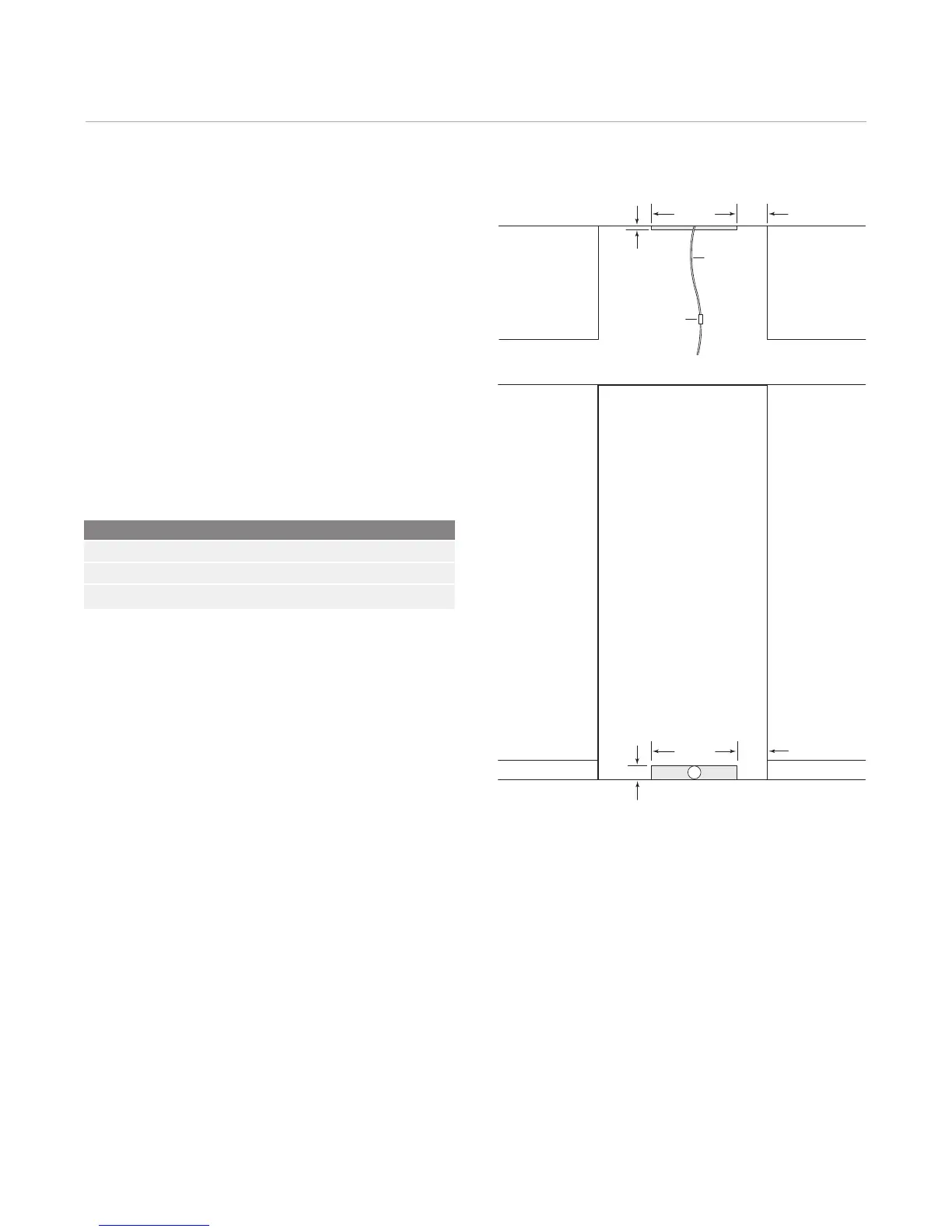

Location of water supply.
