Dual Installations 2
6

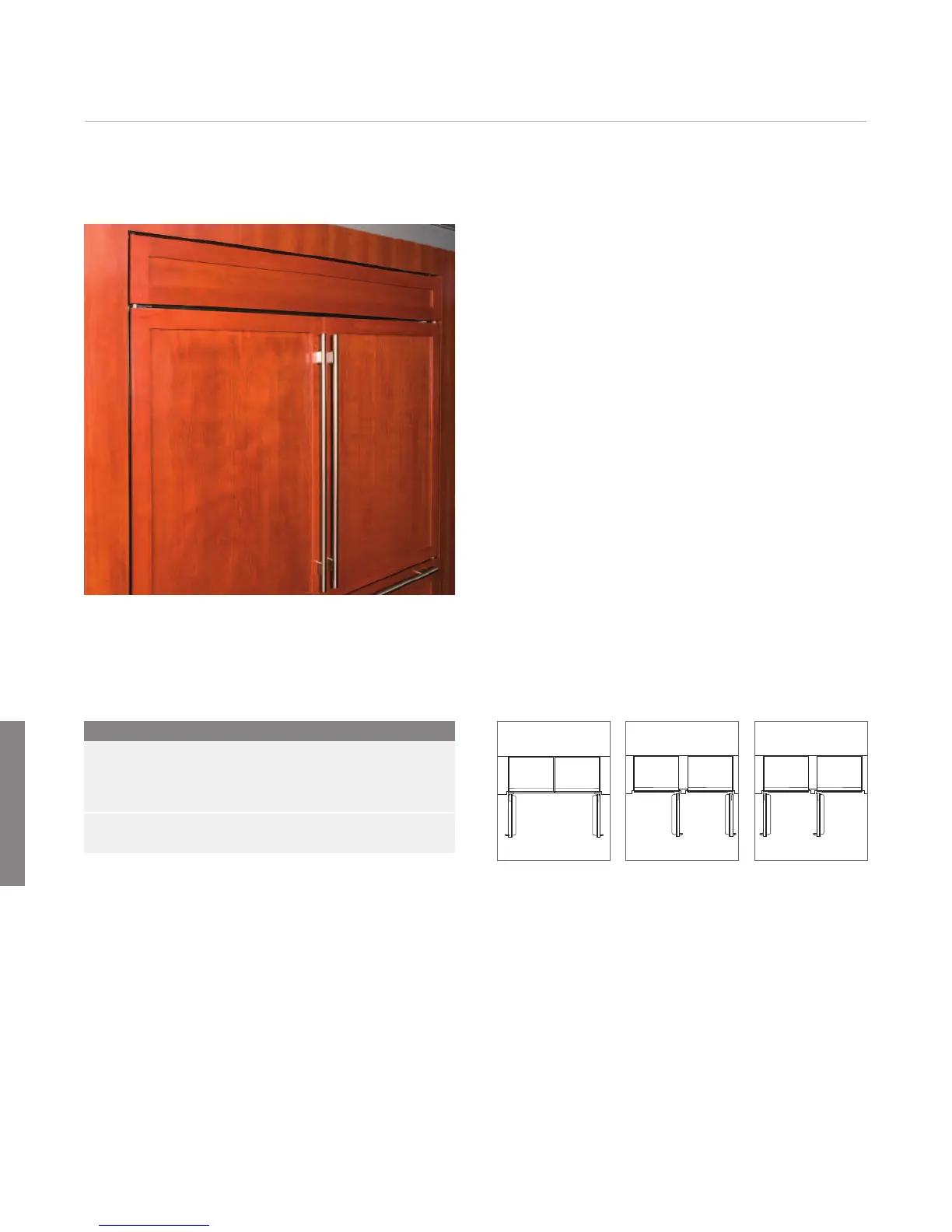

Dual Flush Inset Installation. I
nstalling two built-in
models side by side in a flush inset application will require
adjustments to the dimensions of your finished rough
opening, panel sizes and panel offsets. It will also require
a dual installation kit, available through your Sub-Zero
dealer.
Dual installations without a filler strip can only be accom-
plished using two units with opposite hinges as shown in
illustration A below. The dual installations shown in illus-
trations B and C require a filler strip. Illustration A is the
only application that will accommodate the dual wide grille.
IMPORTANT NOTE: The application shown in illustration A
can only be achieved by installing dual flush inset panels.
Failure to install dual flush inset panels will cause the
handle side of the panels to collide when closing. In this
application a dual installation accessory kit is also
required.
Dual flush inset panels and dual installation kits are avail-
able through your Sub-Zero dealer. Refer to pages 28–29
for dual flush inset panel specifications and page 30 for
information on dual installation accessory kits.
Dual Flush Inset Installation
Dual Installation Panel Requirements
MAX WEIGHT PER PANEL
ICBBI-36R, ICBBI-36RG and ICBBI-36F 34 kg)
All Other Models 23 kg)
Dual Wide Grille Panel 12 kg)
MIN PANEL THICKNESS
Flush Inset Panels 16 mm
Illus. A
FILLER STRIP REQUIRED FILLER STRIP REQ
Illus. B Illus. C
