Dual Installations 2
4
Dual Standard Installations. T
wo overlay or stain-
less steel units may be placed side by side in a dual
installation. Some dual standard installations will require a
dual installation kit, available through your Sub-Zero
dealer. If you are installing two units side by side in a
flush inset application refer to page 27.
A custom filler strip can be used in between two units in
an overlay or stainless steel design application. It is
recommended that the filler strip be at least 51 mm wide,
to prevent condensation between the units. Be sure to
add the filler strip width to your rough opening width.
Refer to the full-scale template on page 35.
Dual installations without a filler strip can only be accom-
plished using two units with opposite hinges as shown in
illustration A below. The dual installations shown in illus-
trations B and C require a filler strip.
IMPORTANT NOTE: For the application shown in illustra-
tion A, a dual installation accessory kit is required. Refer
to page 30 for information on dual installation accessory
kits.

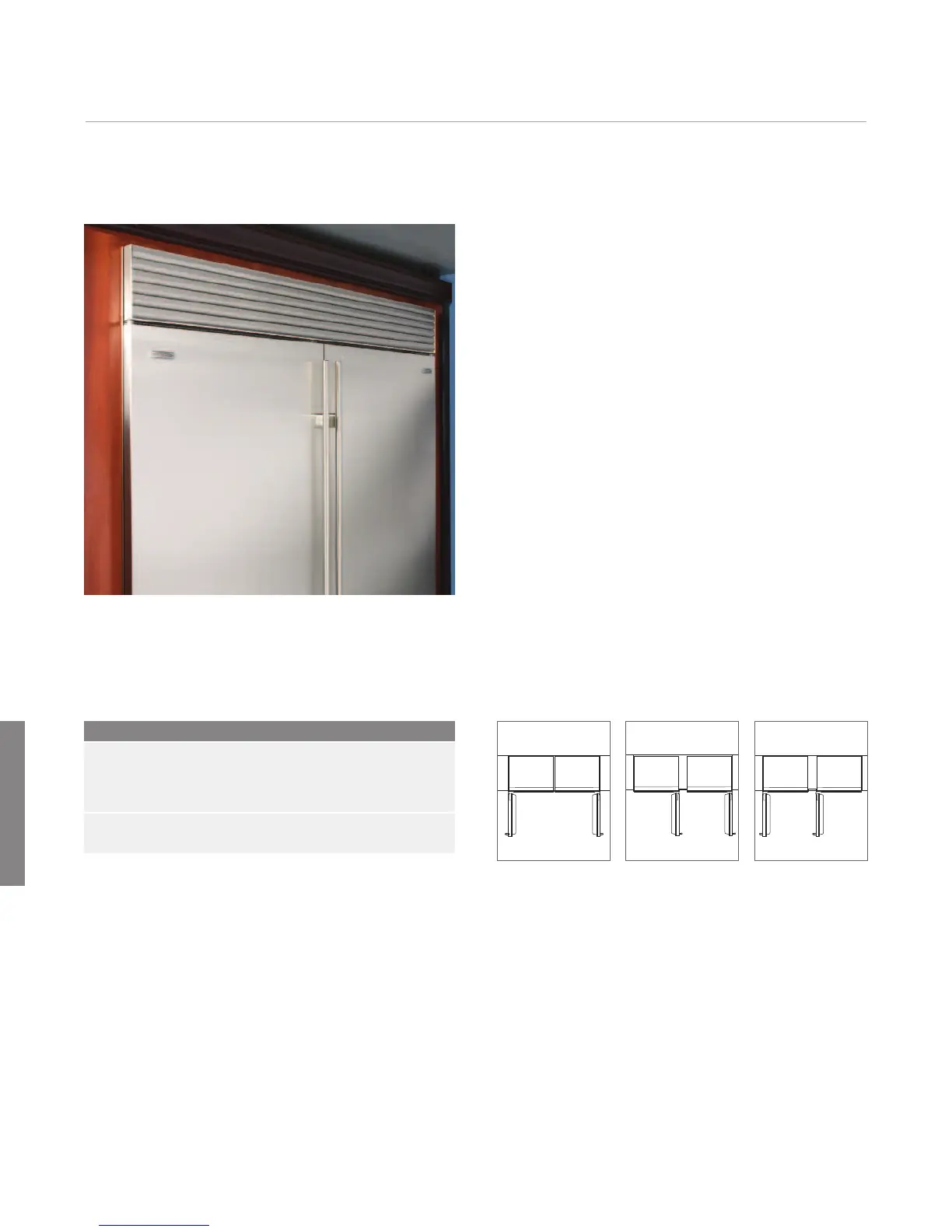

Dual Standard Installation
Dual Installation Panel Requirements
MAX WEIGHT PER PANEL
ICBBI-36R, ICBBI-36RG and ICBBI-36F 34 kg)
All Other Models 23 kg)
Dual Wide Grille Panel 12 kg)
MIN PANEL THICKNESS
Overlay and Flush Inset Panels 16 mm
Illus. A
Illus. B Illus. C
Dual Installations
