Planning Information 9
Standard Installation Opening Dimensions
Overlay and Classic Stainless Steel Models
Opening Width A
ICBBI-36R, ICBBI-36RG and ICBBI-36F 902 mm
ICBBI-30U and ICBBI-30UG 746 mm
ICBBI-36U and ICBBI-36UG 902 mm
ICBBI-36S 902 mm
ICBBI-42S and ICBBI-42SD 1054 mm
ICBBI-48S and ICBBI-48SD 1206 mm
IMPORTANT NOTE: If two units are installed side by side,
refer to pages 24–25 for dual standard installations.
Classic stainless steel models are ready to install out of the
box.

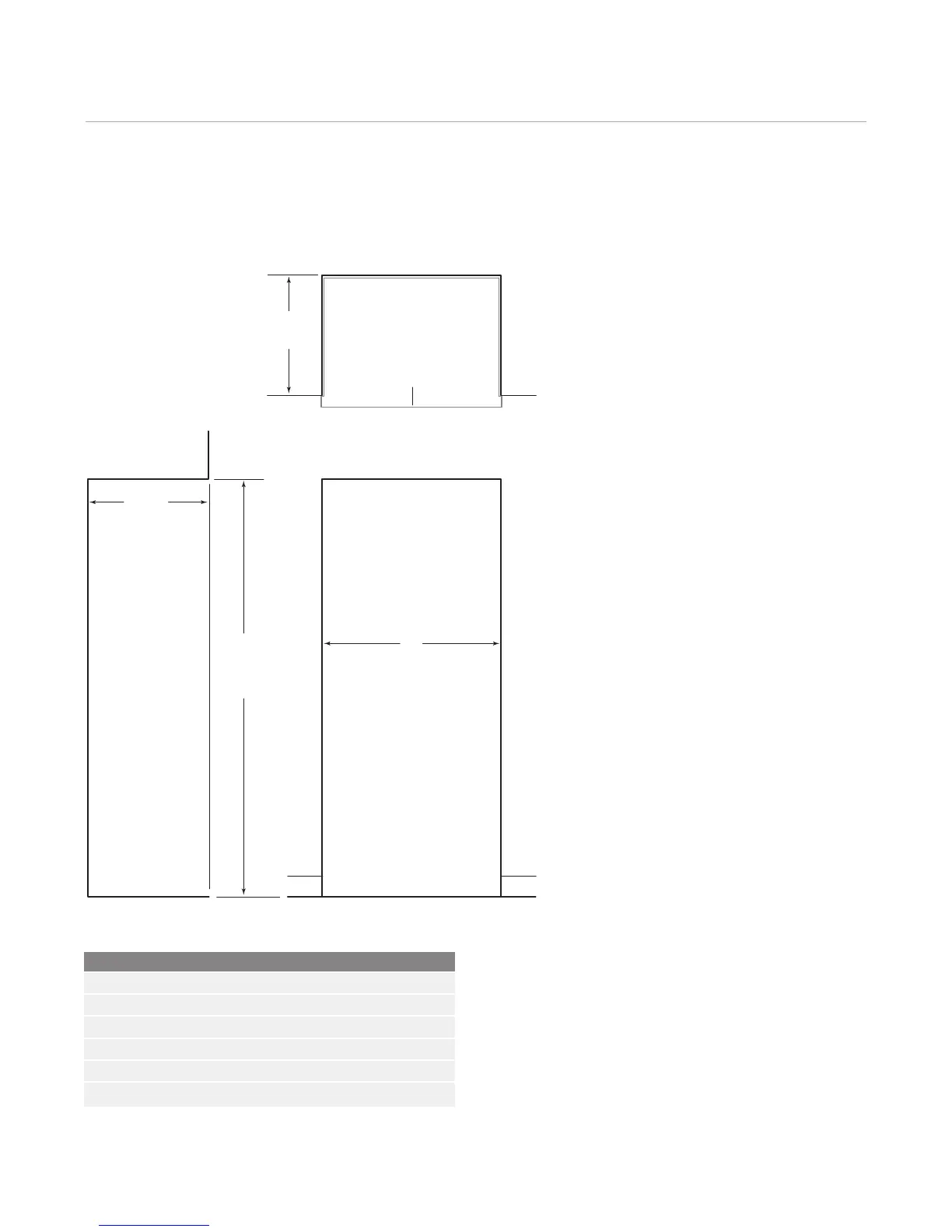

SIDE VIEW
610 m
m
OPENING DEPTH
2127 mm
OPENING
HEIGHT
2108 mm
min
6
10
mm
OPENING
D
EPTH
FRONT VIEW
TOP VIEW
A
OPENING WIDTH
OUTLINE
O
F UNIT WITH
1
9
mm PANEL
s
