Routing Detail.
MAIN
FRAME
SIDE PANEL
ROUTING
25 mm
48 mm
3 mm
13 mm
Side Panels 2
3
Side Panels. S
ide panels can be used with all overlay,
flush inset and stainless steel design applications. When
planning for side panels with the installation of a built-in
model, you need to be aware of the space configuration
to achieve a pleasing fit. Depending on the exact panel
you are using with your unit, the height of the panel may
vary.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
When installing a built-in unit with a custom side panel,
an accessory kit (7003407) is required. Classic stainless
steel and white enamel side panels are also available
through your Sub-Zero dealer.
The side panel will need to be a minimum of 610 mm
deep and 13 mm thick. Refer to the side panel dimen-
sions illustration for additional specifications. Routing will
be necessary in order for the side panel to fit flush
against the side of the unit. Refer also to the routing
detail illustration.
IMPORTANT NOTE: If you have a Model ICBBI-30U,
ICBBI-30UG, ICBBI-36U or ICBBI-36UG, extra routing will
be necessary to avoid having the panel hit the refrigerator
lower hinge plate.
2134 m
m
610 m
m
ROUT TO
5 m
m
(OVER-AND-UNDER
MODELS)
OPTIONAL
T
OE KICK
CUT-OUT
102 mm
521
mm
1
46
m
m
48 m
m
25 mm
108 mm
R
OUT TO
3 m
m
FRONT
O
F SIDE
P
ANEL
67 mm

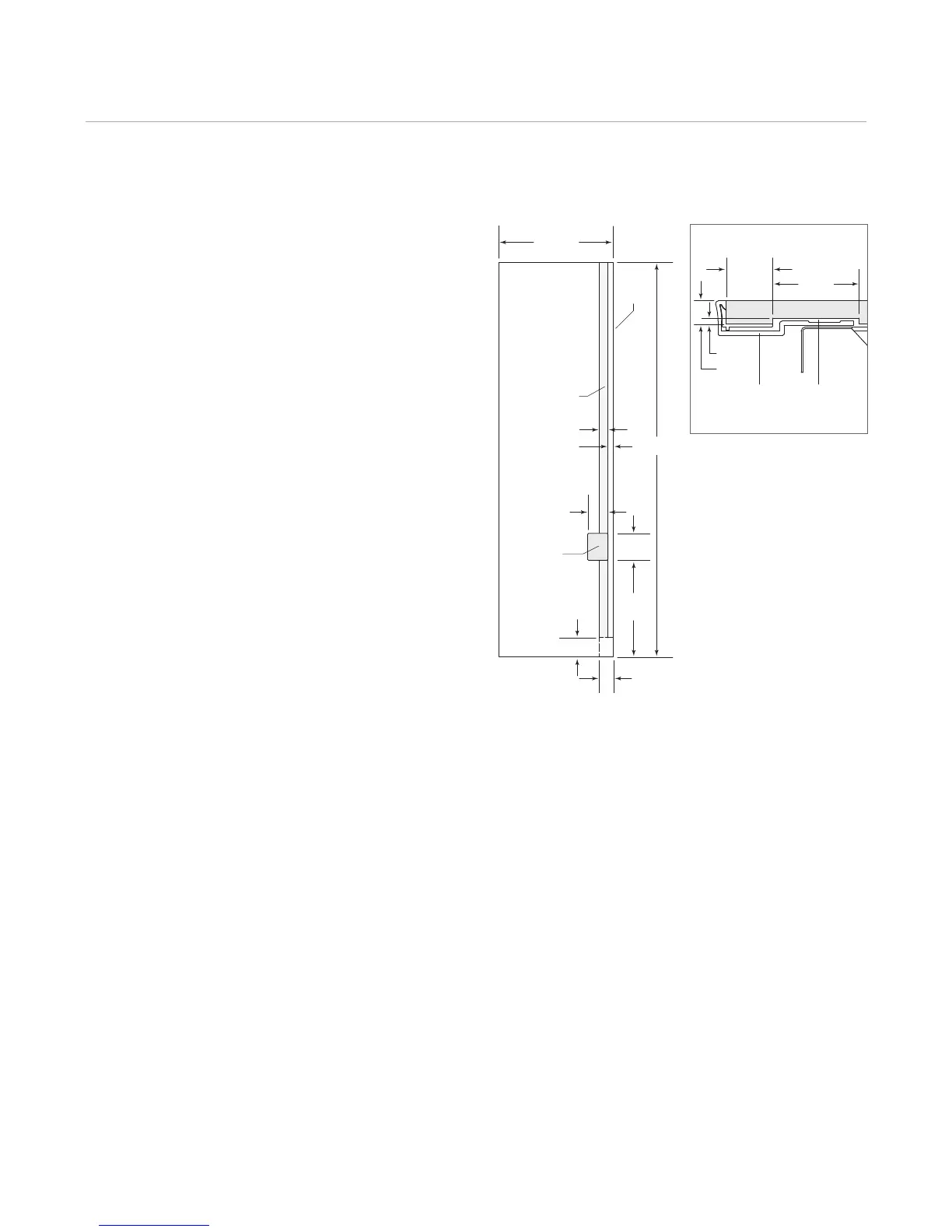

Side panel dimensions.
