Panel Thickness and Handle Profile 3
8

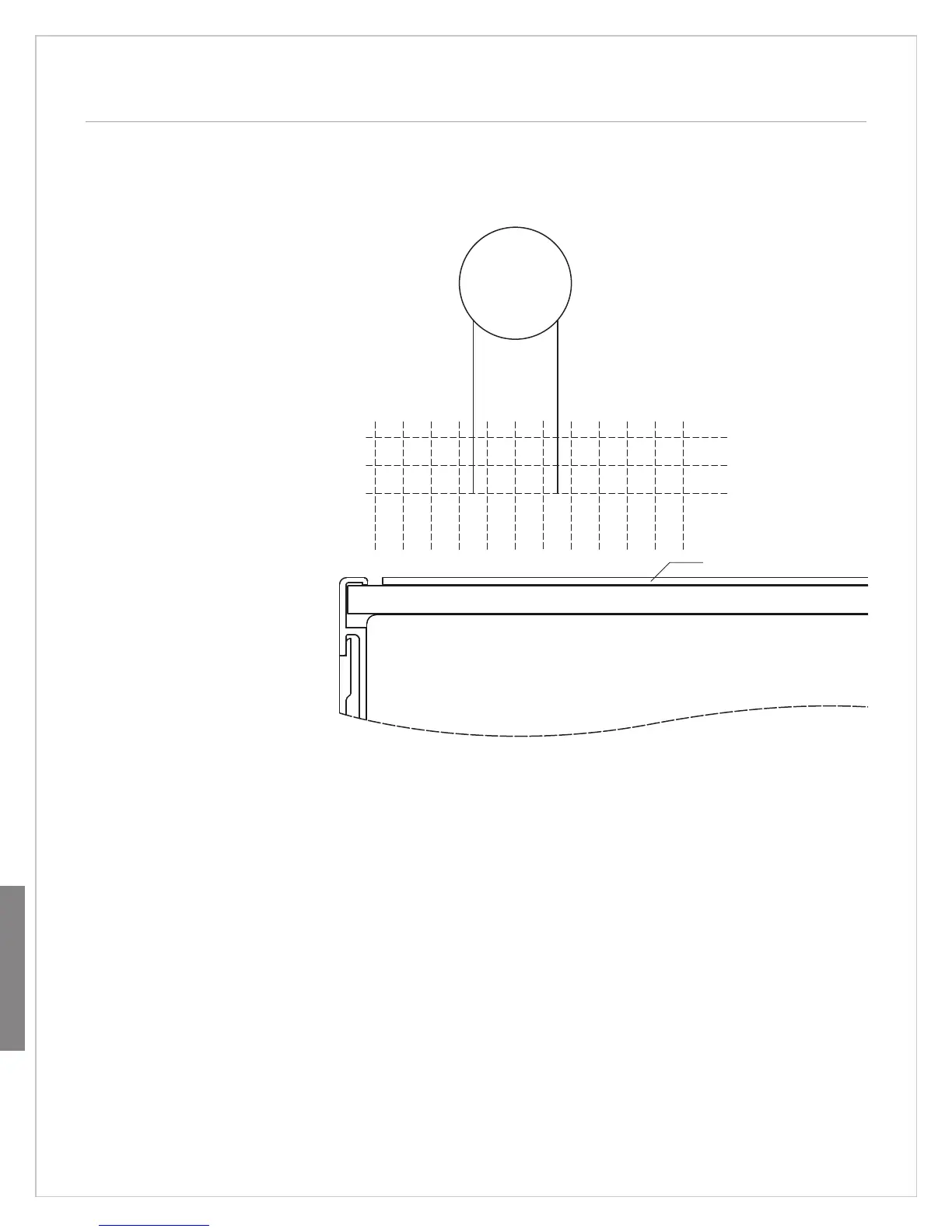

This full-scale template shows
handle placement and panel
thickness for overlay and flush
i
nset applications.
IMPORTANT NOTE: Panel thick-
ness does not include the 6 mm
backer panel and 3 mm spacer
p
anel.
IMPORTANT NOTE: The panel
must be a minimum of 16 mm
thick to support mounting the
handle hardware.
Mount door handles close to the
opening edge of the door for
ease of opening.
6 mm BACKER PANEL
DOOR
DEPTH OF TUBULAR, CURVED
AND PRO HANDLES
25
mm
76
m
m
32 mm PANEL
25 mm PANEL
19 mm PANEL
51
m
m
3 mm SPACER PANEL
Full-Scale Templates
