北米Model "A1760BE-A" EDITED: 2020/ 10/ 1
By operating “ ” or “ ” of the control
switch, the screens and selection items
can be switched. When the ENTER button
is pushed, the item can be selected and
set.
& Basic screens
S03BP10

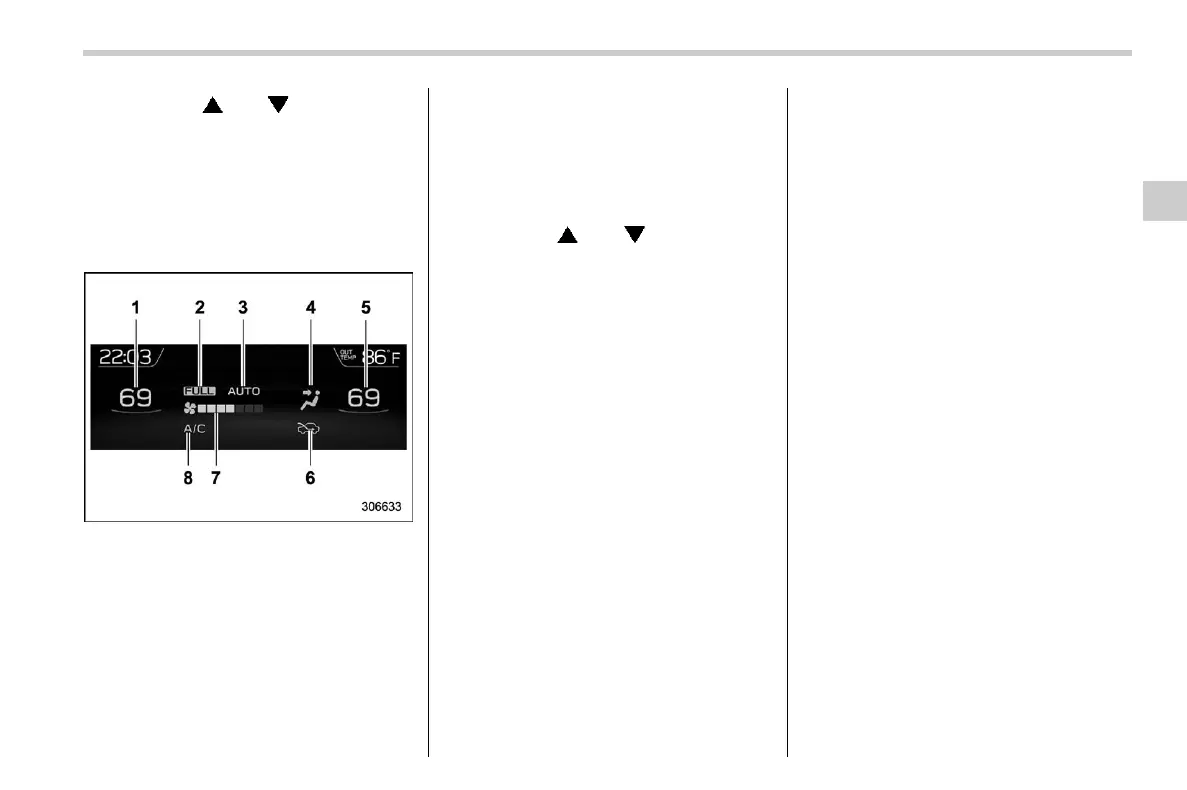

! Climate control screen
S03BP1017
Climate control screen
1) Set temperature indicator (left-hand side)
2) FULL AUTO indicator
3) AUTO indicator
4) Airflow mode indicator
5) Set temperature indicator (right-hand
side)
6) Air inlet selection indicator
7) Fan speed indicator
8) Air conditioner ON indicator
When operating the climate control sys-
tem, the basic screen will change to the
climate control screen. For details about
the climate control system, refer to “Cli-
mate control” F4-1.
! Information screen
S03BP1019
Operate the “ ” or “ ” of the control
switch to select the screen that is always
displayed on.
– CONTINUED –
Instruments and controls/Multi-function display (color LCD)
3-47
