& Type B
S04AG02

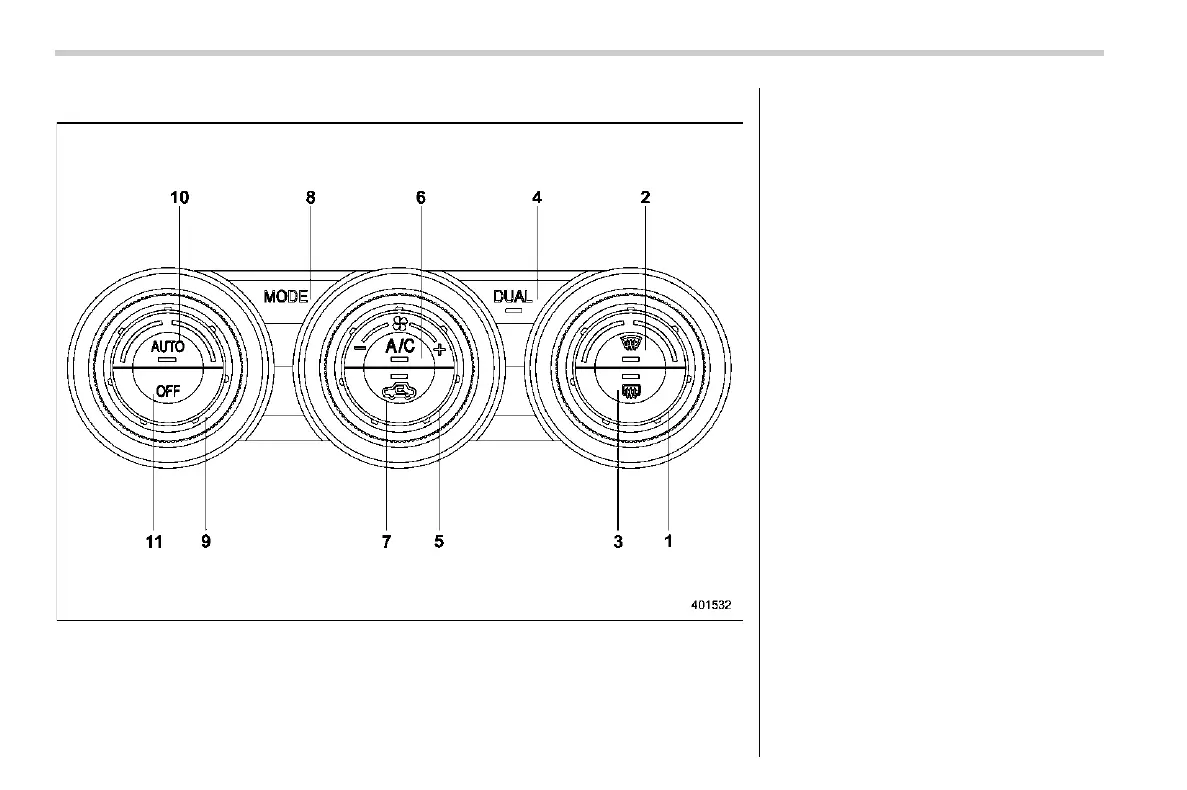

1) Temperature control dial (Refer to “Auto-
matic climate control operation” F4-5
and/or “Temperature control” F4-8.)
2) Defroster button (Refer to “Airflow mode
selection” F4-6.)
3) Rear window defogger button (Refer to
“Defogger and deicer” F3-86.)
4) DUAL mode button (Refer to ““DUAL”
mode (type B)” F4-8.)
5) Fan speed control dial (Refer to “Fan
speed control” F4-8.)
6) Air conditioner button (Refer to “Air
conditioner control” F4-8.)
7) Air inlet selection button (Refer to “Air
inlet selection” F4-9.)
8) Airflow mode selection button (Refer to
“Airflow mode selection” F4-6.)
9) Temperature control dial (Refer to “Auto-
matic climate control operation” F4-5
and/or “Temperature control” F4-8.)
10) AUTO button (Refer to “Automatic cli-
mate control operation” F4-5.)
11) OFF button (Refer to “Automatic climate
control operation” F4-5.)
