北米Model "A1760BE-A" EDITED: 2020/ 10/ 1
& Components
S01AH11

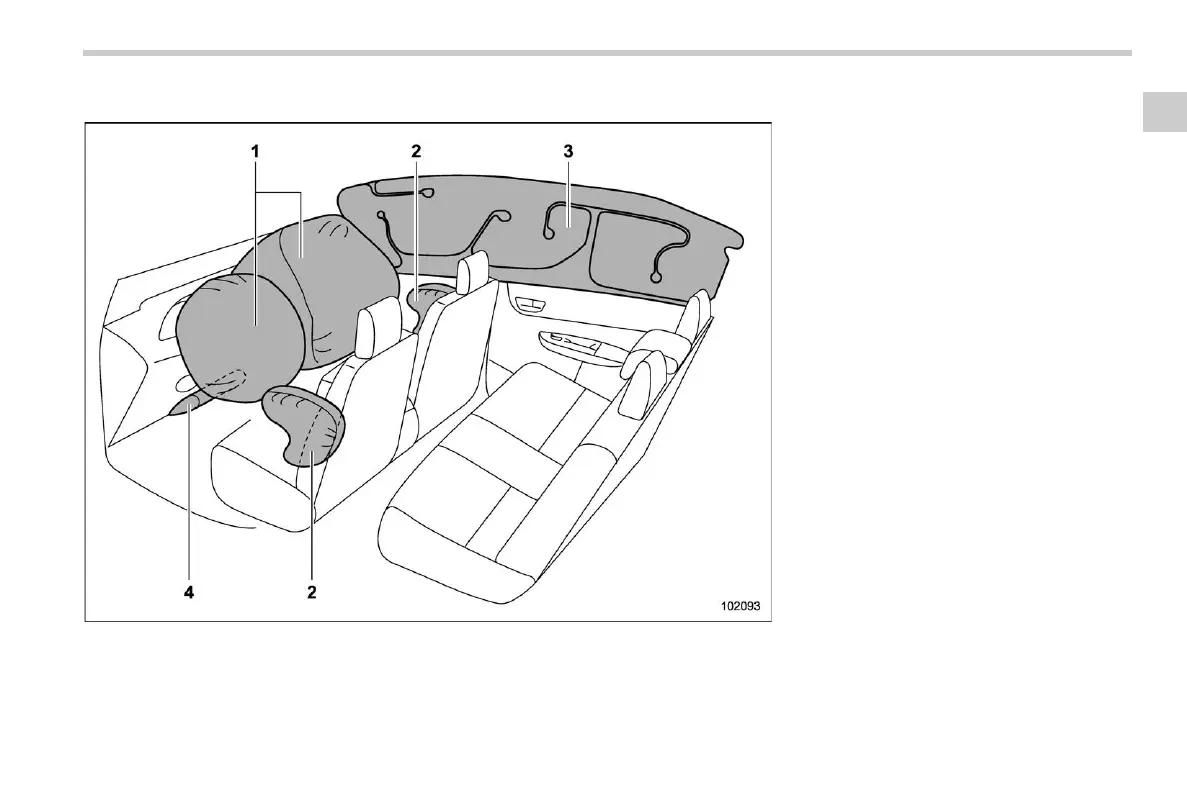

1) SRS frontal airbag
2) SRS side airbag
3) SRS curtain airbag
4) SRS knee airbag
The SRS airbags are stowed in the
following locations.
Driver’s SRS frontal airbag: in the center
portion of the steering wheel
Front passenger’s SRS frontal airbag:
near the top of the dashboard under an
“SRS AIRBAG” mark
SRS side airbag: in the door side of each
front seat seatback which bears an “SRS
AIRBAG” label
SRS curtain airbag: in the roof side
(between the front pillar and a point behind
the rear quarter glass)
An “SRS AIRBAG” mark is located at the
top of each center pillar and rear pillar.
SRS knee airbag: under the steering
column
– CONTINUED –
Seat, seatbelt and SRS airbags/SRS airbag (Supplemental Restraint System airbag)
1-43
