Subaru WRX 2021 - Climate Control Panel; Type a

(233,1)
北米Model "A1760BE-A" EDITED: 2020/ 10/ 1

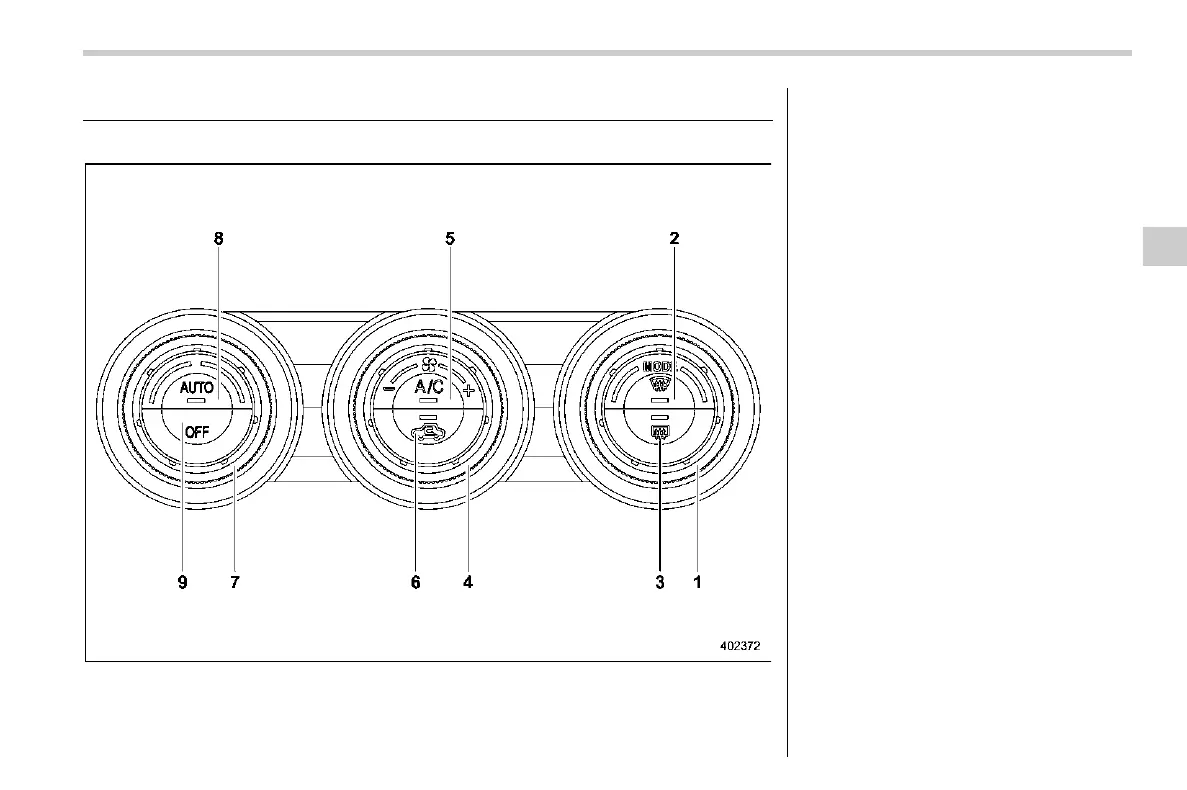

Climate control panel
S04AG
& Type A
S04AG01
1) Airflow mode selection dial (Refer to
“Airflow mode selection” F4-6.)
2) Defroster button (Refer to “Airflow mode
selection” F4-6.)
3) Rear window defogger button (Refer to
“Defogger and deicer” F3-86.)
4) Fan speed control dial (Refer to “Fan
speed control” F4-8.)
5) Air conditioner button (Refer to “Air
conditioner control” F4-8.)
6) Air inlet selection button (Refer to “Air
inlet selection” F4-9.)
7) Temperature control dial (Refer to “Auto-
matic climate control operation” F4-5
and/or “Temperature control” F4-8.)
8) AUTO button (Refer to “Automatic cli-
mate control operation” F4-5.)
9) OFF button (Refer to “Automatic climate
control operation” F4-5.)
– CONTINUED –
Climate control/Climate control panel
4-3
4
