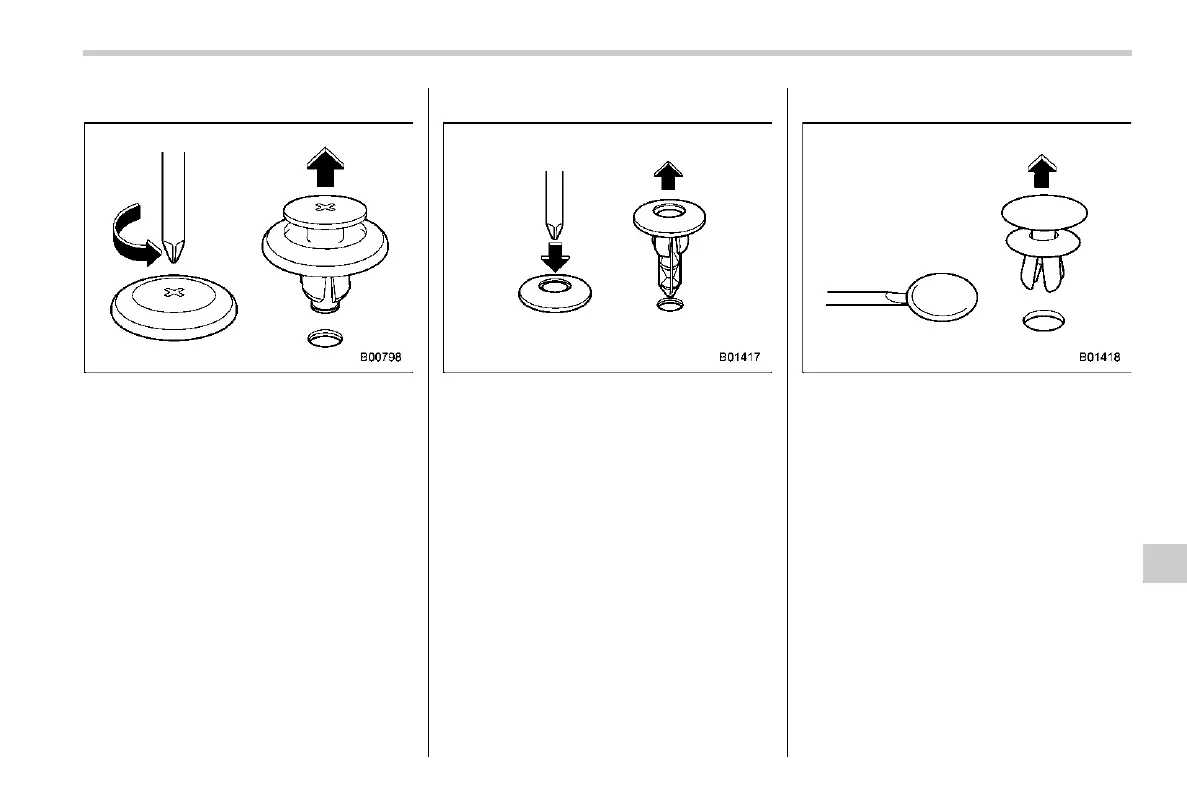

! Type D clips
S11BI010104
1. Turn the clip counterclockwise using a
Phillips screwdriver until the center portion
of the clip is raised.
2. Remove the entire clip by pulling it up.
! Type E clips
S11BI010105
1. Push the center portion of the clip
using a Phillips screwdriver until the clip is
raised.
2. Remove the entire clip by pulling it up.
! Type F clips
S11BI010106
1. Pull out the head of the clip using a flat-
head screwdriver as shown in the illustra-
tion.
2. Remove the entire clip by pulling it up.
– CONTINUED –
