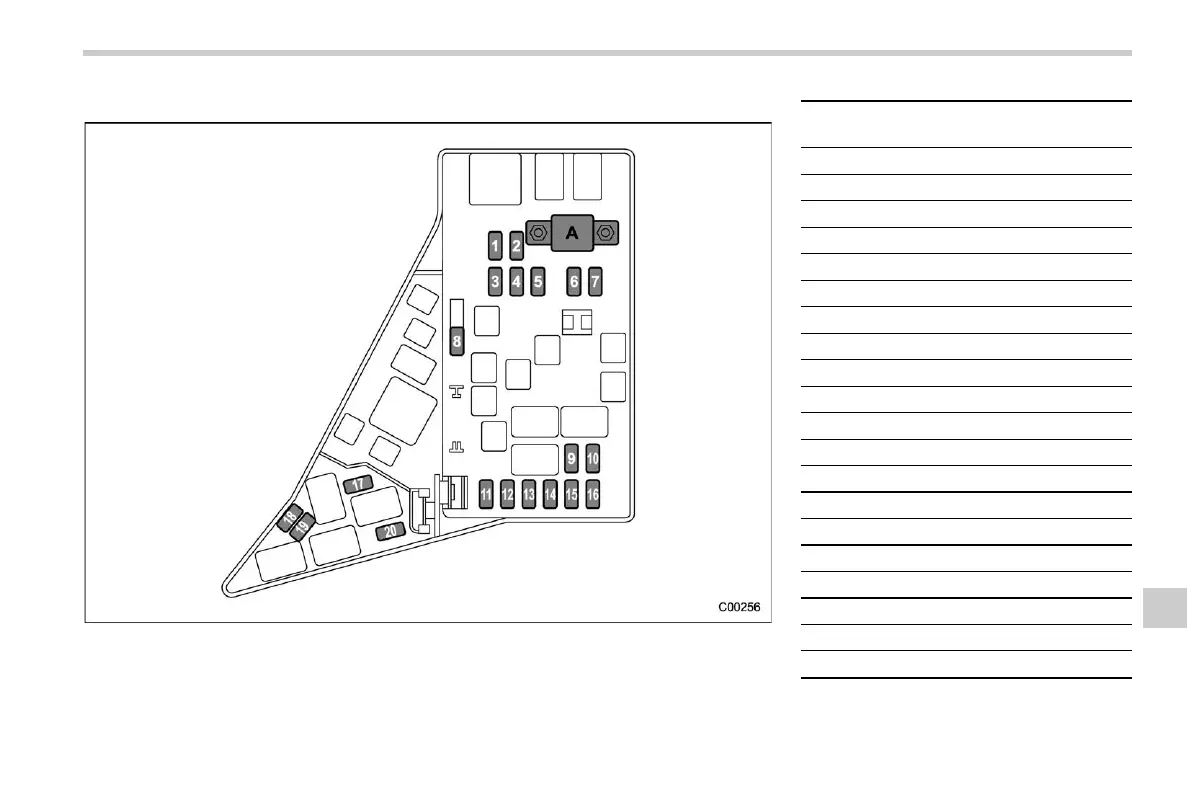

北米Model "A1760BE-A" EDITED: 2020/ 10/ 1
! Except STI
S12AB0202
A) Main fuse
Fuse
panel
Fuse
rating
Circuit
1 30 A ABS SOL
2 25 A MAIN FAN
3 25 A SUB FAN
4 Empty
5 25 A AUDIO AMP
6 30 A H/L LO
7 15 A H/L HI
8 20 A BACK UP
9 15 A HORN
10 25 A R.DEF
11 15 A FUEL PUMP
12 20 A (Transmission control unit)
13 7.5 A EGI+B
14 15 A HAZARD
15 15 A LIGHTING
16 7.5 A ALT-S
17 Empty
18 20 A INJ
19 15 A H/L LO RH
20 15 A
H/L LO LH
Specifications/Fuses and circuits
