600H, 750, 750H, 750HH, 825, 900, 900H, 1050 T3 CAT User Manual 2: Description
02250197-981 R01
Subject to EAR, ECCN EAR99 and related export control restrictions. 23

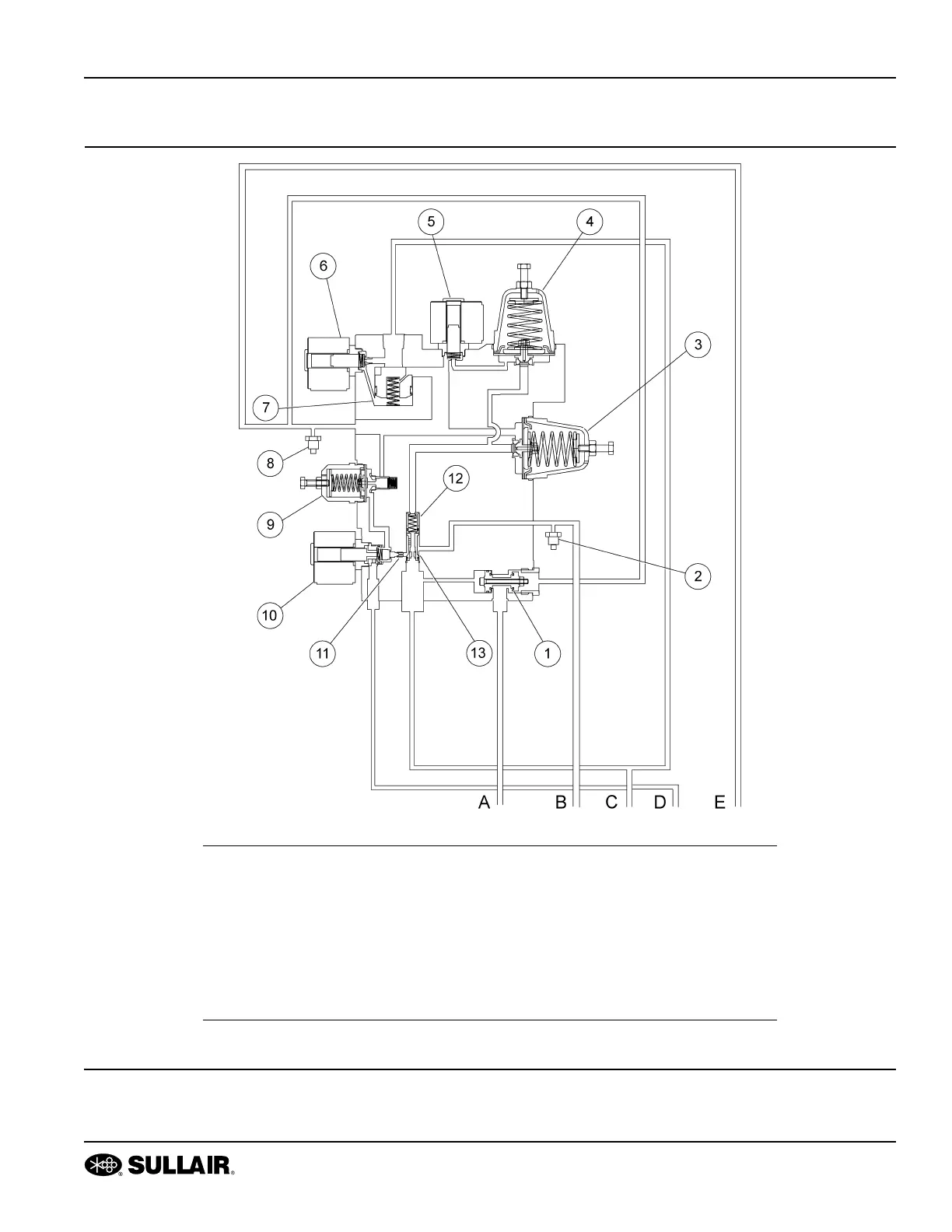

Figure 2-4: Control manifold—all models
1. Blowdown valve 8. P1 pressure transducer
2. P2 pressure transducer 9. Reducing regulator
3. High pressure bypass regulator 10. Run/Start solenoid
4. Low pressure bypass regulator 11. Start orifice
5. Hi/lo solenoid 12. Check valve
6. Recirculating solenoid 13. Run orifice
7. Recirculating valve
