HORIZONTAL CLOSE COUPLED PUMP SECTION 8
158
8.2.2 DISASSEMBLY
The following tools and equipment are needed for
disassembly.
1. Soft plastic or wooden mallet.
2. 5/8” wrench or socket.
3. 10 mm socket wrench.
4. 13 mm wrench or socket.
5. 5 mm Allen wrench.
6. Penetrating oil.
7. 3/4” wood dowel (Approx. 6” long).
8. Small O.D. Snap Ring Pliers.
9. Cealube G or similar glycol base lubricant.
(DO NOT use petroleum products.)

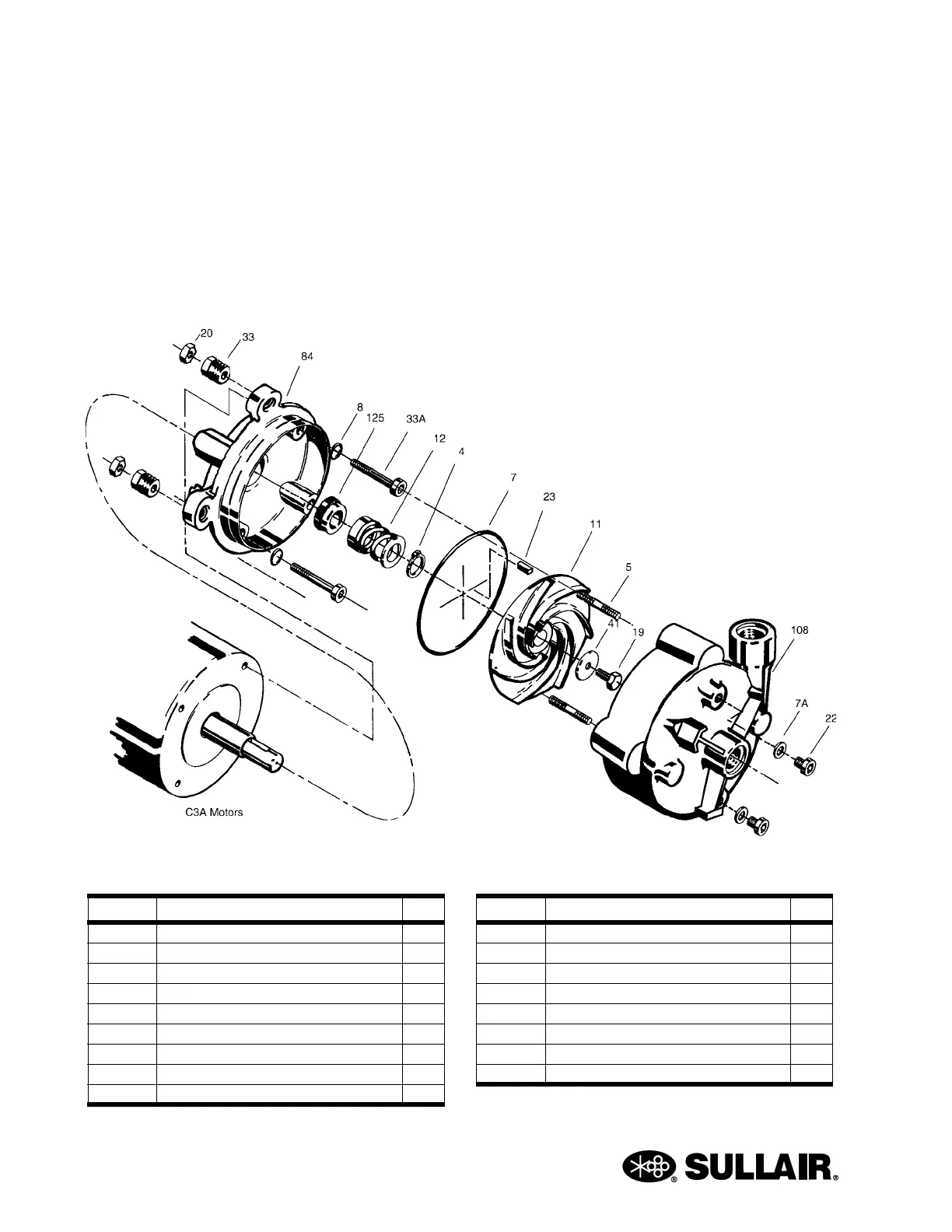

Figure 8-1: Exploded View of Pump
**Includedin SKC4100, SKC5100, SKC6100 Mechanical Seal / O Ring Kits
KEY NO. NAME/DESCRIPTION QTY
84 Motor Bracket 1
108 Casing 1
7 “O” Ring - Casing** 1
11 Impeller 1
12 Seal - Rotating Element** 1
125 Seal - Stationary Seat** 1
5 Stud - Casing 4
20 Jam Nut 4
33 Adjusting Screw 4
33A Socket Head Screw 4
8 “O” Ring - Screw** 4
4 Snap Ring** 1
23 Drive Key** 1
19 Impeller Screw 1
41 Washer 1
22 Drain Plug (SAE) 1
7A “O” Ring - Drain** 1
KEY NO. NAME/DESCRIPTION QTY
