38 Sun XVR-600 Graphics Accelerator Installation and User’s Guide • May 2004
Framelock Cable Assembly
The framelock cable assembly, FIGURE 6-1, is a Y-shaped cable assembly with three
connectors for daisy-chaining multiple Sun XVR-600 graphics accelerator within a
computer system. See Appendix B, “Stereo Output Port” on page 48, for the stereo
connector pinout signals.

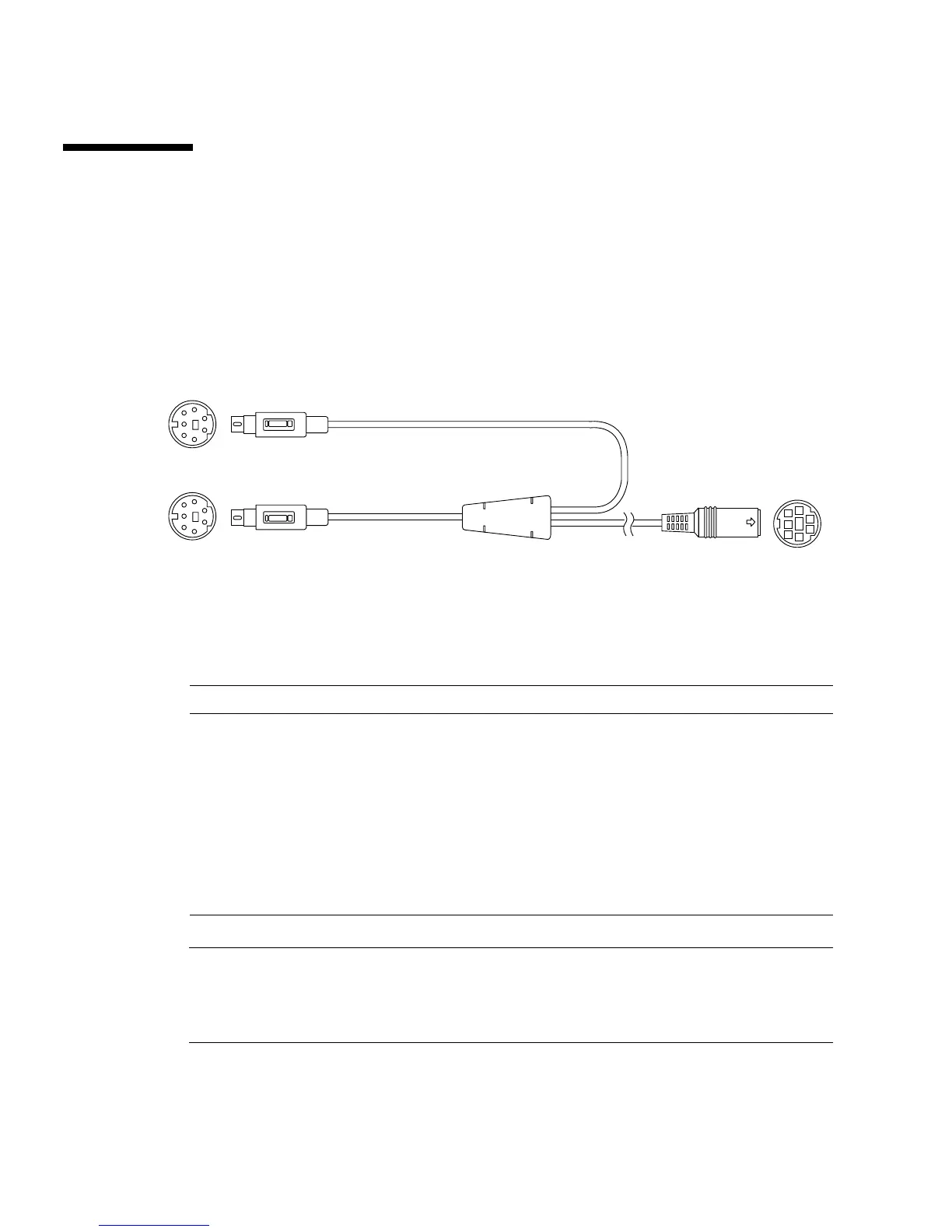

FIGURE 6-1 Framelock Cable Assembly
Note – There can only be one master Sun XVR-600 graphics accelerator device. You
must configure all other Sun XVR-600 graphics accelerator devices as slaves. See the
section “Configuring Sun XVR-600 Graphics Accelerators for Framelocking” on
page 36.
TABLE 6-1 Framelock Cable Connections
Framelock Connector Description
Master connector
(shortest cable-male)
Connects into the stereo connector located on the Sun XVR-600
graphics accelerator that is designated as the master device. It also
plugs into the daisy-chain connector for slave Sun XVR-600
graphics accelerators.
Slave connector
(longest cable male)
Connects into the stereo connector located on the Sun XVR-600
graphics accelerator that is designated as a slave device.
Daisy chain/stereo
glasses connector
(female connector)
Can connect a pair of stereo glasses directly into this connector or
the connector can be used to daisy chain to other framelock cables
for slave Sun XVR-600 graphics accelerator devices.
Master mode connector
Slave mode connector
Daisy-chain and stereo
glasses connector
