Sun Microsystems XVR-600 - Stereo Output Port

48 Sun XVR-600 Graphics Accelerator Installation and User’s Guide • May 2004
Stereo Output Port
FIGURE B-3 and TABLE B-2 shows the Sun XVR-600 graphics accelerator stereo DIN7
connector and pinout signals.

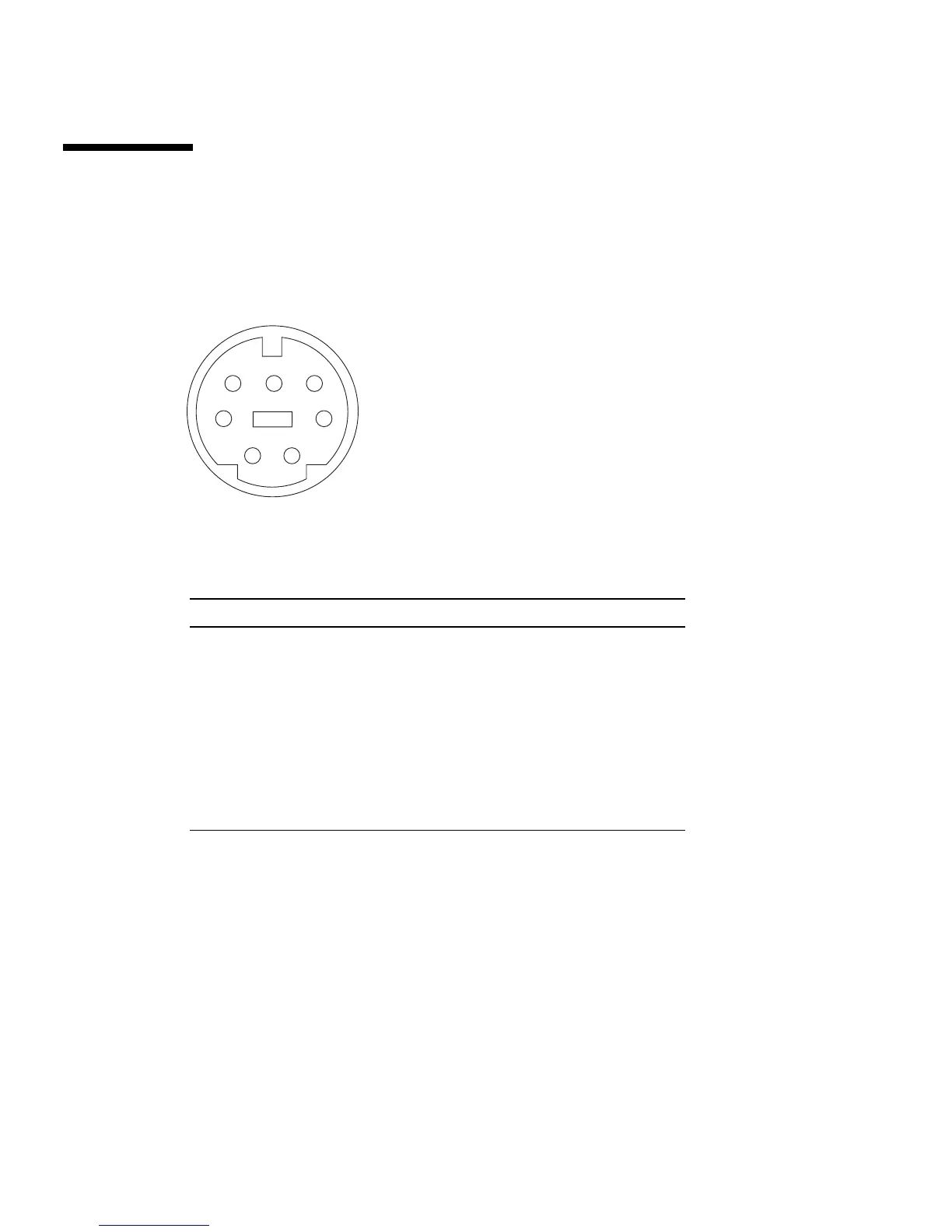

FIGURE B-3 Sun XVR-600 Graphics Accelerator 7-Pin DIN Female Stereo Connector
TABLE B-2 Sun XVR-600 Graphics Accelerator Stereo Connector Pinout
Pin Signal
1 Signal ground
2 5.0V (Fused, supplies up to 300mA, limited to 1.0A)
3 12.0V (Fused, supplies up to 300mA, limited to 1.0A)
4 Master stereo field Select Out
5 Slave stereo field Select In
6 No connection
7 No connection
6
5
3
2
4
7
1
