36 Function Parameter Table
E500 Series Universal Low-Power Inverter
The basic running frequency is the minimum frequency at the maximum voltage
of inverter output. It is generally the motor’s rated frequency.
The maximum output voltage is the output voltage corresponding to the inverter
output basic running frequency, and it is the motor’s rated voltage.
The
two items of function parameters need to be set according to motor parameter,
and do not need any modification unless in special cases.
The transit acceleration and deceleration time between initial running frequency
and jog frequency.
Jog running is a special running mode of the inverter. Within the effect period of
jog signals, the inverter runs at the frequency set by this parameter.
No matter the inverter is initially stopped or running, it can receive jog signals.

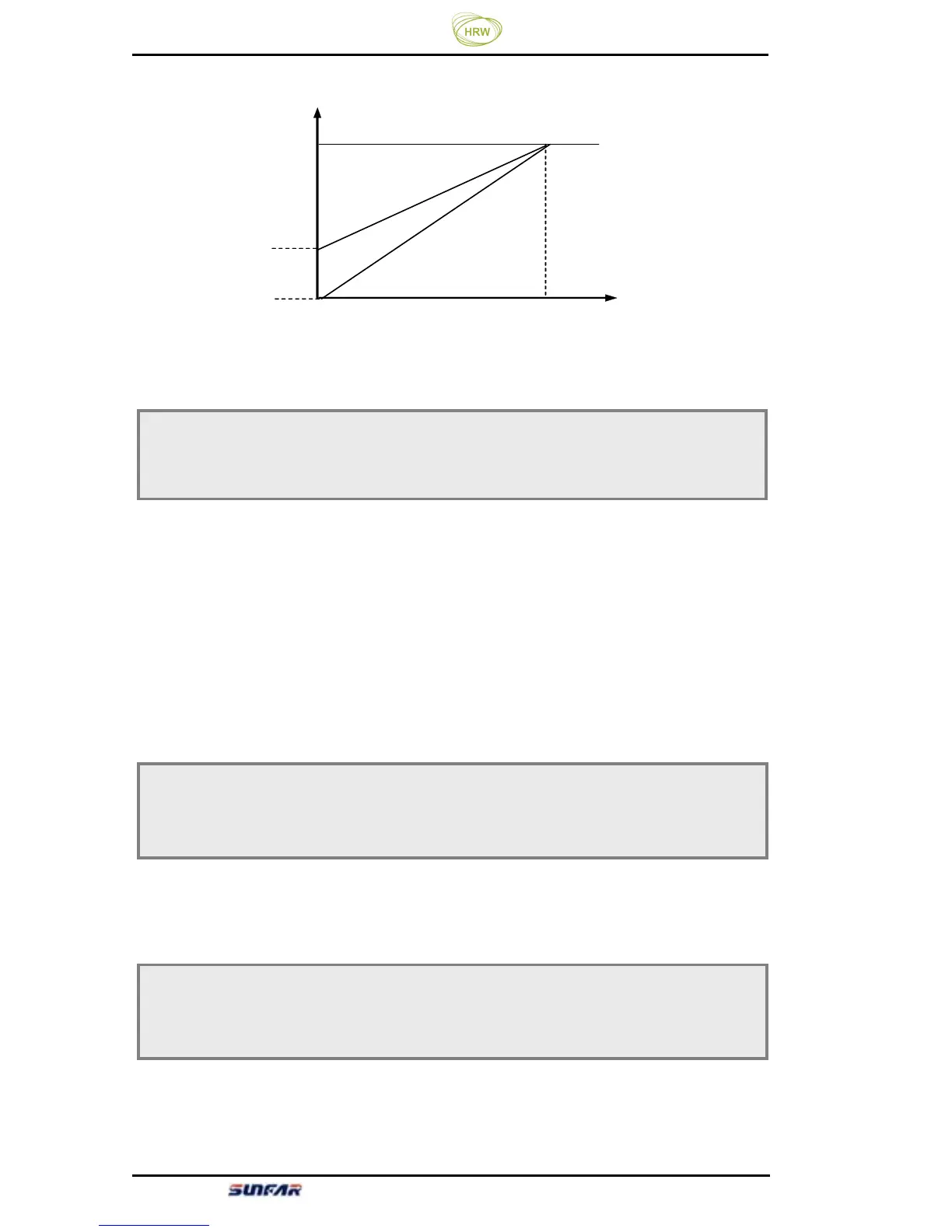

Figure 6-4 Torque Boost Sketch
F0.12 Basic running frequency Setting range: 5. 0Hz ~ upper limiting frequency
F0.13 Maximum output voltage Setting range: 25 ~ 250V/50 ~ 500V
提升
电
频率
[F0.12]
电压
[F0.13]
[F0.11]
F0.16 FWD jog frequency Setting range: 0.0Hz ~[F0.04]
F0.17 REV jog frequency Setting range: 0.0Hz~[F0.04]
F0.14 Jog acceleration time Setting range: 0.1 ~600.0Sec
F0.15 Jog deceleration time Setting range: 0.1 ~600.0Sec
Voltage
Boost
voltage
Frequency
