Functional Details 37
E500 Series Universal Low-Power Inverter
LED UNITS: Running direction
0: Consistent with the set direction 1: Reverse with the set direction
LED Tens: Jog priority selection
0: Jog priority highest
1. Jog priority lowest
If the jog priority is set to the highest, the pripirty of each freqeuncy source is as
below:
Priority level Priority Set frequency source
High
Low
1 Jog frequency (jog running effective)
2 External terminal selection multi-speed frequency
3 Selection of frequency setting channel ([F0.00] parameter)
0: Output lower limiting frequency [F0.03] when it is lower than the lower
limiting frequency [F0.03]
1: Output zero frequency when it is lower than the lower limiting frequency
[F0.03]
This parameter is used to set hysteresis to avoid fluctuation around the set
frequency zero point. When the set frequency is lower than f(f=lower limiting
frequency-2Hz), the inverter runs at zero frequency. When the set frequency is
higher than the lower limiting frequency, the inverter runs at the set frequency.
Refer to Figure 6-5.
F0.18 Setting of auxiliary functions Setting range: 0000 ~ 0011
F0.19 Lower limiting frequency functioning mode Setting range: 0000 ~ 0001

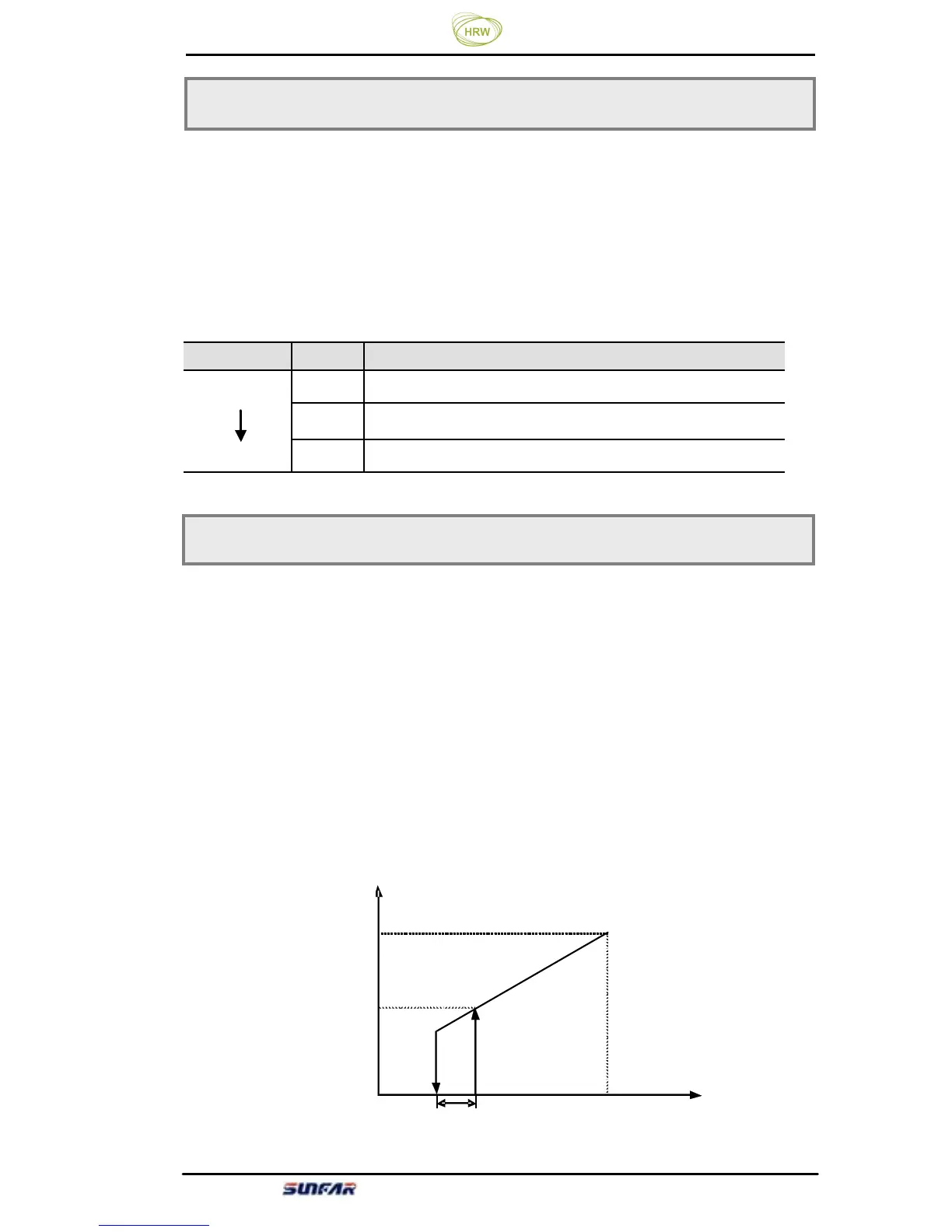

Figure 6-5 Sketch of the Function of Lower limiting frequency
实际设定频率
2Hz
F[ 0 . 04]
原始设定频率
F[0.03]
F[0.04]
Original set frequency
Actual set frequency
F [0.04]
F[0.03]
F[0.04]
F[0.04]
