Sungrow SG50CX-P2 User Manual

61

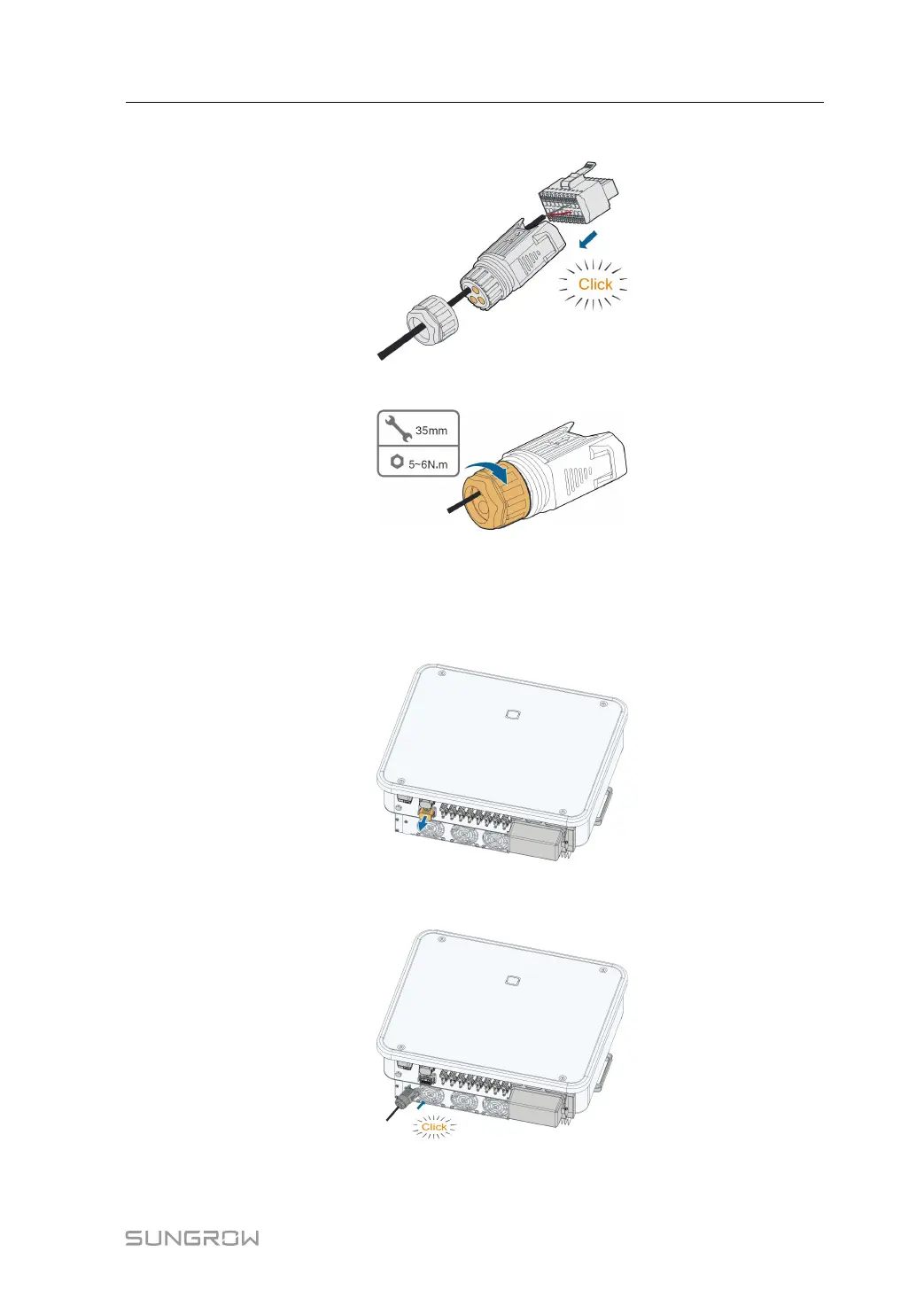

Step 7 Insert the terminal block into the connector until it snaps into place with an audible click.
Step 8 Fasten the swivel nut.
- - End
5.8.3.2 Installing the COM Connector
Step 1 Remove the waterproof lid from the COM2 terminal.
Step 2 Insert the COM connector into COM2 terminal on the bottom of the inverter until there is an
audible click.
- - End
User Manual 5 Electrical Connection

Sungrow SG50CX-P2 Specifications

General

Rated Power	50 kW
Max. DC Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of DC Input Terminals per MPPT	2
Rated AC Output Power	50 kW
Max. AC Output Power	55 kW
AC Nominal Voltage	400 V
AC Voltage Range	310 V - 480 V
AC Grid Frequency	50 Hz / 60 Hz
Grid Frequency Range	45 Hz - 55 Hz / 55 Hz - 65 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	I
Cooling Method	Smart Forced Air Cooling
Protection Degree	IP66
Maximum Efficiency	98.7%
Topology	Transformerless
Power Factor at Rated Power	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to +60°C
Communication	RS485, Ethernet
