User Manual 4 Mechanical Mounting
4.2.4 Clearance Requirements

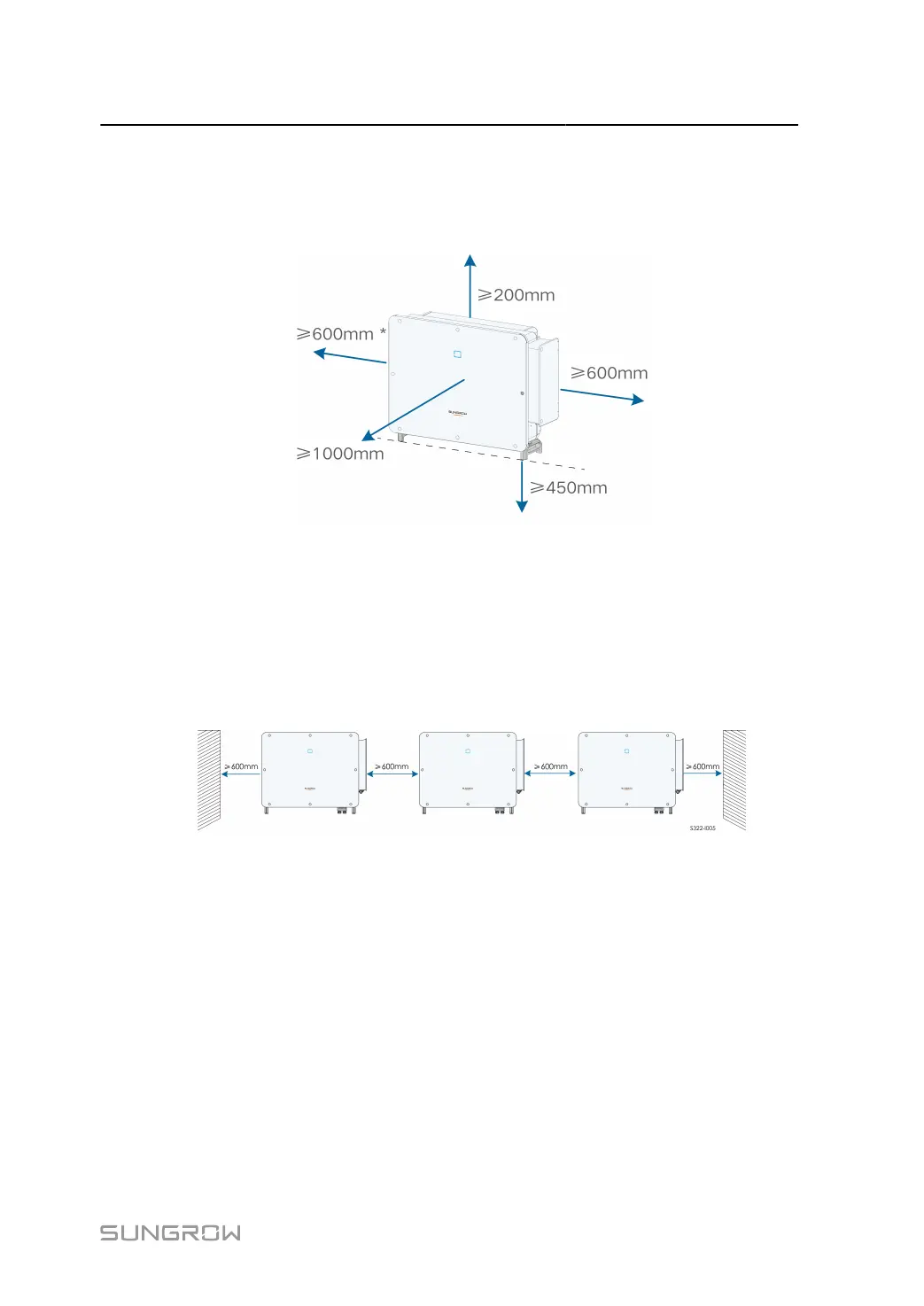

Spacing for installing an inverter
Reserve enough clearance around the inverter to ensure sufficient space for heat dissipation.
* In case this distance is less than the distance in the diagram, move the inverter from the
mounting-bracket or wall before maintaining fans.
Spacing for installing multiple inverters
In case of multiple inverters, reserve specific clearance between the inverters. For other instal
lation scenarios, please refer to the relevant technical documents on http://support.sungrow
power.com/.
Back to Back Installation
When installing inverters back-to-back, the distance between every two inverters should be
at least 600 mm.
Add a baffle between the two inverters to form a heat dissipation channel. The baffle plate
should be placed horizontally between two inverters and should not block the air outlet of
inverters.
