User Manual 5 Electrical Connection
step 4 Follow the foregoing steps to connect PV connectors of other PV strings.
step 5 Seal any unused PV terminal with a terminal cap.
- - End
5.8 Wiring of Tracking System Power Cable (optional)
step 1 Please refer to step 1 and step 2 in 5.6.3 Connection Procedure (For a multi-core cable).

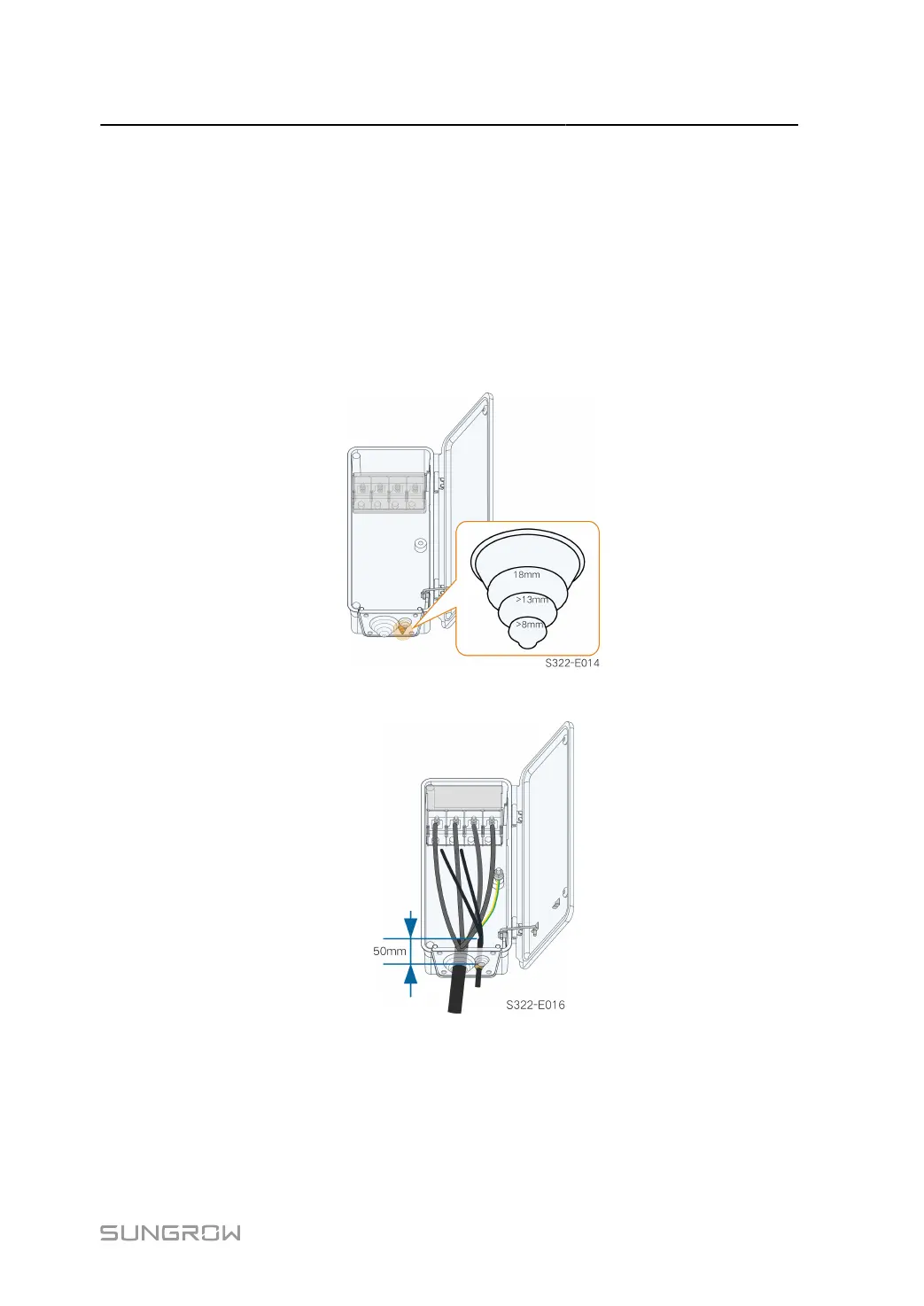

step 2 Cut off the excess part of sealing ring according to cable diameter.
step 3
Lead the cable through the seal ring.The length of unstripped cable in the AC junction box is 50mm.
step 4
Place the OT terminals of power cable for tracking system on the OT/DT terminals of the AC cable,
and secure them.
63
