2 Product Description User Manual
8
1 LCD display
Human-computer interface for viewing of the running
information and parameter configuration.
2
Electrical
connection area
Include DC terminal, AC terminal ad RS485
communication terminal.
3 Handles
Handles are designed for transporting, installing and
disassembling the inverter
4 PE second terminal
Specified in EN 50178, user can connect this terminal
as per requirements.
5
Controlled forced-air cooling method. Ensure well
ventilation.
Hang the inverter to the backplate.
3 fans used for inverter forced cooling
8 DC switch
Protective components to safely disconnect DC side
current.
2.2.2 Dimensions

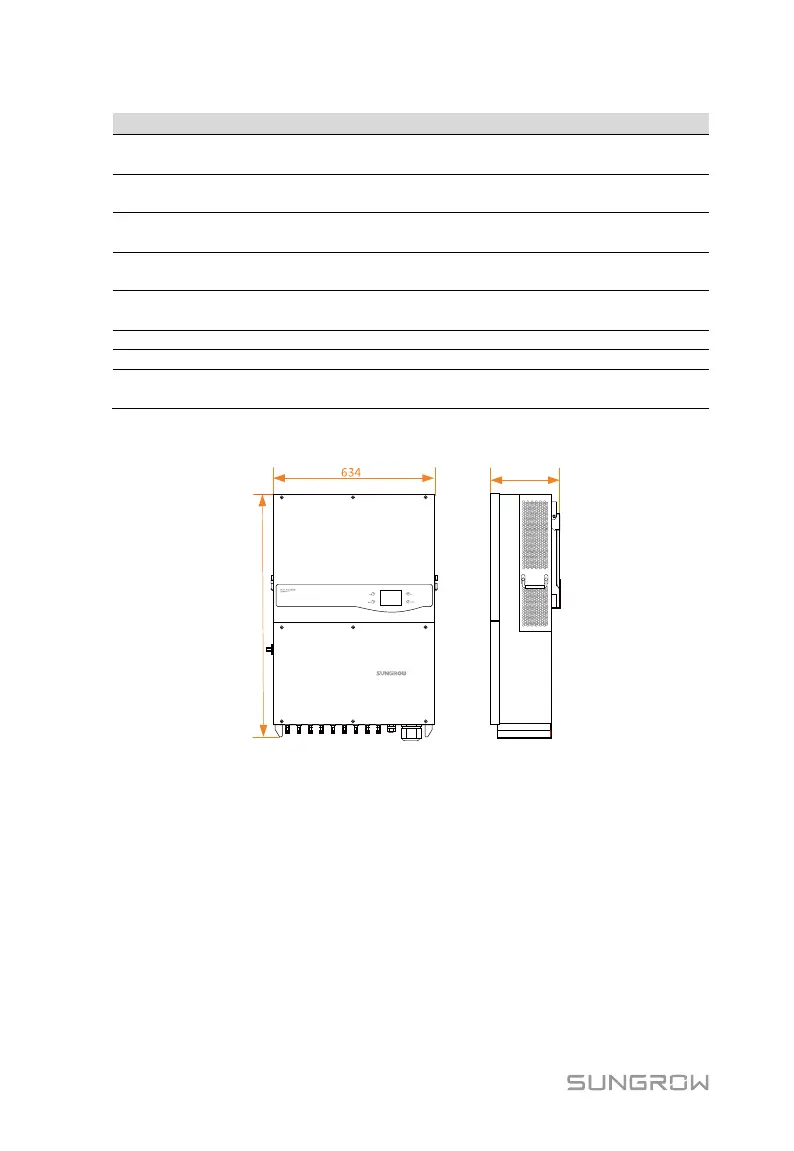

Fig. 2-3 Dimensions of the inverter (in mm)
2.2.3 LCD Display
As a human-computer interaction interface, LCD display comprises two LED
indicators and two buttons for user to check the inverter operation information and
configure inverter parameters.
