Sungrow SG80KTL User Manual

User Manual 6 Electrical Connection
41
+
-
+
DC
-
+
DC
-
+
-

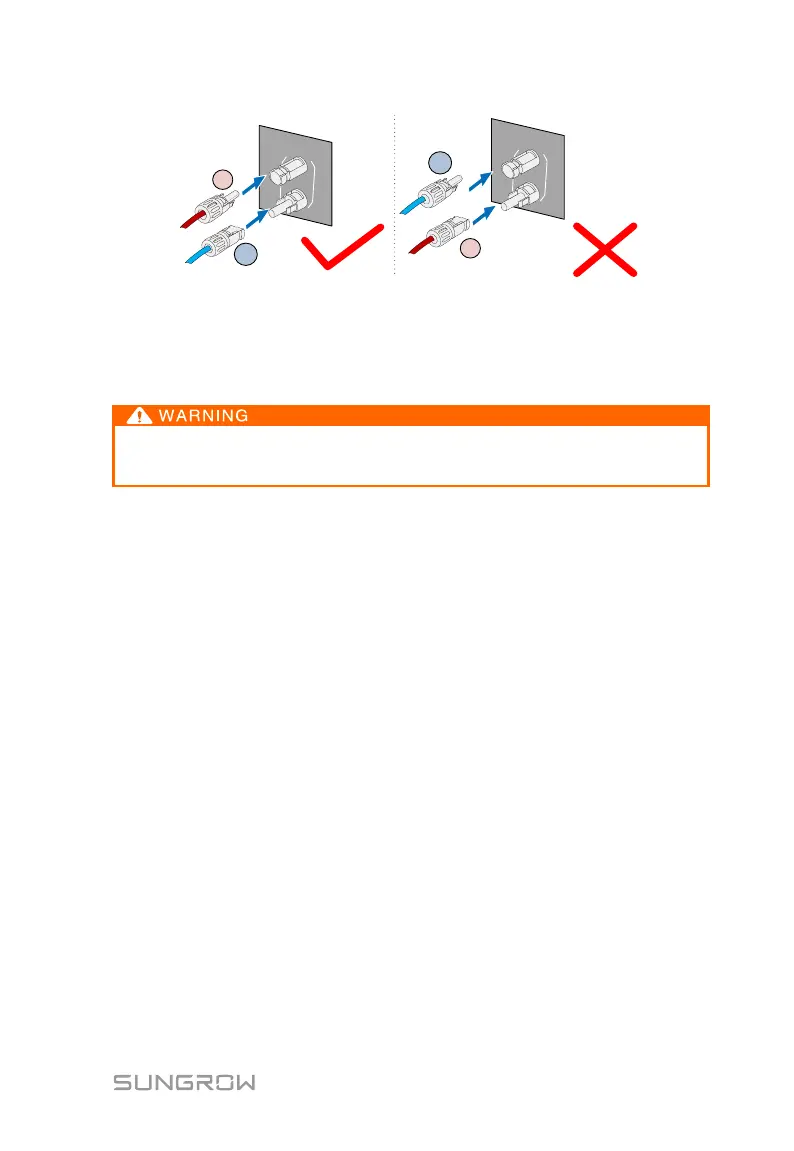

Step 11Seal the unused DC terminals with waterproof plugs.
6.4 Grounding the Inverter
Due to the transformer-less design of the inverter, neither the DC positive
pole nor the DC negative pole of the PV string can be grounded.
6.4.1 Grounding System Overview
In this PV system, all non-current carrying metal parts and device enclosure should
be grounded (such as the PV array frame and inverter enclosure).
When there is only one inverter in the PV system, ground the PE cable.
When there are multiple inverters in the PV system, they can be multi-point
grounded. Connect PE cables of all inverters and the mounting metal frames of PV
array to the equipotential cable (according to the on-site situation) to realize
equipotential connection.

Sungrow SG80KTL Specifications

General

Model	SG80KTL
Type	String Inverter
Protection Degree	IP65
Maximum AC Output Power	88 kVA
Operating Temperature Range	-25°C to +60°C
Rated Output Power	80 kVA
