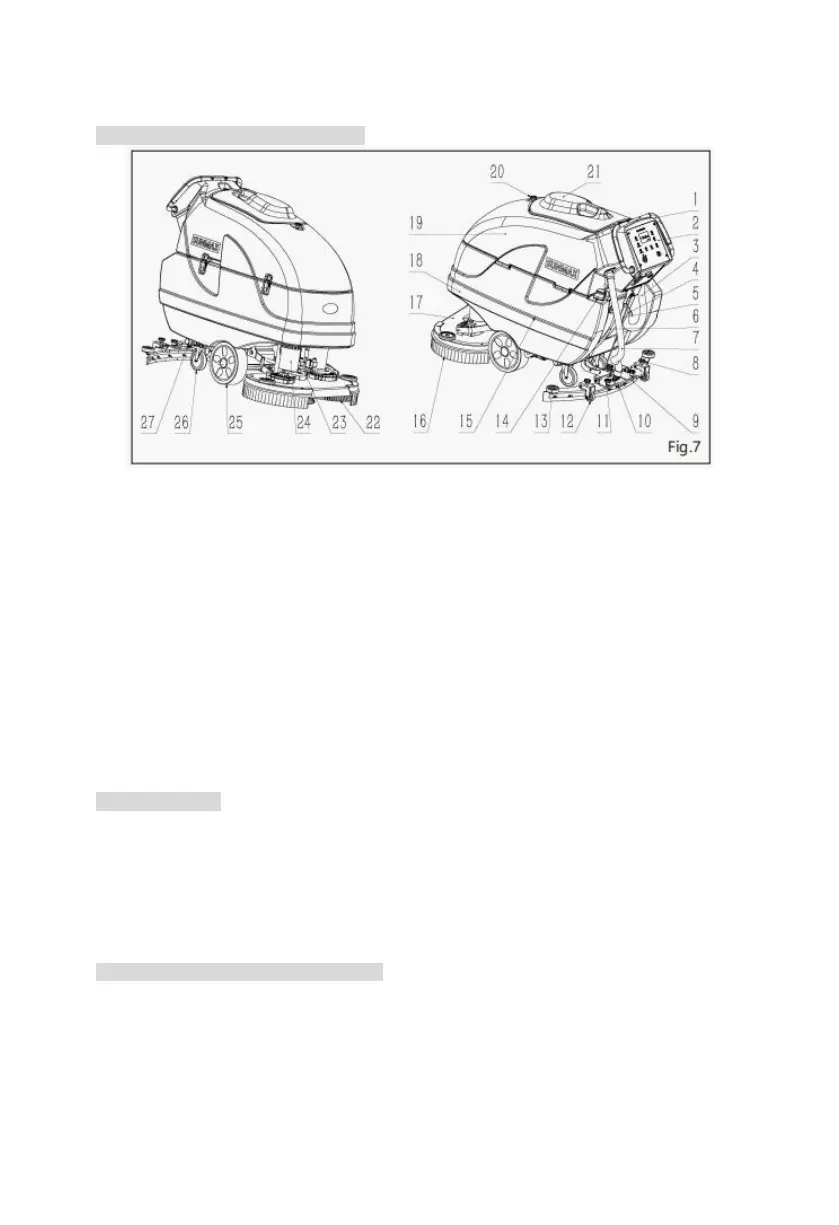

5. Machine Assembly Drawing (Fig. 7)
1. Handle
2. Control Panel
3. Drain Pipe of Sewage
Tank
4. Handle Rod of Suction
Scraper
5. Pull Rope of Suction
Scraper
6. Water Level Pipe of Clear
Water Tank
7. Sewage Suction Pipe
8. Height Adjustment Handle
of Suction Scraper
9. Suction Scraper
10. Angle Adjustment Handle
of Suction Scraper
11. Installation Handle of
Suction Scraper
12. Supporting Wheel
13. Anti-collision Wheel
14. Water Injection Port of
Clean Water Tank
15. Batteries
16. Brushes
17. Shield
18. Clean Water Tank
19. Sewage Tank
20. Handle of Tank Cover
21. Sewage Tank Cover
22. Brush Tray
23. Electromagnetic Control
Valve
24. Brush Tray Motor
25. Driving Wheel
26. Auxiliary Wheel
27. Filter
6. Battery Models
1. To start the machine, you must use maintenance-free batteries, sealed batteries with gel
technology, and other types of batteries are not allowed.
2. The battery must meet the following models and standards such as CEI EN 60254-1: 2005-12
(CEI 21-5) and CEI EN 60254-2: 2008-06 (CEI 21-7).
3. In order to obtain good performance of the machine, we recommend using the batteries in 12V-
120Ah/C5.
7. Maintenance and Disposal of Batteries
1. Please refer to the instructions of the battery supplier to keep and charge the batteries. The new
batteries should be fully charged before being used for the first time. The new batteries can be
deeply charged and discharged for 5 times.
2. Please pay attention to the choice of battery charger, because the model and capacity of battery
charger are different, please choose a professional charger.
