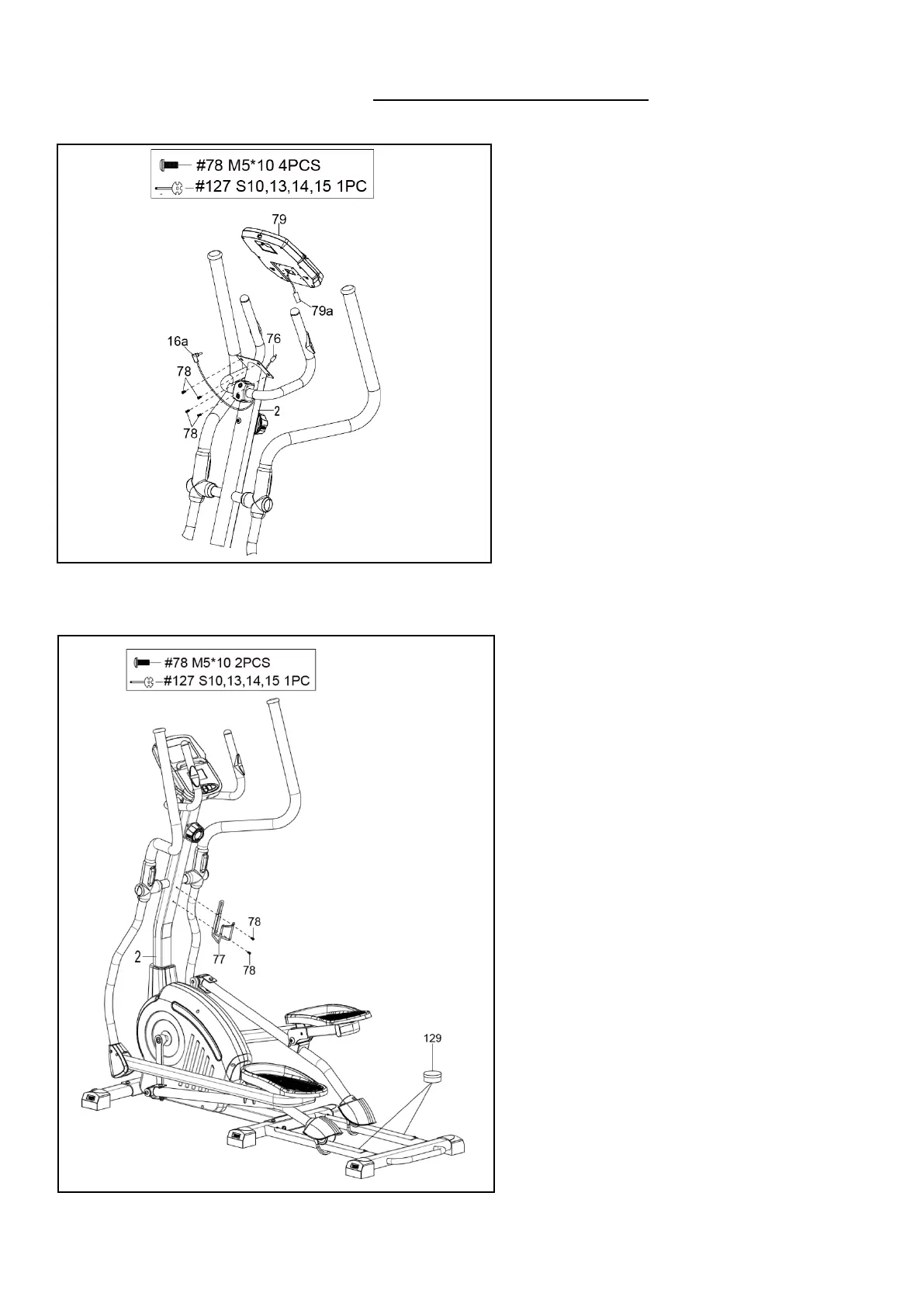

STEP 14:
Attach Bottle Holder (No. 77) to the Front
Post (No. 2) with 2 Screws (No. 78).
Tighten and secure with Spanner (No.
127).
Note: Please lubricate the Aluminum Rod
with the PTFE Lubricant (No. 129) if you
feel friction when exercising.
The assembly is complete!
STEP 13:
Remove 4 Screws (No. 78) from the back
of the Computer (No. 79) with the Spanner
(No. 127).
Connect the Extension Sensor Wire (No.
76) with Computer Wire (No. 79a). Then
insert them into the Front Post (No. 2).
Insert the Hand Pulse Sensor Wire (No.
16a) into the Pulse Input jack on the back of
Computer (No. 79).
Attach Computer (No. 79) to the top end of
the Front Post (No. 2) with 4 Screws (No.
78) that were removed. Tighten and secure
with Spanner (No. 127).
