10

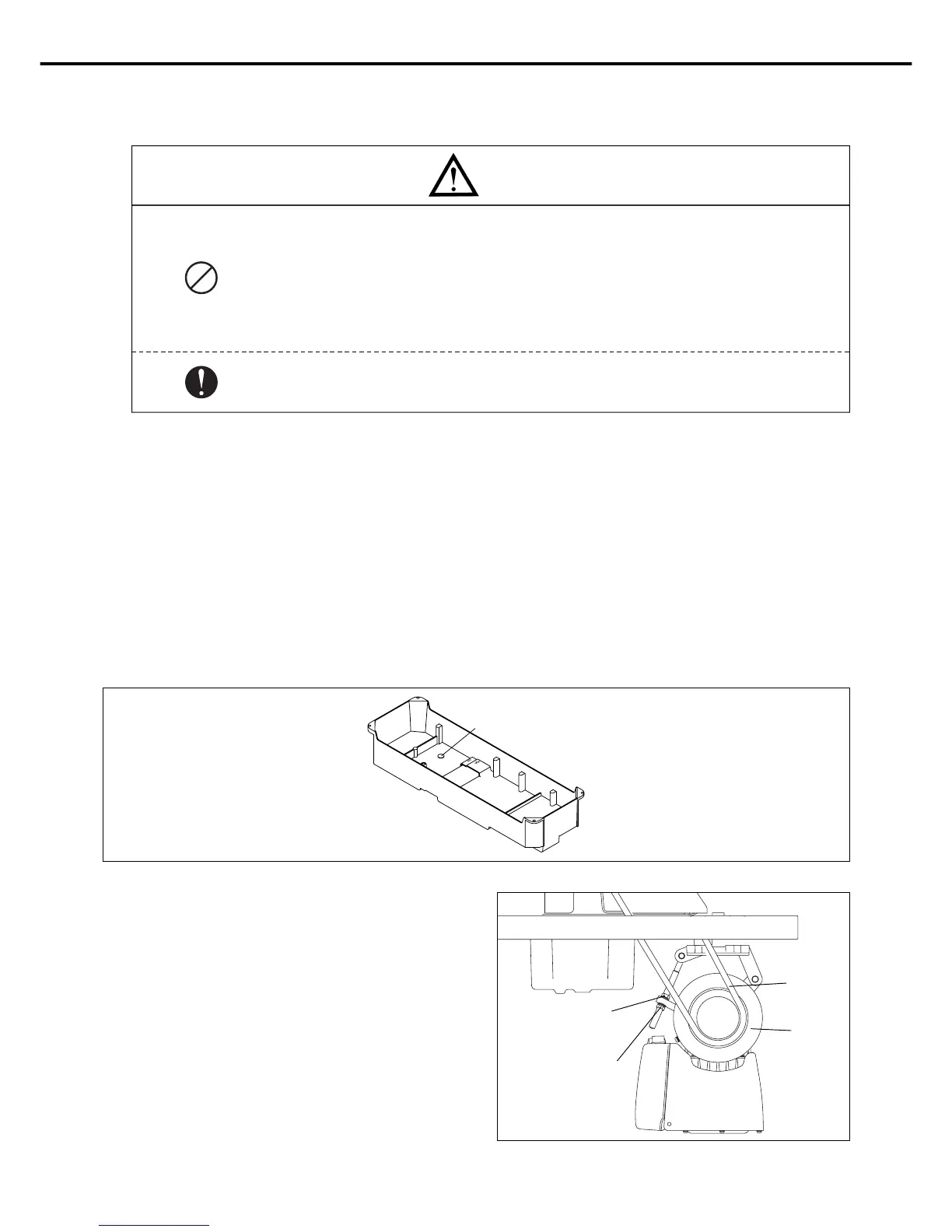

[Figure 3]
3) Oil supply
(1) Fitting the magnet to remove chips (iron powder).
Find the magnet for chip removal① in the accessory box and attach it to the oil pan as in “Figure 3.”
※ Do not use the magnet for other purposes. Operating the sewing machine without the magnets may cause malfunction
and adverse effects to its durability.
(2) Filling the oil pan with lubricants
A. Fill the lubricant up to the “H” point.
B. You should use the exclusive oil provided by “SUNSTAR” for industrial sewing machines or TELLUS C10” of the
Shell company.
C. If the oil lever drops to the “L” level, replenish it to the “H” point.
D. Change the lubricant once every two weeks.
4) Belt tension adjustment
After installing the motor, if you sufficiently loosen the
fixed nuts ① and ②, tension in the belt④ will occur
naturally because of the weight of the motor③. At this
moment, tighten the fixed nut① and use fixed nut ② to fix
it firmly. (See figure 4)
[Figure 4]
④
③
①
②
Caution
▶ Be sure to plug in after finishing oil supply.
If the user press on the step by mistake, the machine runs automatically. By doing so, it can
cause the physical injuries.
▶ In case of treating the lubricant, don't bring the lubricant into contact with eyes or the skin. Its
contact can cause an inflammation. And don't drink the lubricant. It can cause vomiting or
diarrhea. And Keep it out of the reach of the children.
▶ Be sure to run the machine after supplying oil in case you should start to run it for the first time,
or in case it has not been used for a long time.
①
